Corrosion Resistant Welded Gabion Fence With Hot Dip Galvanized And Galfan Coated Options
Gabion is very popular in construction with its stable structure, high flexibility and corrosion resistance. We can supply two kinds of gabion: welded gabion and woven gabion.
Welded gabion baskets are made of rugged welded wire mesh panels, which can not easily bulge out when filled with stones.
Welded gabion baskets have surface treatments of galvanized, PVC coated and Galfan coated, which made gabion baskets have anti-corrosion, anti-rust and anti-weather.

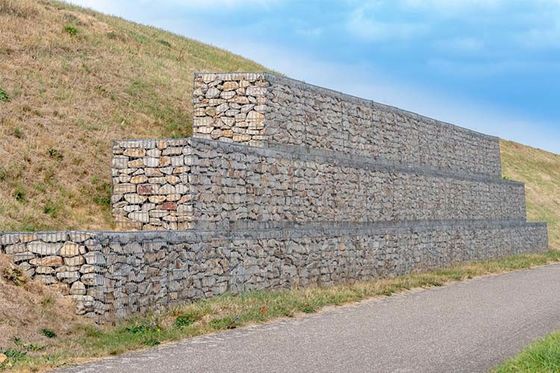

Welded gabion baskets can control soil erosion well and provide a neat and very pleasing appearance. So welded gabion baskets are popularly used in road protection and landscape construction.
The welded gabion basket details:
A) Panel: high quality galvanized panel of 50*50 or 75*75 mesh size
B) Sprial wires: good quality for same wire diameter as panel
C) Stifferens :4-8 stifferens per gabion, to make sure the gabion is more strong
| Type of welded Gabion |
Wire Gauge Diameter |
Mesh Size |
Gabion Size |
| Galvanized |
3-5mm |
50X50,75X75,50X100 |
2*1*1, 1*1*1,1*1*0.5,etc |
| PVC Coated |
3.0/3.8mm |
50X50,75X75,50X100 |
2*1*1, 1*1*1,2*1*0.5,etc |
| 95% Zinc + 5% Al |
3-5mm |
50X100,75X75,100X100 |
1*1*0.5,2*1*1,1*1*0.3etc |
The welded gabion basket connection details
1. U -clips
2. C-ring
3. Lacing wire connection
4. Hook connection
The sprial wires & hooks or stiffeners is most popular as it's more strong for usage
Welded gabion basket advantage:
1. Economic. Just fill the stone into the gabions and seal it.
2. Simple installation. No special technology needed.
3. Weather proof under natural destroy, corrosion resistant.
4. Sludge in the stones is good for plant growing. Mixed to form a integrity with thenatural environment.
5. Good permeation can prevent the damage by hydrostatic.
6. Less transport freight. It can be folded together for transport and further installation.
7. No collapse even under big scope of deforming.
