Gabion Basket Mesh for Flood Prevention Water Conservancy Projects CE ISO Certified

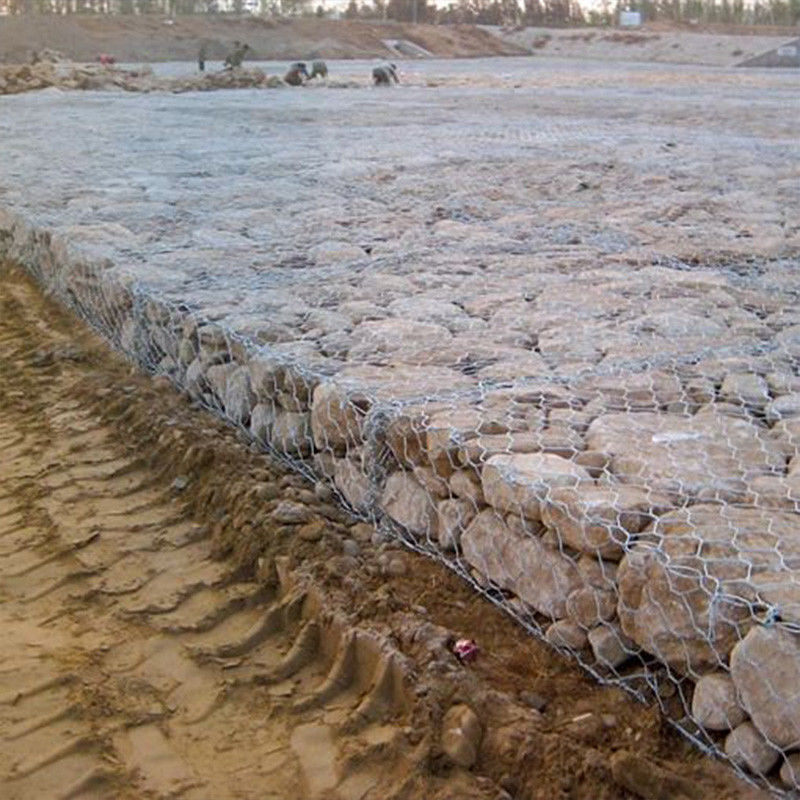

Large Image : Gabion Basket Mesh for Flood Prevention Water Conservancy Projects CE ISO Certified

Product Details:

Place of Origin:	CN
Brand Name:	KN
Certification:	CE ISO SGS COC PVOC
Model Number:	KN-gabion

Payment & Shipping Terms:

Minimum Order Quantity:	100 pc
Price:	USD 13-20
Packaging Details:	pallet
Delivery Time:	15 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 pc per day

Contact Now

Detailed Product Description

Product Name:	Gabion Basket Mesh For Flood Prevention Water Conservancy Projects CE ISO Certified	Key Words:	Gabion
Hole Shape:	Hexagonal	High Zinc Coating:	>220g/m2
Mesh Wire Diameter:	2.7mm	Feature:	No Easy To Corrosion
Sample:	Free	Mesh Shape:	Hexagonal
Highlight:	ce gabion , ce rock cage retaining wall , iso gabion

Gabion Basket Mesh for Flood Prevention Water Conservancy Projects CE ISO Certified

Product Overview

Woven Gabion Mesh Solutions

Heavy-duty hexagonal wire mesh engineered for superior erosion control and structural reinforcement. Made from corrosion-resistant galvanized or PVC-coated steel for long-term durability. Flexible yet strong design adapts to terrain while preventing soil loss.

Key Benefits:
✓ Excellent water permeability
✓ Eco-friendly construction
✓ Easy installation & low maintenance
✓ Custom sizes (2-4mm wire, 60-120mm mesh)

Ideal for: riverbanks, retaining walls, highways, and landscape architecture. Request your project quote today!

Key Features

Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

Civil Engineering: Riverbank stabilization, highway embankments
Architecture: Retaining walls, sound barriers, decorative façades
Disaster Prevention: Flood control barriers, landslide mitigation systems
Mining: Tailings dam reinforcement, slope retention

Customization Services

Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)

gabion specifications			Mesh hole modle
			8x10cm		6x8cm
Length(m)	Width(m)	Height(m)	Galvanized or PVC coated		Galvanized or PVC coated
			Mesh diameter	Zinc	Mesh diameter	Zinc
2	1	1	2.7mm	>245g/m²	2.0mm	>215g/m²
3	1	1	Side wire diameter	Zinc	Side wire diameter	Zinc
4	1	1	3.4mm	>265g/²	2.7mm	>245g/m²
6	1	1	Binding wire diameter of 2.7m		Binding wire diameter of 2.0m

Gabion Basket Mesh for Flood Prevention Water Conservancy Projects CE ISO Certified 0
