Heavy Duty Gabion Wall Hydraulic Engineering Slope Stabilization Zinc Coated

Heavy Duty Gabion Wall Hydraulic Engineering Slope Stabilization Zinc Coated

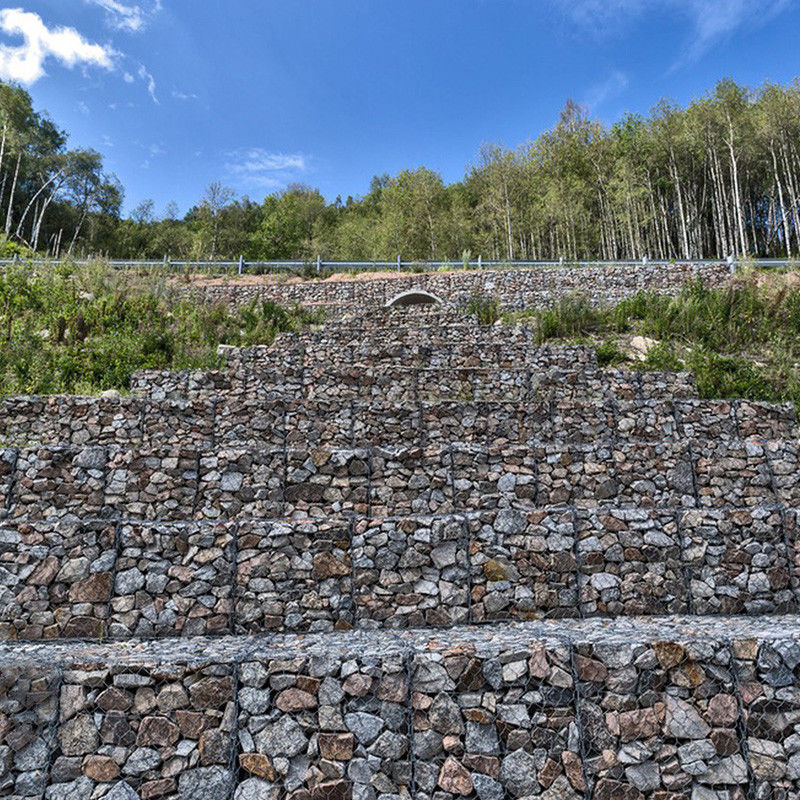

Woven Gabion Wall - Hydraulic Engineering Solution

Our heavy-duty woven gabion walls provide superior bank stabilization and erosion control for waterway projects. The double-twisted hexagonal steel mesh, filled with durable stone, creates flexible yet strong retaining structures ideal for:

• Riverbank protection

• Flood defense systems

• Canal lining

• Coastal erosion barriers

Constructed with corrosion-resistant galvanized or PVC-coated steel wires (2.0-4.0mm diameter) in 60-120mm mesh sizes. Permeable design reduces hydrostatic pressure while allowing natural vegetation growth. Engineered for long-term performance in wet environments with minimal maintenance. Custom configurations available for all hydraulic applications.

Key Features

• Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
• Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
• Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
• Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

• Civil Engineering: Riverbank stabilization, highway embankments
• Architecture: Retaining walls, sound barriers, decorative façades
• Disaster Prevention: Flood control barriers, landslide mitigation systems
• Mining: Tailings dam reinforcement, slope retention

Customization Services

• Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
• Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
• Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
