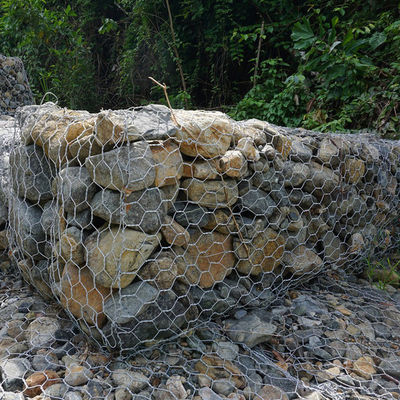

Professional Woven Gabion Wall for Water Conservancy Projects

Our industrial-grade woven gabion walls are engineered specifically for demanding hydraulic applications. The patented double-twist hexagonal weave construction provides exceptional tensile strength (350-500MPa) while maintaining necessary flexibility for ground movement. Key applications include:

• River training works
• Dam toe protection
• Spillway channel lining
• Bridge abutment protection

Manufactured using Class A galvanized steel (245g/m² coating) or Galfan-coated wire for superior corrosion resistance in freshwater and marine environments. Standard panel sizes (2m×1m×1m) with 80×100mm mesh optimize stone retention and hydraulic efficiency.

Key Features

• Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
• Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
• Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
• Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

• Civil Engineering: Riverbank stabilization, highway embankments
• Architecture: Retaining walls, sound barriers, decorative façades
• Disaster Prevention: Flood control barriers, landslide mitigation systems
• Mining: Tailings dam reinforcement, slope retention

Customization Services

• Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
• Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
• Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
