Galvanized Gabion Basket River Bank Flood Control Erosion Protection CE ISO

Galvanized Gabion Basket River Bank Flood Control Erosion Protection CE ISO

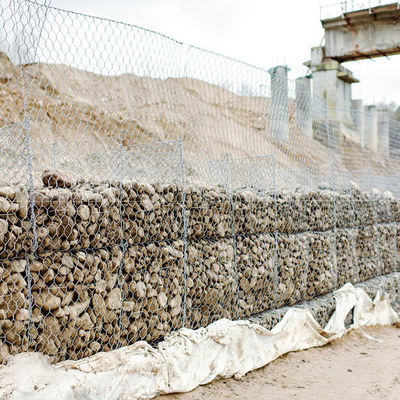

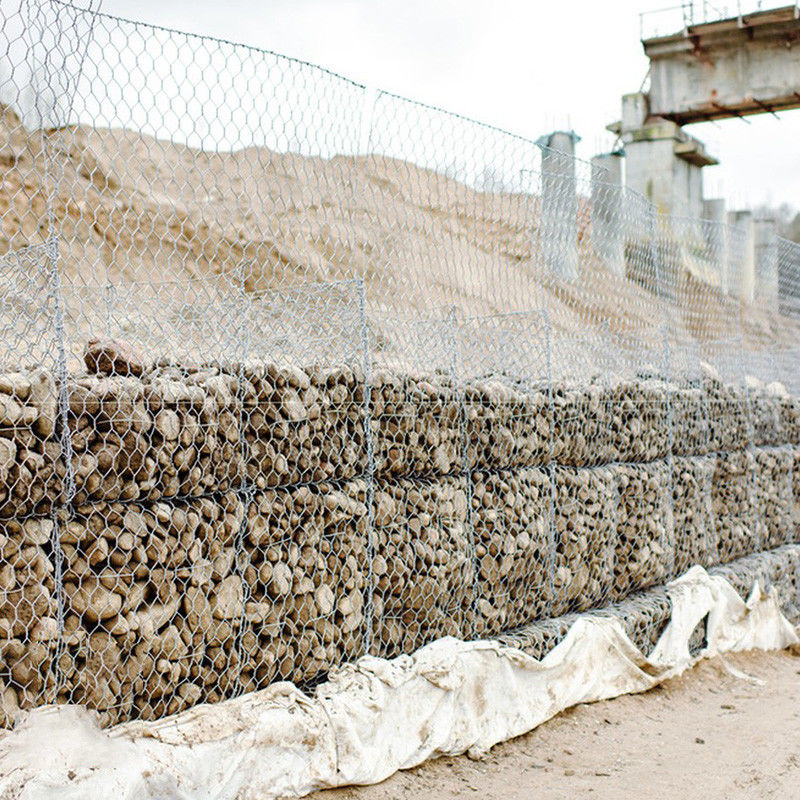

Woven Gabion Basket - Hydraulic Engineering Solution

Durable double-twisted hexagonal steel mesh baskets designed for water management projects. Ideal for riverbank protection, erosion control, and flood defense systems. Made from corrosion-resistant galvanized or PVC-coated steel wire (2.0-4.0mm) with 60-120mm mesh openings. Permeable structure reduces water pressure while stabilizing slopes. Easy to assemble, fill with local stone, and install. Custom sizes available for weirs, dams, and coastal applications. Long-lasting performance in wet environments.

Key Features

• Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
• Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
• Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
• Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

• Civil Engineering: Riverbank stabilization, highway embankments
• Architecture: Retaining walls, sound barriers, decorative façades
• Disaster Prevention: Flood control barriers, landslide mitigation systems
• Mining: Tailings dam reinforcement, slope retention

Customization Services

• Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
• Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
• Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
