Heavy Duty Pre Made Gabion Baskets Hydraulic Engineering Slope Stabilization Zinc Coated

Heavy Duty Gabion Basket Hydraulic Engineering Slope Stabilization Zinc Coated

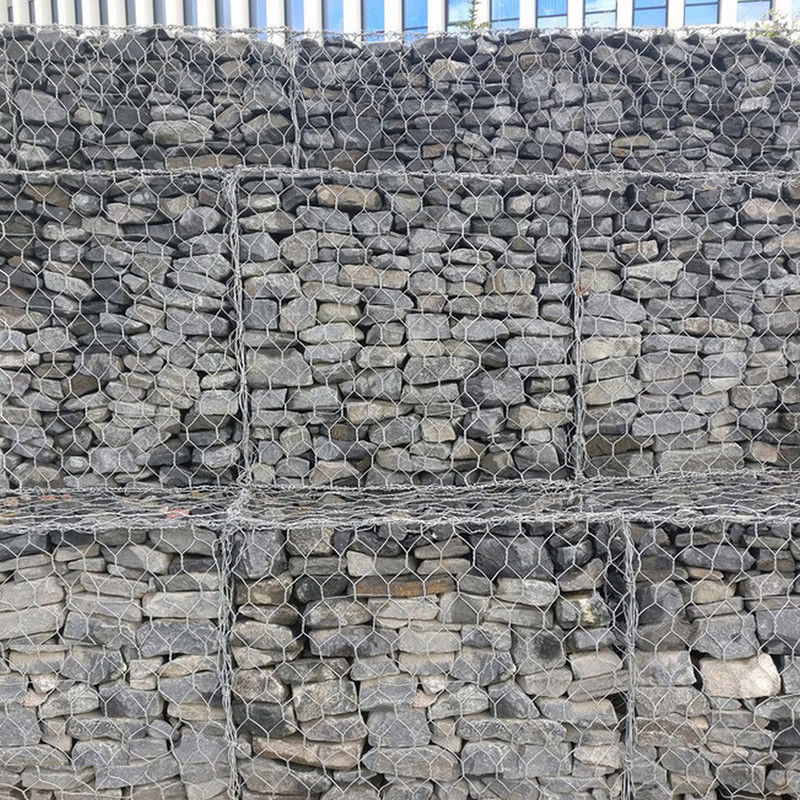

Woven Gabion Baskets for Hydraulic Engineering

Specially designed for water control projects, our heavy-duty woven gabion baskets provide reliable erosion protection and bank stabilization. The double-twisted hexagonal steel mesh construction offers superior strength and flexibility to withstand strong water currents. Made from corrosion-resistant galvanized or PVC-coated steel wires (2.0-4.0mm) with standard 80×100mm mesh openings. Perfect for:
• River training works
• Flood control barriers
• Coastal protection
• Dam construction

Features excellent permeability (90%+ water flow) and promotes natural sedimentation. Quick assembly and installation with local stone filling. Custom sizes available for all hydraulic applications.

Key Features

• Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
• Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
• Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
• Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

• Civil Engineering: Riverbank stabilization, highway embankments
• Architecture: Retaining walls, sound barriers, decorative façades
• Disaster Prevention: Flood control barriers, landslide mitigation systems
• Mining: Tailings dam reinforcement, slope retention

Customization Services

• Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
• Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
• Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
