1*1*1M Woven Gabion Basket Stone Cage For River Bank Protection

1*1*1M Woven Gabion Basket Stone Cage For River Bank Protection

Large Image :  1*1*1M Woven Gabion Basket Stone Cage For River Bank Protection

Product Details:
Place of Origin: China
Brand Name: KN
Certification: ISO CE
Model Number: KN-G03
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: USD 13-20
Packaging Details: Wooden pallets
Delivery Time: 7 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 3000000 sqm/month
Detailed Product Description
Product Name: Galvanized Gabion Basket Wire Diameter: 2.0-2.7mm
Aperture: 60*80;80*100;100*120... Material: Q195 Steel Wire Mesh
Assembly: Easily Assembled Key Words: Hot Galvanized Gabion Cage
Highlight:

river gabion

,

river rock cage retaining wall

,

river bank gabion

1*1*1M Woven Gabion Basket Stone Cage For River Bank Protection


Gabion description

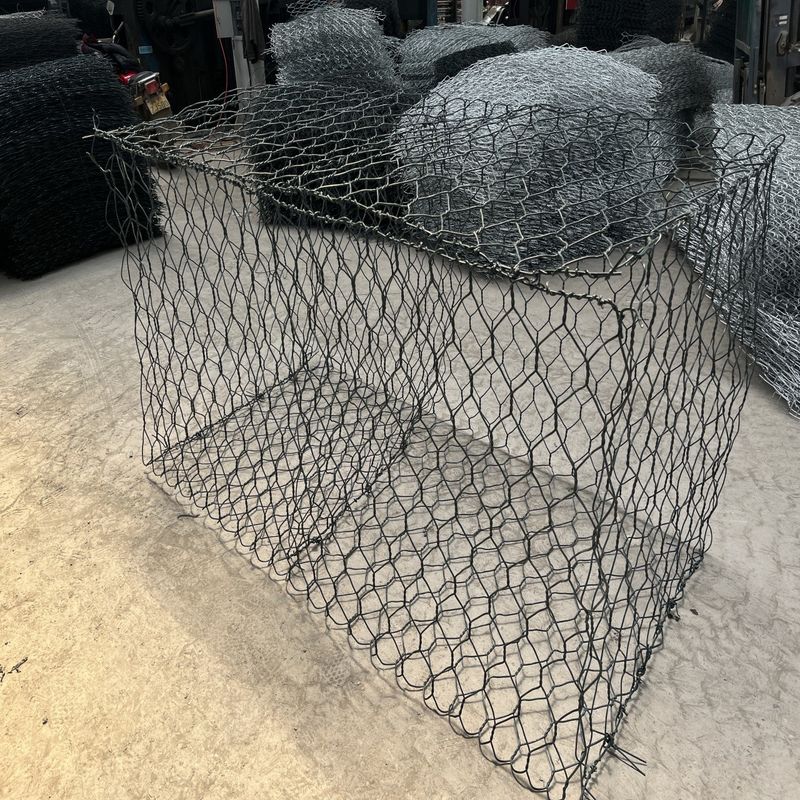

HEXAGONAL GABION BASKET is a container that made by weaving the wire into hexagonal mesh. hexagonal mesh gabion box has huge deform ability, so it can be easily amended on site to suit project requirements.mainly used for protecting river and dam from the losing of soil and water. Additional, the twisted structure can supply higher tensile strength to be used in the heavy duty applications.


Specifications

General Specifications
Gabion Box
Wire Diameter
Mesh Hole
Surface Treatment
Tensile strength
Hot dip galvanized
1x1x1m

2.0mm
2.2mm
2.5mm
2.7mm
3.0mm
3.5mm
4.0mm


60x80mm
70x90mm
80x100mm
100x120mm
Electro galvanized

Hot dip galvanized

Galfan coated
(Zinc-5%Al Aluminum)
(Zinc-10%Al Aluminum)

PVC coated


350-550Mpa

40-60g/m2,
220-300g/m2
(heavy galvanized)
2x1x1m
3x1x1m
4x1x1m
5x1x1m
6x2x0.3m
2x1x0.5m
3x1x0.5m
4x1x0.5m
5x1x0.5m
3x2x0.3m
Gabion application: can be widely used in flood controling,retaining wall,river bank protection,slope protection etc.
All sizes can customized according to your request.


Gabion material

Material introduction:
(1) Galvanized steel wire: high quality low carbon steel wire, the diameter of the steel wire2.0MM-4.0MM, the tensile strength of the steel wire is not less than 380Mpa, the surfaceof the steel wire is protected by hot dip galvanizing, the thickness of the galvanizedprotective layer is made according to customer requirements, and the maximum amountof galvanizing can reach 300g/m2.
(2)Zinc-5% aluminum (10% aluminum) -mixed rare earth alloy steel wire: ( also calledGolfan) steel wire, which is an international emerging a new material, corrosion resistanceis more than 3 times that of traditional pure galvanized, the diameter of the steel wire canreach 1.0MM-3.0MM, the tensile strength of the steel wire is not less than 1380Mpa.(3) pVC coated plastic: high-quality low carbon steel wire, a layer of PVC protective layer onthe surface of the steel wire, and then woven into various specifications of hexagonal nets.This layer of PVC protective layer will qreatly increase the protection in the highly pollutedenvironment, and through the choice of different colors, it can be integrated with thesurrounding environment.


1*1*1M Woven Gabion Basket Stone Cage For River Bank Protection 0
