Woven Gabion Cage River Bank Flood Control Erosion Protection Galvanized CE ISO

Woven Gabion Cage River Bank Flood Control Erosion Protection Galvanized CE ISO

Woven Gabion Cage - Hydraulic Engineering Solution

Engineered for water control projects, our heavy-duty woven gabion cages feature double-twisted hexagonal steel mesh (2.7-4.0mm wire) with hot-dip galvanized or PVC coating for superior corrosion resistance. The 80×100mm mesh structure provides optimal stone retention while maintaining 90%+ water permeability. Ideal for riverbank protection, flood control systems, and coastal erosion prevention, these flexible cages reduce flow velocity by 30-50% and accommodate ground movement. Certified to EN 10223-3 standards with 25+ year lifespan. Custom sizes available for critical hydraulic applications requiring durable, eco-friendly solutions.

Key Features

• Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
• Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
• Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
• Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

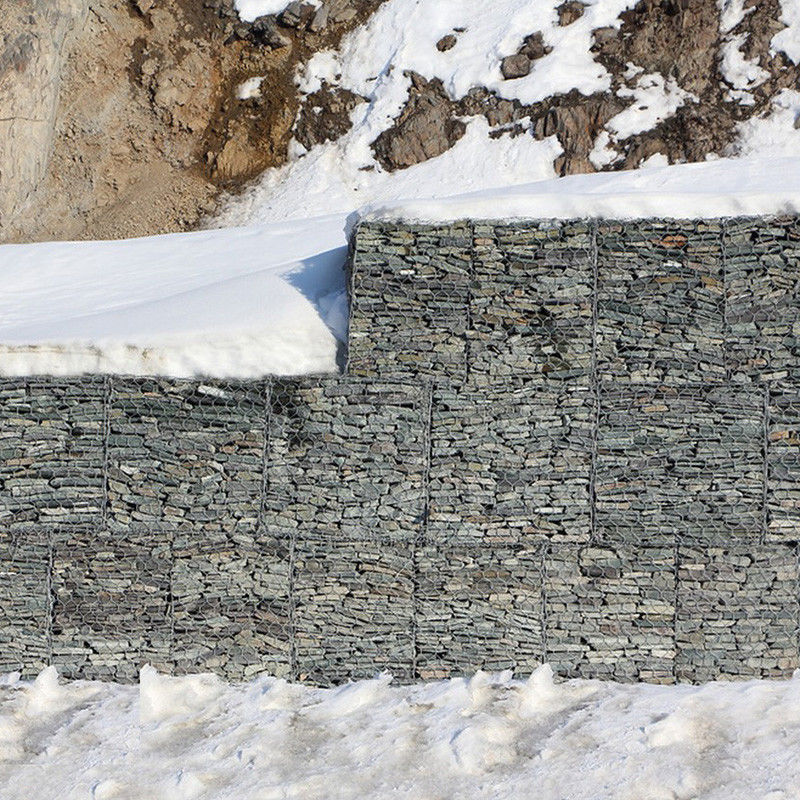

• Civil Engineering: Riverbank stabilization, highway embankments
• Architecture: Retaining walls, sound barriers, decorative façades
• Disaster Prevention: Flood control barriers, landslide mitigation systems
• Mining: Tailings dam reinforcement, slope retention

Customization Services

• Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
• Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
• Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
