Woven Gabion Cage Hydraulic Engineering Rockfall Barrier Heavy Duty Rustproof

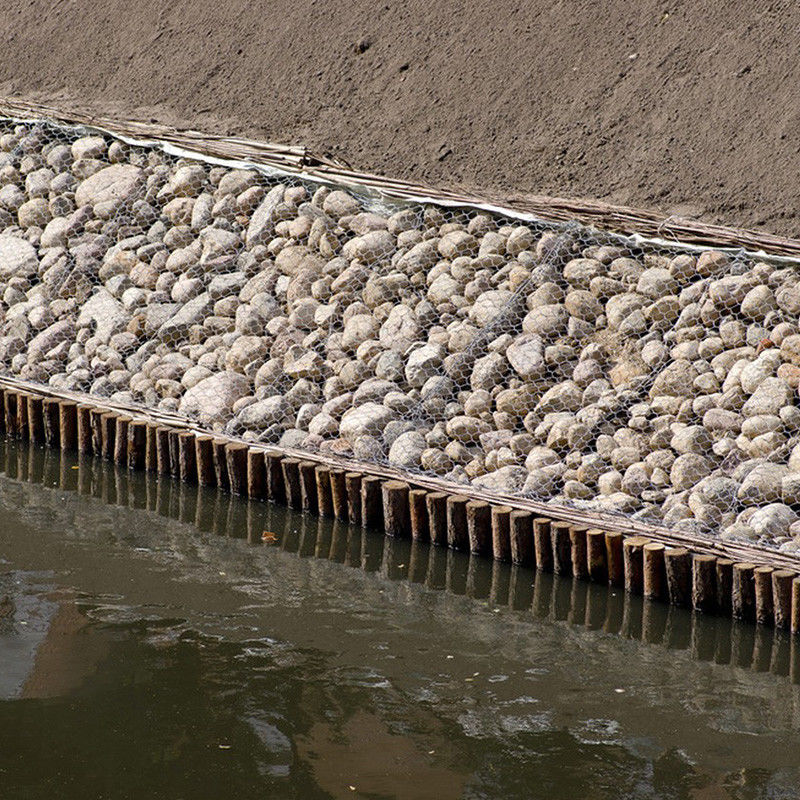

Large Image : Woven Gabion Cage Hydraulic Engineering Rockfall Barrier Heavy Duty Rustproof

Product Details:

Place of Origin:	CN
Brand Name:	KN
Certification:	CE ISO SGS COC PVOC
Model Number:	KN-gabion cage

Payment & Shipping Terms:

Minimum Order Quantity:	100 pc
Price:	USD 17-20
Packaging Details:	pallet
Delivery Time:	15 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 pc per day

Contact Now

Detailed Product Description

Features:	Durable, Flexible, Easy To Install	Application:	Erosion Control, Retaining Walls, River Bank Protection, Landscaping
Surface Treatment:	Hot-dipped Galvanized, PVC Coated	Mesh Size:	60x80mm, 80x100mm, 100x120mm
Size:	1x1x1m, 2x1x1m, 3x1x1m, 4x1x1m	Wire Diameter:	2.0-4.0mm
Material:	Galvanized Steel Wire	Edge Wire:	3.4mm
Product Name:	Woven Gabion Cage Hydraulic Engineering Rockfall Barrier Heavy Duty Rustproof	Key Words:	Gabion Cage
Highlight:	woven gabion cages , woven gabion basket , rockfall gabion cages

Woven Gabion Cage Hydraulic Engineering Rockfall Barrier Heavy Duty Rustproof

Professional Woven Gabion Cages for Hydraulic Protection

Specially designed for demanding water projects, our heavy-duty gabion cages feature reinforced double-twist hexagonal mesh construction with 3.0-4.5mm Class A galvanized steel wire (245g/m² coating). The optimized 80×100mm mesh geometry provides superior stone retention capacity while achieving 95% hydraulic permeability - effectively reducing flow velocity by 40-60%. Critical applications include river training works, dam face protection, and coastal revetments. Engineered to withstand 5m/s water velocity and accommodate 3% ground settlement. Includes internal diaphragms for structural integrity in large installations. Complies with international water engineering standards (EN 10223-3, ASTM A975). Custom fabrication available for specialized hydraulic requirements.

Key Features

Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

Civil Engineering: Riverbank stabilization, highway embankments
Architecture: Retaining walls, sound barriers, decorative façades
Disaster Prevention: Flood control barriers, landslide mitigation systems
Mining: Tailings dam reinforcement, slope retention

Customization Services

Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)

gabion specifications			Mesh hole modle
			8x10cm		6x8cm
Length(m)	Width(m)	Height(m)	Galvanized or PVC coated		Galvanized or PVC coated
			Mesh diameter	Zinc	Mesh diameter	Zinc
2	1	1	2.7mm	>245g/m²	2.0mm	>215g/m²
3	1	1	Side wire diameter	Zinc	Side wire diameter	Zinc
4	1	1	3.4mm	>265g/²	2.7mm	>245g/m²
6	1	1	Binding wire diameter of 2.7m		Binding wire diameter of 2.0m
