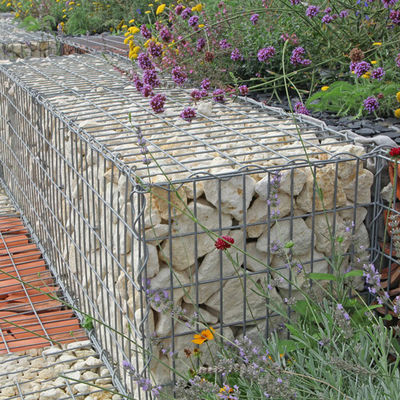

Galvanized Welded Gabion Box - Timeless Landscape Element
Our heavy-duty welded gabion boxes feature precision-welded steel mesh with durable hot-dip galvanized coating (minimum 260g/m²), offering superior corrosion resistance for outdoor applications. The clean-lined geometric design creates modern planters, retaining walls, and decorative garden features that beautifully showcase natural stone, timber, or drought-resistant plants. The zinc-coated finish develops a natural patina over time while maintaining structural integrity. Ideal for high-end residential gardens, commercial landscapes, and public spaces seeking low-maintenance, architecturally striking elements. Standard sizes (1×1×1m) available with custom dimensions for unique design requirements.
The welded gabion basket details:
A) Panel: high quality galvanized panel of 50*50 or 75*75 mesh size
B) Sprial wires: good quality for same wire diameter as panel
C) Stifferens :4-8 stifferens per gabion, to make sure the gabion is more strong
| Type of welded Gabion |
Wire Gauge Diameter |
Mesh Size |
Gabion Size |
| Galvanized |
3-5mm |
50X50,75X75,50X100 |
2*1*1, 1*1*1,1*1*0.5,etc |
| PVC Coated |
3.0/3.8mm |
50X50,75X75,50X100 |
2*1*1, 1*1*1,2*1*0.5,etc |
| 95% Zinc + 5% Al |
3-5mm |
50X100,75X75,100X100 |
1*1*0.5,2*1*1,1*1*0.3etc |
The welded gabion basket connection details
1. U -clips
2. C-ring
3. Lacing wire connection
4. Hook connection
The sprial wires & hooks or stiffeners is most popular as it's more strong for usage
Welded gabion basket advantage:
1. Economic. Just fill the stone into the gabions and seal it.
2. Simple installation. No special technology needed.
3. Weather proof under natural destroy, corrosion resistant.
4. Sludge in the stones is good for plant growing. Mixed to form a integrity with thenatural environment.
5. Good permeation can prevent the damage by hydrostatic.
6. Less transport freight. It can be folded together for transport and further installation.
7. No collapse even under big scope of deforming.
