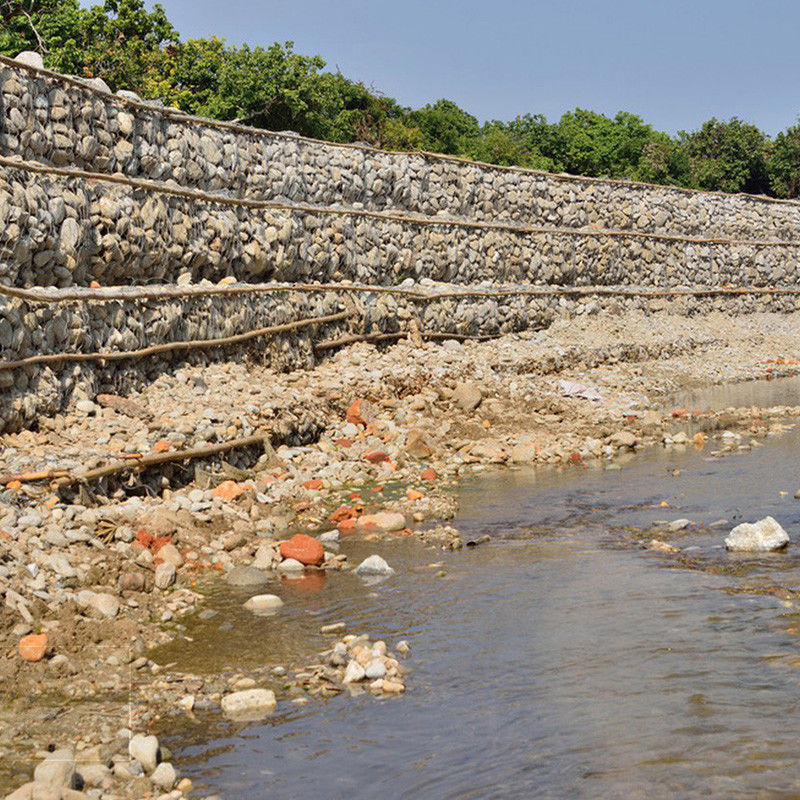

Woven Gabion Mattress Riverbed Stabilization Erosion Control Heavy Duty Zinc Coated

Woven Gabion Mattress Riverbed Stabilization Erosion Control Heavy Duty Zinc Coated

Woven Gabion Mattress for Hydraulic Engineering

Our woven gabion mattresses feature double-twisted hexagonal steel mesh (2.2-3.0mm wire) with heavy galvanization (≥260g/m²) for superior erosion protection in shallow water applications. The low-profile design (150-300mm height) with 60×80mm mesh provides optimal velocity reduction (30-50%) while permitting 90%+ water flow. Ideal for channel lining, riverbed stabilization, and coastal revetments. The flexible structure conforms to uneven surfaces while resisting 4m/s currents. Includes internal diaphragms for stability. Certified to EN 10223-3 standards with 25+ year design life. Custom sizes available for comprehensive hydraulic solutions.

Key Features

• Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
• Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
• Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
• Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

• Civil Engineering: Riverbank stabilization, highway embankments
• Architecture: Retaining walls, sound barriers, decorative façades
• Disaster Prevention: Flood control barriers, landslide mitigation systems
• Mining: Tailings dam reinforcement, slope retention

Customization Services

• Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
• Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
• Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
