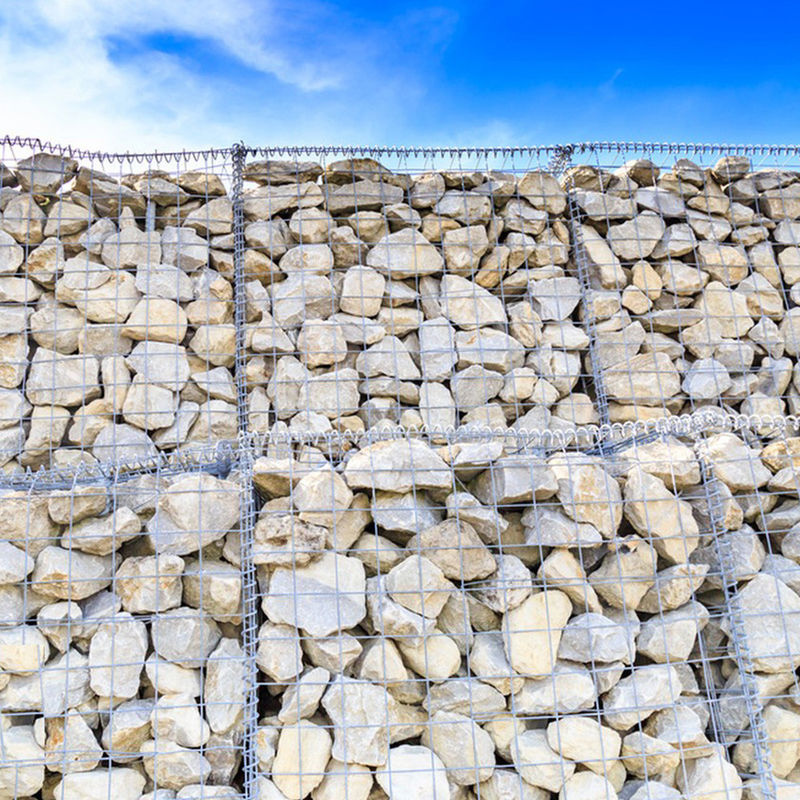

Welded Gabion Box Modern Garden Wall Rustproof Steel Custom Sizes Landscaping
Galvanized Welded Gabion Mattress for Landscape Design
Crafted from heavy-duty galvanized steel mesh, our welded gabion mattresses offer a sleek, modern solution for garden terraces, water features, and decorative ground covers. The precision-welded square grid (typically 50×50mm or 100×100mm) creates clean geometric patterns when filled with stone, glass, or wood elements. The zinc-coated finish provides durable corrosion resistance while maintaining a contemporary metallic aesthetic. Ideal for creating low-profile retaining walls (200-400mm height), garden pathways, or unique patio surfaces. Standard panels (2m×1m) allow for easy installation in residential and commercial landscapes. The rigid welded structure ensures long-term stability with minimal maintenance.
The welded gabion basket details:
A) Panel: high quality galvanized panel of 50*50 or 75*75 mesh size
B) Sprial wires: good quality for same wire diameter as panel
C) Stifferens :4-8 stifferens per gabion, to make sure the gabion is more strong
| Type of welded Gabion |
Wire Gauge Diameter |
Mesh Size |
Gabion Size |
| Galvanized |
3-5mm |
50X50,75X75,50X100 |
2*1*1, 1*1*1,1*1*0.5,etc |
| PVC Coated |
3.0/3.8mm |
50X50,75X75,50X100 |
2*1*1, 1*1*1,2*1*0.5,etc |
| 95% Zinc + 5% Al |
3-5mm |
50X100,75X75,100X100 |
1*1*0.5,2*1*1,1*1*0.3etc |
The welded gabion basket connection details
1. U -clips
2. C-ring
3. Lacing wire connection
4. Hook connection
The sprial wires & hooks or stiffeners is most popular as it's more strong for usage
Welded gabion basket advantage:
1. Economic. Just fill the stone into the gabions and seal it.
2. Simple installation. No special technology needed.
3. Weather proof under natural destroy, corrosion resistant.
4. Sludge in the stones is good for plant growing. Mixed to form a integrity with thenatural environment.
5. Good permeation can prevent the damage by hydrostatic.
6. Less transport freight. It can be folded together for transport and further installation.
7. No collapse even under big scope of deforming.
