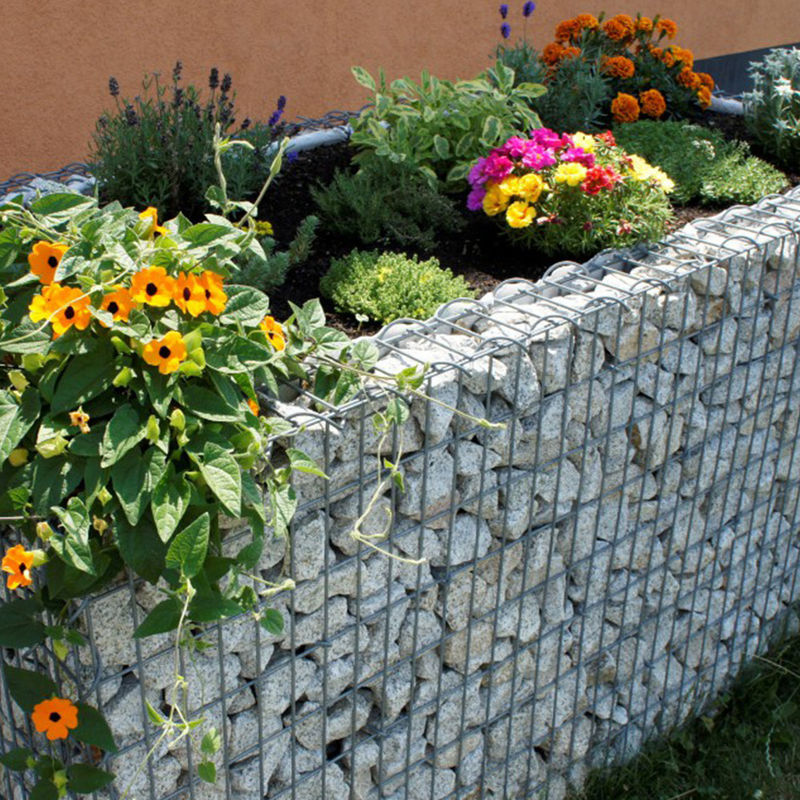

Welded Gabion Box Tiered Planter Sustainable Drainage Rust Resistant Garden Sculpture
Galvanized Welded Gabion Mattress - Contemporary Landscape Solution
Featuring precision-welded square steel mesh with durable hot-dip galvanized coating, our gabion mattresses create sleek, low-profile designs for modern gardens. The rigid 50×50mm or 75×75mm grid (2-4mm wire) beautifully displays decorative stones, pebbles or glass aggregates in shallow applications (150-300mm depth). Perfect for crafting elegant garden pathways, water feature surrounds, terrace transitions, and decorative ground covers. TStandard 2m×1m panels allow quick installation of these architecturally striking landscape elements.
The welded gabion basket details:
A) Panel: high quality galvanized panel of 50*50 or 75*75 mesh size
B) Sprial wires: good quality for same wire diameter as panel
C) Stifferens :4-8 stifferens per gabion, to make sure the gabion is more strong
| Type of welded Gabion |
Wire Gauge Diameter |
Mesh Size |
Gabion Size |
| Galvanized |
3-5mm |
50X50,75X75,50X100 |
2*1*1, 1*1*1,1*1*0.5,etc |
| PVC Coated |
3.0/3.8mm |
50X50,75X75,50X100 |
2*1*1, 1*1*1,2*1*0.5,etc |
| 95% Zinc + 5% Al |
3-5mm |
50X100,75X75,100X100 |
1*1*0.5,2*1*1,1*1*0.3etc |
The welded gabion basket connection details
1. U -clips
2. C-ring
3. Lacing wire connection
4. Hook connection
The sprial wires & hooks or stiffeners is most popular as it's more strong for usage
Welded gabion basket advantage:
1. Economic. Just fill the stone into the gabions and seal it.
2. Simple installation. No special technology needed.
3. Weather proof under natural destroy, corrosion resistant.
4. Sludge in the stones is good for plant growing. Mixed to form a integrity with thenatural environment.
5. Good permeation can prevent the damage by hydrostatic.
6. Less transport freight. It can be folded together for transport and further installation.
7. No collapse even under big scope of deforming.
