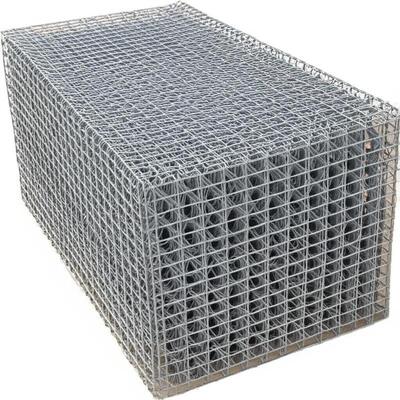

Galvanized Retaining Wall Gabion Box Wall Hexagonally Woven Gabon Baskets

Large Image : Galvanized Retaining Wall Gabion Box Wall Hexagonally Woven Gabon Baskets

Product Details:

Place of Origin:	China
Brand Name:	KN
Certification:	ISO CE
Model Number:	KN-G05

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	USD 13-20
Packaging Details:	Wooden pallets
Delivery Time:	7 days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	3000000sqm/month

Contact Now

Detailed Product Description

Product Name:	Gabion Basket	Material:	Q 195 Steel Wire
Surface Treatment:	Hot Galvanized	Wire Diameter:	2.0-2.7mm
Wire Gauge:	2.0-4.0mm	Assembly:	Easily Assembled
Feature:	Strong And Durable	Flexibility:	Able To Withstand Ground Movement
Aperture:	6080;80100;100*120;...	Key Words:	Gabion Stone Cage
Highlight:	Galvanized gabion box wall , gabion baskets for retaining walls , woven gabon baskets

Galvanized Retaining Wall Gabion Box Hexagonally Woven Gabon Baskets

Production description

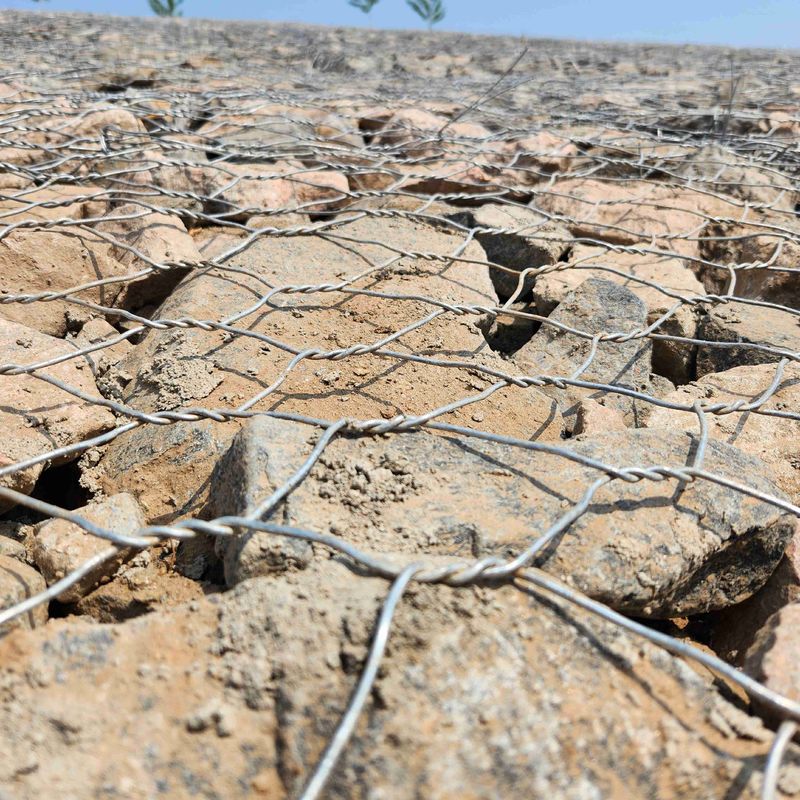

(1)Filled with stones and soil, the gabion box will provide a layer for plants to grow in. Initially, the wire mesh is needed to keep a steady structure; later the void between the stones will be filled with silt and plant roots which act as a bonding agent for the stones. With the help of the woven box, we get a natural barrier to avoid water and soil loss.

(2)The permeable structure of gabion box allows the water to seep through while retaining the soil to the filled stones, therefore no additional drainage is required to relieve the hydrostatic pressures.

(3)The double-twist hexagonal mesh construction permits it to tolerate differential settlement without fracture. This feature is especially important when the structure is on unstable soil conditions.

(4)Gabion box is economical for several reasons. First, it needs little maintenance; Second, no skilled labor is required when it comes to installation and stone fill is available wherever there are stones. Third, gabions are porous, requiring no costly drainage provision.

Detailed sizes

Customized size is acceptable.

Aperture (mm)	Wire Diameter (mm)	Pvc Coated Wire Diameter Inner/outer (mm)	Gabion Basket Size(m)	Gabion Mattress Size(m)
60x80	φ2.0-2.8	φ2.0/3.0-2.8/3.8	1x1x0.5m 1x1x1m 2x1x0.5m 2x1x1m 3x1x0.5m 3x1x1m 4x1x0.5m 4x1x1m available custom	1x1x0.3m 2x1x0.3m 3x1x0.3m 4x1x0.3m 4x2x0.3m 6x2x0.3m available custom
80x100	φ2.2-3.2	φ2.2/3.2-3.0/4.0
80x120	φ2.2-3.2	φ2.2/3.2-3.0/4.0
100x120	φ2.4-3.5	φ2.4/3.4-3.2/4.2
100x150	φ2.4-3.5	φ2.4/3.4-3.2/4.2
120x150	φ2.7-4.0	φ2.7/3.7-3.5/4.5

Application

Application of Hexagonal Gabion:

· Control and guide rivers and floods · Flood discharge and diversion dams

· Rock fall protection · Preventing soil erosion

· Bridge protection · Soil fixation structure

· Coastal Defense Engineering · Port Engineering

· Retaining wall · Road protection
