Welded Gabion Planter Modular Vertical Garden Rustproof Steel Custom Sizes

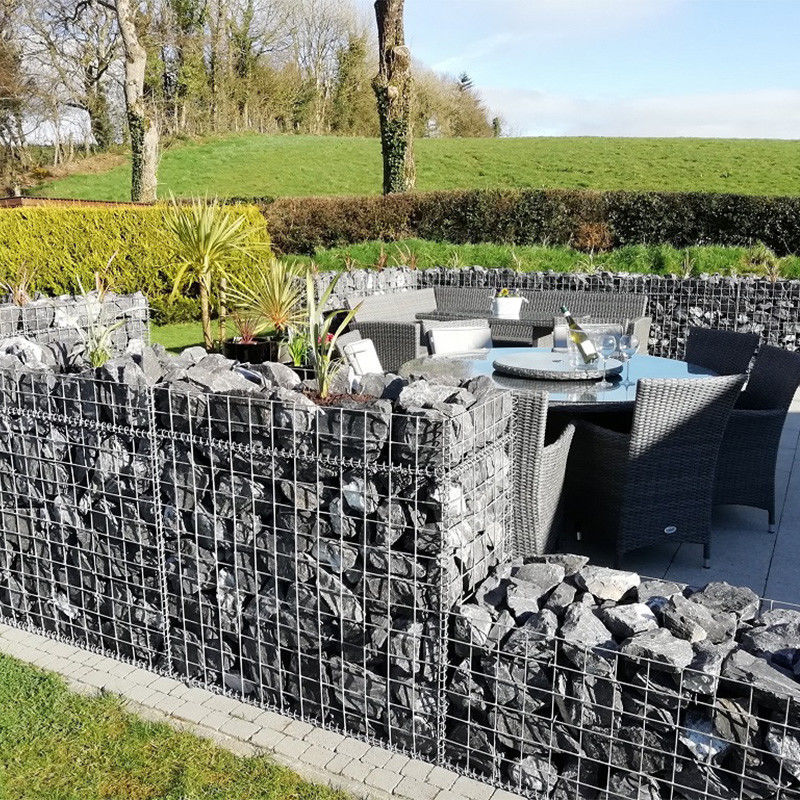

Galvanized Welded Gabion Planter - Contemporary Garden Feature
Crafted from heavy-duty hot-dip galvanized steel mesh, our welded gabion planters combine industrial durability with modern aesthetics. The precision-welded square grid (typically 50×50mm) creates a clean framework for showcasing stone fills or drought-resistant plants. The zinc coating provides decades of corrosion resistance while developing a natural weathered patina. Ideal for urban gardens, rooftop terraces, and commercial landscapes seeking low-maintenance, architectural planters. Standard sizes (60×60×60cm to 120×60×80cm) available, with optional internal lining for soil containment. The rigid welded construction ensures structural integrity for freestanding or stacked arrangements.
The welded gabion basket details:
A) Panel: high quality galvanized panel of 50*50 or 75*75 mesh size
B) Sprial wires: good quality for same wire diameter as panel
C) Stifferens :4-8 stifferens per gabion, to make sure the gabion is more strong
| Type of welded Gabion |
Wire Gauge Diameter |
Mesh Size |
Gabion Size |
| Galvanized |
3-5mm |
50X50,75X75,50X100 |
2*1*1, 1*1*1,1*1*0.5,etc |
| PVC Coated |
3.0/3.8mm |
50X50,75X75,50X100 |
2*1*1, 1*1*1,2*1*0.5,etc |
| 95% Zinc + 5% Al |
3-5mm |
50X100,75X75,100X100 |
1*1*0.5,2*1*1,1*1*0.3etc |
The welded gabion basket connection details
1. U -clips
2. C-ring
3. Lacing wire connection
4. Hook connection
The sprial wires & hooks or stiffeners is most popular as it's more strong for usage
Welded gabion basket advantage:
1. Economic. Just fill the stone into the gabions and seal it.
2. Simple installation. No special technology needed.
3. Weather proof under natural destroy, corrosion resistant.
4. Sludge in the stones is good for plant growing. Mixed to form a integrity with thenatural environment.
5. Good permeation can prevent the damage by hydrostatic.
6. Less transport freight. It can be folded together for transport and further installation.
7. No collapse even under big scope of deforming.
