Welded Gabion Planter Contemporary Garden Art Rust Resistant Modular Design
Galvanized Welded Gabion - Modern Landscape Solution

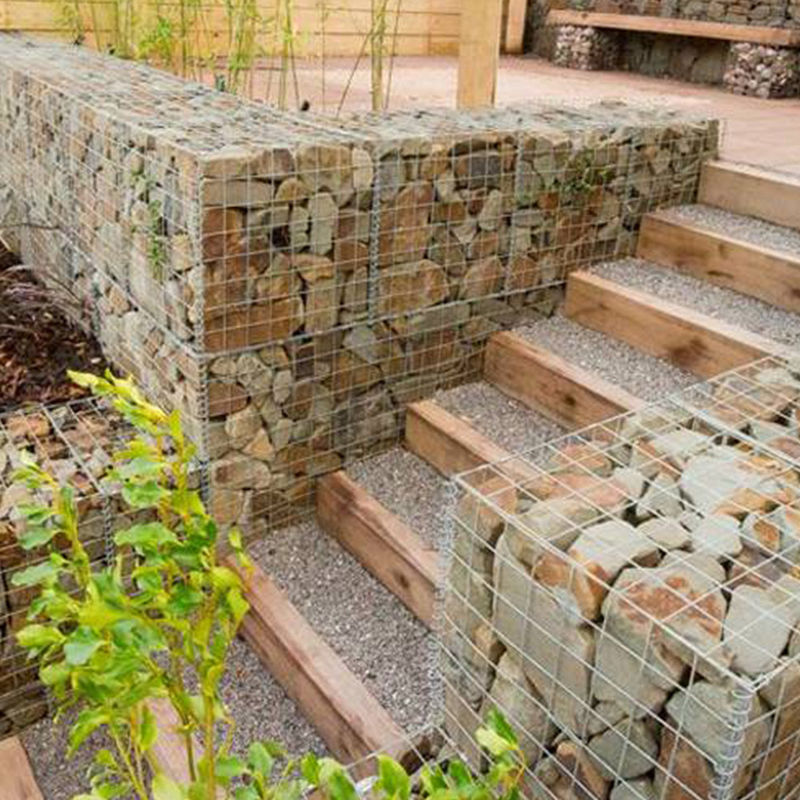

Our hot-dip galvanized welded gabion systems feature precision-welded steel mesh panels for contemporary garden designs. The rigid square/rectangular grids (50×50mm to 100×100mm) create clean architectural lines perfect for planters, privacy screens and retaining walls. The zinc coating provides decades of corrosion resistance while developing an attractive patina. Ideal for displaying stone, wood or drought-resistant plants in residential and commercial landscapes. Standard 1×2m panels allow easy assembly of durable, low-maintenance structures that blend industrial aesthetics with natural elements.
The welded gabion basket details:
A) Panel: high quality galvanized panel of 50*50 or 75*75 mesh size
B) Sprial wires: good quality for same wire diameter as panel
C) Stifferens :4-8 stifferens per gabion, to make sure the gabion is more strong
| Type of welded Gabion |
Wire Gauge Diameter |
Mesh Size |
Gabion Size |
| Galvanized |
3-5mm |
50X50,75X75,50X100 |
2*1*1, 1*1*1,1*1*0.5,etc |
| PVC Coated |
3.0/3.8mm |
50X50,75X75,50X100 |
2*1*1, 1*1*1,2*1*0.5,etc |
| 95% Zinc + 5% Al |
3-5mm |
50X100,75X75,100X100 |
1*1*0.5,2*1*1,1*1*0.3etc |
The welded gabion basket connection details
1. U -clips
2. C-ring
3. Lacing wire connection
4. Hook connection
The sprial wires & hooks or stiffeners is most popular as it's more strong for usage
Welded gabion basket advantage:
1. Economic. Just fill the stone into the gabions and seal it.
2. Simple installation. No special technology needed.
3. Weather proof under natural destroy, corrosion resistant.
4. Sludge in the stones is good for plant growing. Mixed to form a integrity with thenatural environment.
5. Good permeation can prevent the damage by hydrostatic.
6. Less transport freight. It can be folded together for transport and further installation.
7. No collapse even under big scope of deforming.
