Manufacturer Double Twisted Types Welded Wire Gabion Baskets For Construction ​Project

Manufacturer Double Twisted Types Gabion Basket For Construction ​Project

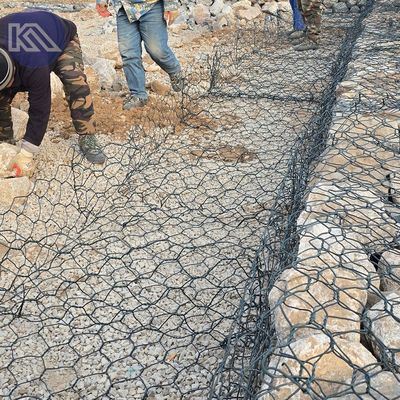

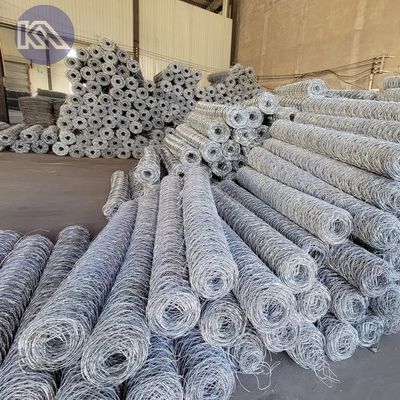

Constructed from double-twisted hexagonal steel mesh (2.7-4.0mm wire diameter) with galvanized or PVC coating, our woven gabion baskets are designed for water control infrastructure. The 80×100mm mesh structure forms durable, permeable containers when filled with stone, used in riverbank stabilization, flood defense barriers, and coastal revetments. Standard units (1×1×1m to 2×1×1m) feature internal diaphragms for structural integrity in flowing water. Compliant with EN 10223-3 standards, these baskets adapt to subgrade contours while resisting hydraulic pressure. Custom dimensions and configurations are available for dam construction, bridge abutment protection, and erosion-prone waterway projects.

• Free samples available (freight to be paid by the customer).
• Ample inventory for fast delivery.
• A variety of styles to choose from.

• We welcome customers' suggestions on prices and products.
• If you have any questions, pls feel free to contact us via email or phone at any time.Julia here , waiting for you .

• Mesh Size: 60×80 mm, 80×100 mm, 100×120 mm, or custom sizes available.
• Dimensions:
  • Length: 1-6 meters
  • Width: 0.23-2 meters
  • Height: 0.3-1 meter
• Wire Diameter: 2.0-4.0 mm.
• Surface Treatment: Galvanizing, hot-dip galvanizing, PVC coating, Galfan coating.

• Mesh Sizes (mm)	Gabion basket dimensions and volumes					Wire diameter
  	L(M)	W(M)	D(M)	Capacity(m³)	Number of diaphragm
  60*80 80*100 100*120	4	2	0.3	2.4	3	Mesh Wire: 2.0mm,2.2mm 2.5mm, 2.7mm,3.05mm. 2.0/3.0mm,2.2/3.2mm 2.5/3.5mm,2.7/3.7mm. selvedge wire: 2.5mm,2.7mm 3.2mm,3.4mm,3.8mm 2.5/3.5mm,2.7/3.7mm 3.2/4.2mm,3.4/4.4mm lacing wire: 2.0mm,2.2mm 2.0/3.0mm,2.2/3.2mm
  	6	2	0.3	3.6	5
  	4	2	0.23	1.84	3
  	6	2	0.23	2.76	5
  	2	1	0.5	1	1
  	3	1	0.5	1.5	2
  	4	1	0.5	2	3
  	2	1	1	2	1
  	3	1	1	3	2
  	4	1	1	4	3
  Other specifications can also be customized processing.

• Cost-effective: Simply fill with stones and seal for use.
• Easy Installation: No special skills required.
• Weather-resistant: Good corrosion resistance in natural environments.
• Eco-friendly: The gaps between stones allow silt to accumulate, which is conducive to plant growth and can blend with the natural environment.
• Low Transportation Costs: Foldable for transportation and then unfolded on-site.

Application Fields

• Water Conservancy Projects: Used for embankments, riverbank protection, and waterway lining to effectively prevent scouring by water flow.
• Environmental Protection: Plays an important role in ecological restoration and soil conservation.
• Road Protection: Protects road foundations, enhancing the stability and durability of roads.
• Coastal Protection: Used in seawalls and port projects to resist wave erosion.
