HDP Galvanized Gabion Boxes 5.0mm Thickness Welded Retaining Walls

Galvanized Welded Mesh Gabion Box

Sustainable Water Management: Welded gabion boxes are ideal for rain gardens and stormwater management systems, where their permeable design allows for effective water drainage, helping to prevent flooding and waterlogging in gardens and outdoor spaces.

Here are some usage scenarios for welded mesh gabions:

1. Retaining Walls: Welded mesh gabions are widely used in the construction of retaining walls for stabilizing slopes, preventing soil erosion, and supporting embankments in both residential and commercial projects.

2. Erosion Control: These gabions are effective in controlling soil erosion along riverbanks, coastlines, and steep slopes by providing a stable, permeable structure that allows water flow while holding back soil.

3. Flood Protection: Welded mesh gabions can be deployed to create flood barriers or levees, protecting vulnerable areas from floodwaters and reducing damage from excessive rainfall or rising rivers.

4. Landscaping Features: Gabions are also used in landscaping to create decorative features such as garden walls, seating areas, and planters, combining functionality with aesthetic appeal.

Technical Specification

• Fabric Type: Galvanized welded mesh

• Tensile Strength (wire): Welded: 540 to 770 N/mm²

• Weld Strength: 75% of the minimum ultimate tensile strength of the wire

• Available wire thicknesses – 3.0mm, 4.0mm, 5.0mm

• Mesh Aperture – 75x75mm, 50x50mm, 50x100mm, 50x200mm

• Standard basket lengths – 1000mm, 1500mm or 2000mm, 500mm etc

• Standard basket widths – 450mm, 500mm, 300mm, 200mm, 1000mm, 1500mm

• Standard basket heights – 500mm, 1000mm

•  Bespoke Sizes Available

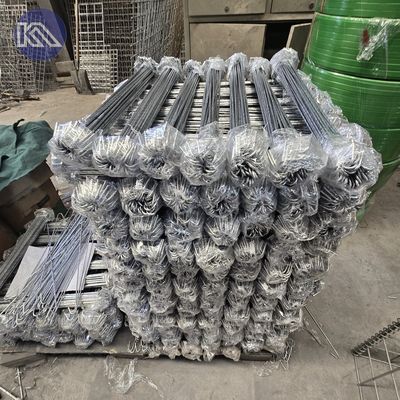

Link Accessorier:

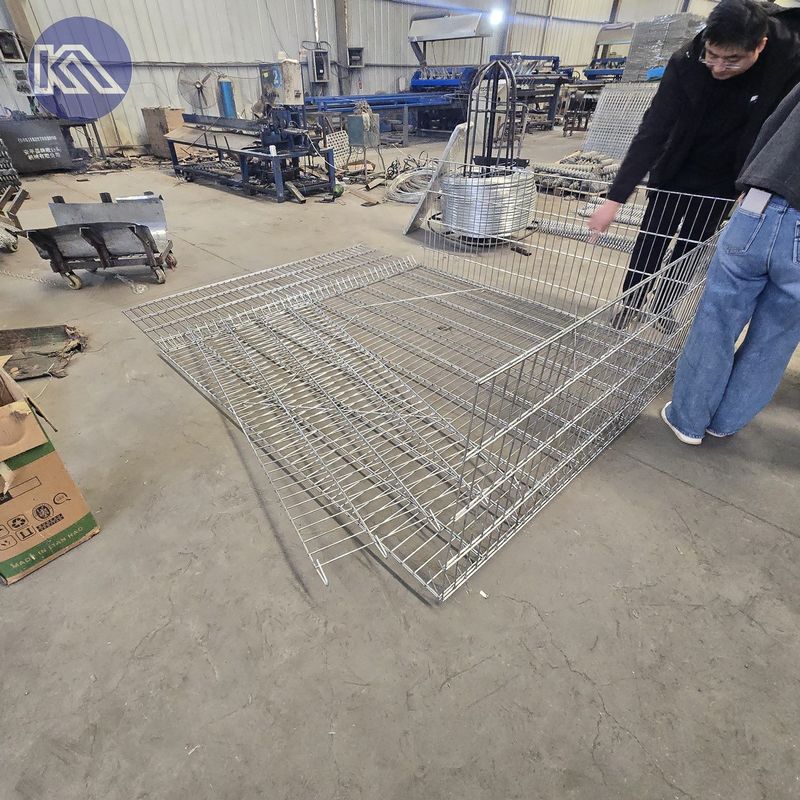

Workshop:

Package and Loading:
