Durable Gabion Wall Fence Anti Rust Welded Hot Dipped Galvanized Gabion Cage For Erosion Protection

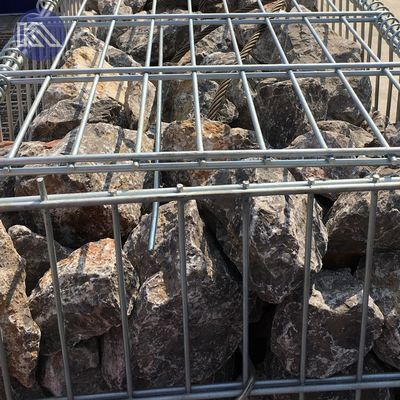

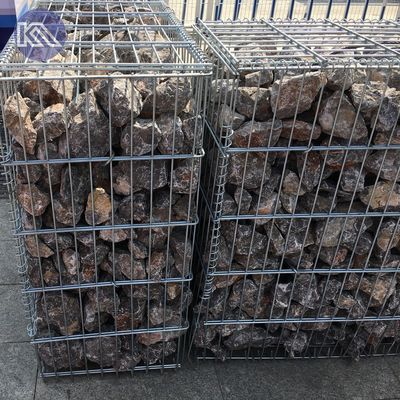

Galvanized Welded Mesh Gabion Box

Water Flow Control: Often used in parks and public spaces, welded gabion boxes help direct water flow, preventing soil erosion and promoting healthy vegetation growth. Their ability to manage water runoff makes them an essential tool in sustainable landscaping.

Here are some usage scenarios for welded mesh gabions:

1. Retaining Walls: Welded mesh gabions are widely used in the construction of retaining walls for stabilizing slopes, preventing soil erosion, and supporting embankments in both residential and commercial projects.

2. Erosion Control: These gabions are effective in controlling soil erosion along riverbanks, coastlines, and steep slopes by providing a stable, permeable structure that allows water flow while holding back soil.

3. Flood Protection: Welded mesh gabions can be deployed to create flood barriers or levees, protecting vulnerable areas from floodwaters and reducing damage from excessive rainfall or rising rivers.

4. Landscaping Features: Gabions are also used in landscaping to create decorative features such as garden walls, seating areas, and planters, combining functionality with aesthetic appeal.

Technical Specification

• Fabric Type: Galvanized welded mesh

• Tensile Strength (wire): Welded: 540 to 770 N/mm²

• Weld Strength: 75% of the minimum ultimate tensile strength of the wire

• Available wire thicknesses – 3.0mm, 4.0mm, 5.0mm

• Mesh Aperture – 75x75mm, 50x50mm, 50x100mm, 50x200mm

• Standard basket lengths – 1000mm, 1500mm or 2000mm, 500mm etc

• Standard basket widths – 450mm, 500mm, 300mm, 200mm, 1000mm, 1500mm

• Standard basket heights – 500mm, 1000mm

•  Bespoke Sizes Available
