Anti Rust 1x1x0.5m Garden Gabion Box Stone Cage Galvanized Gabion Fence Wall For Sale

Galvanized Welded Mesh Gabion BoxAnti-Rust 1x1x0.5m Garden Gabion Box Stone Cage Galvanized Gabion Fence Wall for Sale

Welded Gabion Wall
Fabricated from 5mm Galfan-coated steel wire (Zn-5%Al-MM alloy), this welded mesh forms rectangular panels (2m x0.5m x0.2m) with 60x30mm apertures for garden enclosure systems. Panels feature horizontal reinforcement wires (6mm diameter) at 300mm intervals and interlock via zinc-coated spiral binders (4.2mm). Integrated galvanized base plates (2mm thickness) anchor units to gravel foundations, while foldable side flaps facilitate curved installations. The mesh accommodates 30-50mm ornamental stone fill, with optional perforated drainage sleeves (100mm diameter) at panel bases. Complies with ISO 1461 for hot-dip coatings, available in green polyester powder finish (RAL 6005) for landscape integration.

Here are some usage scenarios for welded mesh gabions:

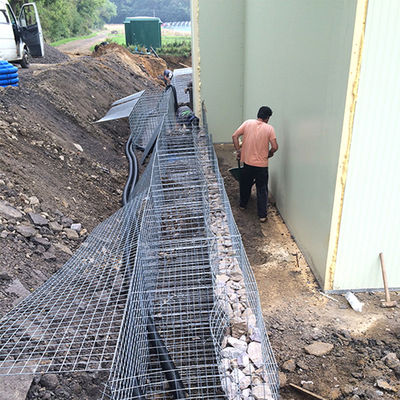

1. Retaining Walls: Welded mesh gabions are widely used in the construction of retaining walls for stabilizing slopes, preventing soil erosion, and supporting embankments in both residential and commercial projects.

2. Erosion Control: These gabions are effective in controlling soil erosion along riverbanks, coastlines, and steep slopes by providing a stable, permeable structure that allows water flow while holding back soil.

3. Flood Protection: Welded mesh gabions can be deployed to create flood barriers or levees, protecting vulnerable areas from floodwaters and reducing damage from excessive rainfall or rising rivers.

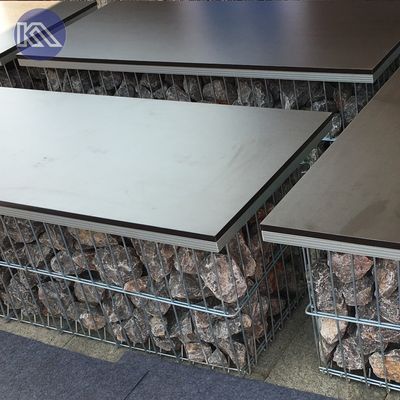

4. Landscaping Features: Gabions are also used in landscaping to create decorative features such as garden walls, seating areas, and planters, combining functionality with aesthetic appeal.

Technical Specification

• Fabric Type: Galvanized welded mesh

• Tensile Strength (wire): Welded: 540 to 770 N/mm²

• Weld Strength: 75% of the minimum ultimate tensile strength of the wire

• Available wire thicknesses – 3.0mm, 4.0mm, 5.0mm

• Mesh Aperture – 75x75mm, 50x50mm, 50x100mm, 50x200mm

• Standard basket lengths – 1000mm, 1500mm or 2000mm, 500mm etc

• Standard basket widths – 450mm, 500mm, 300mm, 200mm, 1000mm, 1500mm

• Standard basket heights – 500mm, 1000mm

•  Bespoke Sizes Available

Link Accessorier:

Workshop:

Package and Loading:
