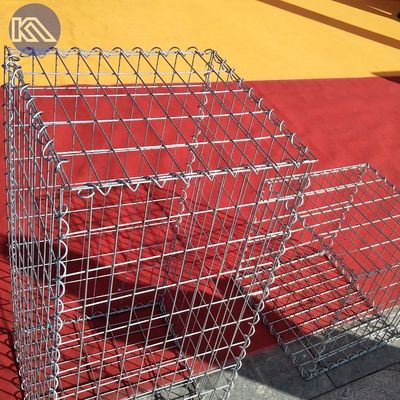

Galvanized Steel Water Proof Welded Gabion Wall Baskets Wire Mesh Retaining Walls

Galvanized Steel Water Proof Welded Gabion basket Stone Wire Mesh Retaining Wall

Main application of welded gabion mesh:
●Rockfall prevention and soil erosion protection, strengthening structure of soil

Technical Specification

• Fabric Type: Galvanized welded mesh

• Tensile Strength (wire): Welded: 540 to 770 N/mm²

• Weld Strength: 75% of the minimum ultimate tensile strength of the wire

• Available wire thicknesses – 3.0mm, 4.0mm, 5.0mm

• Mesh Aperture – 75x75mm, 50x50mm, 50x100mm, 50x200mm

• Standard basket lengths – 1000mm, 1500mm or 2000mm, 500mm etc

• Standard basket widths – 450mm, 500mm, 300mm, 200mm, 1000mm, 1500mm

• Standard basket heights – 500mm, 1000mm

•  Bespoke Sizes Available

Welded Gabion Box is easy-to-install design allows for quick deployment on construction sites, and the modular nature of the gabion boxes makes them highly versatile. Whether used in private, commercial, or public infrastructure projects, the welded gabion boxes provide an effective and sustainable method to control floodwaters, prevent soil erosion, and enhance the landscape's overall stability and security.

Here are some usage scenarios for welded mesh gabions:

1. Retaining Walls: Welded mesh gabions are widely used in the construction of retaining walls for stabilizing slopes, preventing soil erosion, and supporting embankments in both residential and commercial projects.

2. Erosion Control: These gabions are effective in controlling soil erosion along riverbanks, coastlines, and steep slopes by providing a stable, permeable structure that allows water flow while holding back soil.

3. Flood Protection: Welded mesh gabions can be deployed to create flood barriers or levees, protecting vulnerable areas from floodwaters and reducing damage from excessive rainfall or rising rivers.

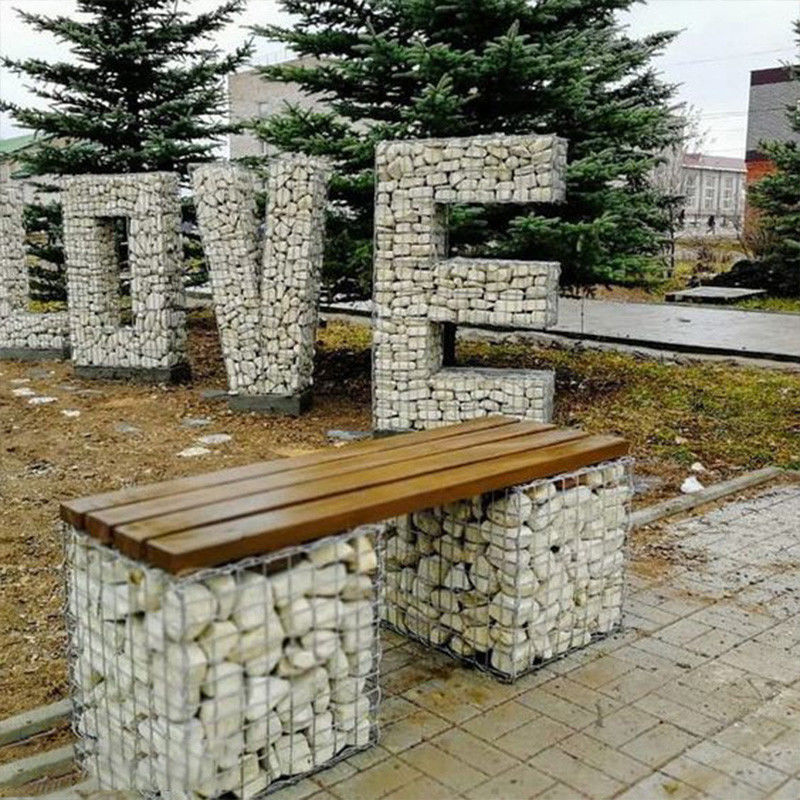

4. Landscaping Features: Gabions are also used in landscaping to create decorative features such as garden walls, seating areas, and planters, combining functionality with aesthetic appeal.
