2m X 1m X 1m Hot Dipped Decorative Gabion Baskets Galvanized 2.7mm 80 X 100mm Double Twisted Stone Filled Gabion Box

2m x 1m x 1m Hot Dipped Galvanized 2.7mm 80 x 100mm Double Twisted Hexagonal Iron Wire Mesh Gabion Basket Stone Filled Gabion Box for Retaining Wall

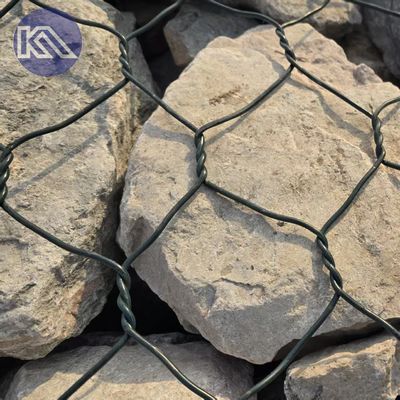

Woven Gabion Basket
Composed of double-twisted hexagonal mesh made from Zn-Al alloy-coated steel wire (4.2mm diameter, 250g/m² coating), this basket (2m x1m x0.5m) features 80x100mm apertures for riverbank stabilization in high-velocity flow zones. Reinforced with 8-gauge edge wires and internal diaphragms spaced at 1m intervals, the structure maintains integrity when filled with 100-200mm quarry stone. Helical connectors (5mm diameter) interlock adjacent units, while biodegradable coconut-fiber liners (optional) aid soil retention in cohesive bank soils. Complies with EN 10223-3 for hydraulic engineering applications, suitable for meander bends with fluctuating water levels.

Product Usage:

• Erosion Control: Woven gabion mesh is frequently used to stabilize slopes and riverbanks, effectively preventing soil erosion by holding back loose earth and allowing for proper water drainage.

• Retaining Walls: This mesh is ideal for constructing retaining walls that not only secure hillside soil but also add an aesthetic, natural look to landscapes, making it popular in both residential and commercial projects.

• Flood Protection: In areas prone to heavy rainfall or flooding, woven gabion mesh forms durable barriers that can divert water flow, thereby reducing the risk of flood damage and protecting nearby infrastructure.

• Coastal Defense: The mesh is used along shorelines to stabilize sandy beaches and cliffs, mitigating the effects of wave action and protecting coastal properties from erosion.

• Road and Highway Embankments: Woven gabion mesh can reinforce road embankments by retaining soil and reducing the likelihood of landslides, ensuring the long-term stability of transportation routes.

• Bridge Abutments and Foundations: In bridge construction, the mesh is applied to strengthen abutments and support foundations, offering a cost-effective solution for reinforcing structural integrity.

Gabion Basket Technical Data as Followed:

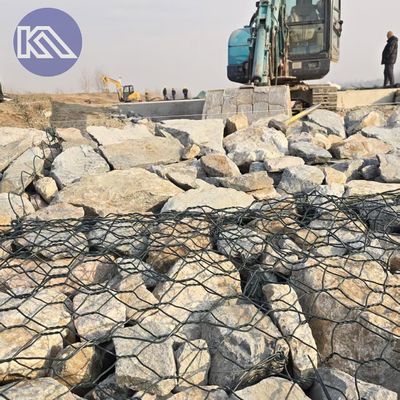

Project Site Picture Show:

Factory overall display:
