4.0mm Wire Diameter Gabion Retaining Wall For Riverbank Protection

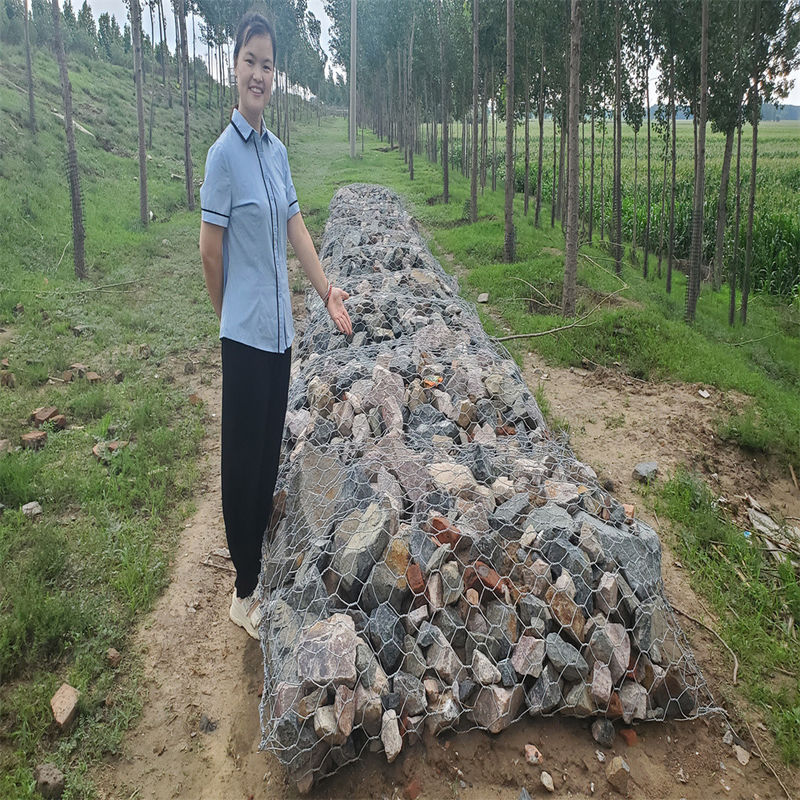

Large Image : 4.0mm Wire Diameter Gabion Retaining Wall For Riverbank Protection

Product Details:

Place of Origin:	CN
Brand Name:	KN
Certification:	CE ISO SGS COC PVOC
Model Number:	gabion

Payment & Shipping Terms:

Minimum Order Quantity:	100 pc
Price:	USD 13-20
Packaging Details:	pallet
Delivery Time:	15 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	1000 pc per day

Contact Now

Detailed Product Description

Product Name:	2.7mm Wire Diameter Plain Weave Gabion Basket For Riverbank Protection	Key Words:	Gabion
Surface Treatment:	Hot-dipped Galvanized	Processing Service:	Bending, Custom Sizes
Hole Shape:	Hexagonal	Size:	2x1x1m 3x1x1m 4x1x1m
Stock:	Have Large Stock	Material:	Galvanized Steel Wire
Highlight:	4.0mm gabion retaining wall , rock cage retaining wall 3x1x1m , 2m x 1m x 1m gabion baskets

4.0mm Wire Diameter Gabion Wall Cost Per Metre For Riverbank Protection

Product Overview

Gabion Wall are manufactured in accordance with and meet the guidelines of ASTMA975-97. The stone fill material used for filling the gabion units is clean, hard stone with pieces ranging from 4 – 8 inches on the greatest dimension.

Key Features

Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)
Advantage

High Zinc Rate

Selvedge wire

3.0-4.0 mm

Weaving type

Durable Three Normal Twist

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

Civil Engineering: Riverbank stabilization, highway embankments
Architecture: Retaining walls, sound barriers, decorative façades
Disaster Prevention: Flood control barriers, landslide mitigation systems
Mining: Tailings dam reinforcement, slope retention

Customization Services

Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)

gabion specifications			Mesh hole modle
			8x10cm		6x8cm
Length(m)	Width(m)	Height(m)	Galvanized or PVC coated		Galvanized or PVC coated
			Mesh diameter	Zinc	Mesh diameter	Zinc
2	1	1	2.7mm	>245g/m²	2.0mm	>215g/m²
3	1	1	Side wire diameter	Zinc	Side wire diameter	Zinc
4	1	1	3.4mm	>265g/²	2.7mm	>245g/m²
6	1	1	Binding wire diameter of 2.7m		Binding wire diameter of 2.0m

Packaging Details

pallet
large gabion in stock,fast shipping
Gabion Mesh Manufacturer, Your reliable Project Partner.
Factory Price,Reliable Quality, Create Excellent Project !
Strict Quality Control:
1. During and after production, 3 QC staffs with more than 5 years experience inspect products in random.
2. National accredited laboratory with CNAS certificates
3. Acceptable inspection from third party appointed/paid by buyer,

4.0mm Wire Diameter Gabion Retaining Wall For Riverbank Protection 0

xin gang , tianjin

Selling Units:

Single item

Single package size:

50X50X5 cm

Single gross weight:

15.000 kg

4.0mm Wire Diameter Gabion Retaining Wall For Riverbank Protection 1
