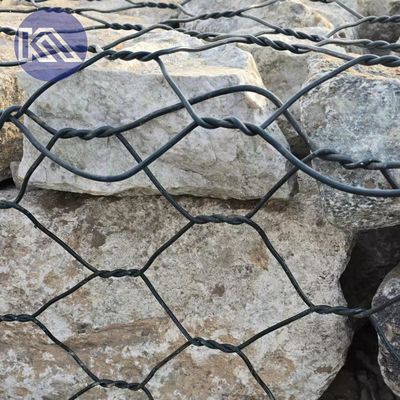

Wire Mesh Gabion Basket Galvanized 2*1*1m For Gabion Retaining Wall Fence

Wire Mesh Gabion Basket Galvanized 2*1*1m For Gabion Retaining Wall Fence
Wire Mesh Gabion Basket Galvanized 2*1*1m For Gabion Retaining Wall Fence
video play

Large Image :  Wire Mesh Gabion Basket Galvanized 2*1*1m For Gabion Retaining Wall Fence

Product Details:
Place of Origin: China
Brand Name: KN
Certification: CE, ISO, COC,BESC
Model Number: KNG01
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD 12-17
Packaging Details: pallet or bundle
Delivery Time: 7
Payment Terms: L/C,Western Union,MoneyGram,T/T
Supply Ability: 1 40-foot high containers in 7 days
Contact Now
Detailed Product Description
Product Name: Galvanized 2*1*1m Wire Mesh Gabion Basket For Gabion Retaining Wall Fence Key Word: Gabion Basket
Material: Galvanized Iron Wire,Low-Carbon Iron Wire,pvc Wire, Galfan Wire Hole Shape: Hexagonal, Double Twist
Wire Gauge: 2.4mm, 2.5mm, 2.7mm, 2.8mm, 3.05mm Application: Gabions,Cages,slope Protection,Fence Mesh,Construction Wire Mesh
Type: Hexagonal Wire Mesh, Double Twist Aperture: 80*100mm,100*120mm,60*80mm,etc,
Surface Treatment: Hot Dipped Galvanized, PVCcoated, Galvanized+PVC Coated Product Name: Gabion Box, Gabion Box Wire Mesh,Gabion Basket,Hot Sale 2x1x1m PVC Coated Heavy Duty Gabion
Color: Green,black, Packing: Pallet,Bundle
Highlight:

galvanized gabion wall cages

,

galvanized gabion retaining wall

,

2*1*1m gabion wall cages

Galvanized 2*1*1m Wire Mesh Gabion Basket for Gabion Retaining Wall Fence



Wire Mesh Gabion Basket for Gabion Retaining Wall Fence is a durable and reliable solution designed for creating strong retaining walls and fences. Constructed from high-quality galvanized wire mesh, this gabion basket measures 2 meters in length, 1 meter in height, and 1 meter in depth, providing excellent structural support for erosion control and slope stabilization. Ideal for use in both residential and commercial landscaping projects, it is perfect for creating sturdy, aesthetically pleasing barriers, offering long-lasting protection against soil erosion and enhancing the stability of outdoor spaces.



Common Gaboin Basket Size :

Gabion Basket Size Notes
Length (M) Width(M) Height(M) Diaphragm CBM (m³)
1 1 1 0 1
2 1 1 1 2
3 1 1 2 3
4 1 1 3 4
5 1 1 4 5
6 1 1 5 6
Other Size Accept Customized



Gabion Mattress Size Notes
Length (M) Width(M) Height(M) Diaphragm CBM (m³)
1 1 0.3/0.5 0 0.3/0.5
2 1 0.3/0.5 1 0.6/1
3 1 0.3/0.5 2 0.9/1.5
4 1 0.3/0.5 3 1.2/2
5 2 0.3/0.5 4 3/5
6 2 0.3/0.5 5 3.6/6
Other Size Accept Customized

Product Usage:

  • Erosion Control: Woven gabion mesh is frequently used to stabilize slopes and riverbanks, effectively preventing soil erosion by holding back loose earth and allowing for proper water drainage.

  • Retaining Walls: This mesh is ideal for constructing retaining walls that not only secure hillside soil but also add an aesthetic, natural look to landscapes, making it popular in both residential and commercial projects.

  • Flood Protection: In areas prone to heavy rainfall or flooding, woven gabion mesh forms durable barriers that can divert water flow, thereby reducing the risk of flood damage and protecting nearby infrastructure.

  • Coastal Defense: The mesh is used along shorelines to stabilize sandy beaches and cliffs, mitigating the effects of wave action and protecting coastal properties from erosion.

  • Road and Highway Embankments: Woven gabion mesh can reinforce road embankments by retaining soil and reducing the likelihood of landslides, ensuring the long-term stability of transportation routes.

  • Bridge Abutments and Foundations: In bridge construction, the mesh is applied to strengthen abutments and support foundations, offering a cost-effective solution for reinforcing structural integrity.

Gabion Basket Technical Data as Followed:

Technical Data List
Parameter Description Typical Value / Range
Material Base material used for constructing the mesh HDP/Galvanized Wire, PVC Wire
Coating Surface treatment for enhanced corrosion resistance Galvanized, HDP Galvanized, PVC Coated
Wire Diameter The thickness of the wires used in the mesh

Mesh Wire: 2.0~3.05mm

Selvage Wire: 2.4~4.0mm

Tie Wire: 2.0~2.4mm
Mesh Opening Size The size of the openings between wires, determining the size of stones that can be contained

60*80mm, 80*100mm, 100*120mm,120*150mm
Overall Dimensions Standard Gabion Roll and Gabion Basket Size

Gabion Roll Width: 1~4m

Gabion Basket: 1*1*1m,2*1*1m,3*1*1m,4*1*1m,,5*1*1m,6*1*1m,
Lifespan Expected service life under normal installation and maintenance conditions

Generally 6~20 years, depends on environment.

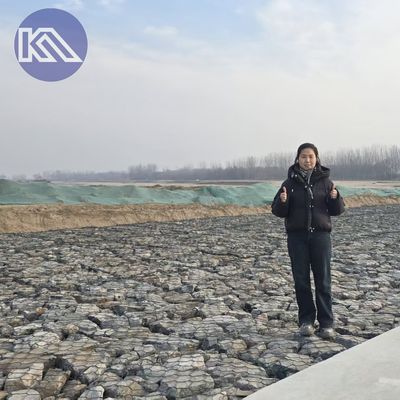

Project Site Picture Show:

Wire Mesh Gabion Basket Galvanized 2*1*1m For Gabion Retaining Wall Fence 0

Wire Mesh Gabion Basket Galvanized 2*1*1m For Gabion Retaining Wall Fence 1

Factory overall display:

Wire Mesh Gabion Basket Galvanized 2*1*1m For Gabion Retaining Wall Fence 2

Wire Mesh Gabion Basket Galvanized 2*1*1m For Gabion Retaining Wall Fence 3











Tag:

rock cage retaining wall,

stone cage retaining wall,

wire mesh retaining wall
