2x1x1m Hydraulic Engineering Gabion Box Retaining Wall Rockfall Barrier Heavy Duty Rustproof

Gabion Retaining Wall 2x1x1m Hydraulic Engineering Rockfall Barrier Heavy Duty Rustproof

Available in a range of sizes, including 2x1x1m, this gabion box can be tailored to fit specific project requirements, making it suitable for various construction applications.

Key Features

• Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
• Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
• Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
• Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

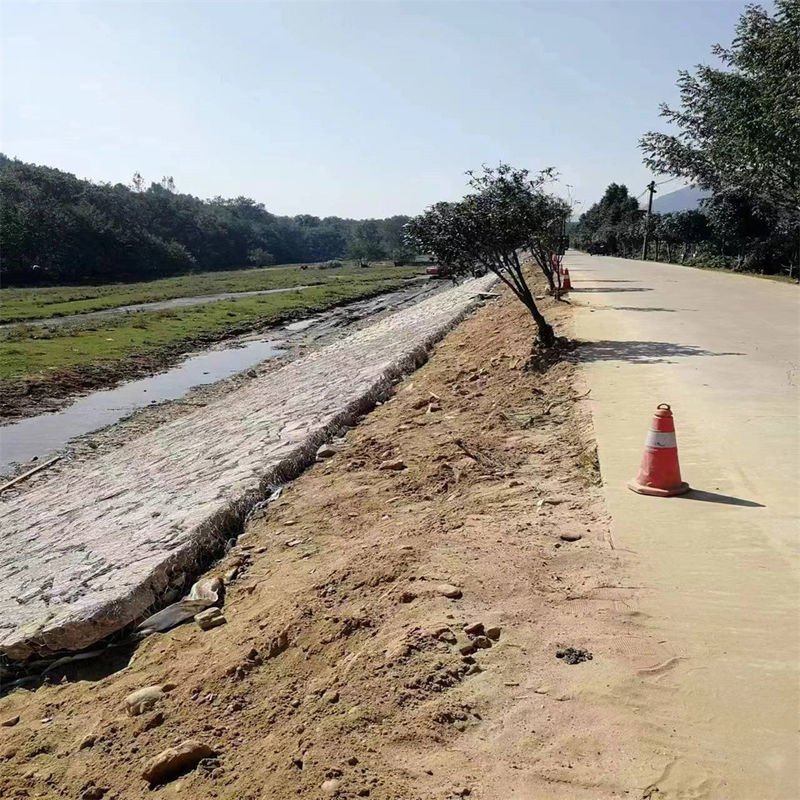

• Civil Engineering: Riverbank stabilization, highway embankments
• Architecture: Retaining walls, sound barriers, decorative façades
• Disaster Prevention: Flood control barriers, landslide mitigation systems
• Mining: Tailings dam reinforcement, slope retention
  Packaging Details
  Gabion baskets Packing: 40-100set/ bundle, binding with steel strape or strands; 40-100set/bundle; Then use wooden tray; Some sizes in rolls; As customer's requirement

  1.bnudle package
  2.Several pieces of gabions to a pallet,pallets put into containers.
  3.70pieces to a bundle, 24-26Tons to a 40HQ



Customization Services

• Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
• Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
• Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
