Hot Dipped Welded Mesh Gabions Mattress , Retaining Wall Using Gabion Baskets
Welded Gabion

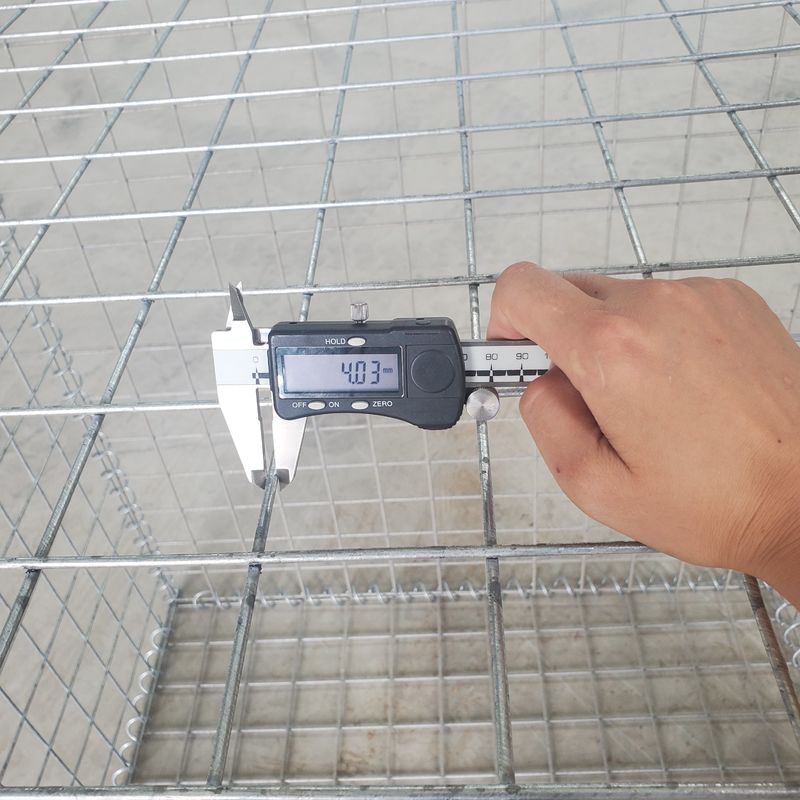

The hole shape of the Welded Gabion Box is square, providing a uniform and clean look to your project. The mesh opening comes in two sizes - 50mm x 50mm and 80mm x 80mm, offering versatility in design and functionality. Whether you need a finer mesh for smaller stones or a larger opening for better drainage, this product can cater to your specific needs.
For added durability and longevity, the Welded Gabion Box is finished with hot dip galvanization. This process coats the mesh with a protective layer of zinc, making it resistant to corrosion, rust, and weathering. The hot dip galvanized finish ensures that your gabion boxes will maintain their structural integrity even in harsh environmental conditions.
Customization is also a key feature of the Welded Gabion Box. The product is designed to be easily customizable, allowing you to tailor it to your project requirements. Whether you need a specific size, shape, or configuration, customization is acceptable, ensuring that the gabion boxes will fit seamlessly into your design.
When it comes to assembly, the Welded Gabion Box is easy to install using standard tools and equipment. The welded Gabion Mesh provides a sturdy framework for filling the boxes with stones, creating a solid and stable structure. Whether you are building a retaining wall, constructing erosion control measures, or designing decorative features, the welded Gabion Box wire mesh offers reliable support and durability.
The welded gabion basket details:
- Product Name: Welded Gabion Box
- Box Size: 1x1x1m, 2x1x1m, 3x1x1m
- Customise: Acceptable
- Process: Woven Mesh
- Colors: As Required
- Wire: 3.0mm-5.0mm
| Type of welded Gabion |
Wire Gauge Diameter |
Mesh Size |
Gabion Size |
| Galvanized |
3-5mm |
50X50,75X75,50X100 |
2*1*1, 1*1*1,1*1*0.5,etc |
| PVC Coated |
3.0/3.8mm |
50X50,75X75,50X100 |
2*1*1, 1*1*1,2*1*0.5,etc |
| 95% Zinc + 5% Al |
3-5mm |
50X100,75X75,100X100 |
1*1*0.5,2*1*1,1*1*0.3etc |
The welded gabion basket connection details
1. U -clips
2. C-ring
3. Lacing wire connection
4. Hook connection
The sprial wires & hooks or stiffeners is most popular as it's more strong for usage
Welded gabion basket advantage:
1. Economic. Just fill the stone into the gabions and seal it.
2. Simple installation. No special technology needed.
3. Weather proof under natural destroy, corrosion resistant.
4. Sludge in the stones is good for plant growing. Mixed to form a integrity with thenatural environment.
5. Good permeation can prevent the damage by hydrostatic.
6. Less transport freight. It can be folded together for transport and further installation.
7. No collapse even under big scope of deforming.
