Welded Gabion Stone Walls Fence , Decorative Gabion Wall CE Certification
Welded Gabion Box

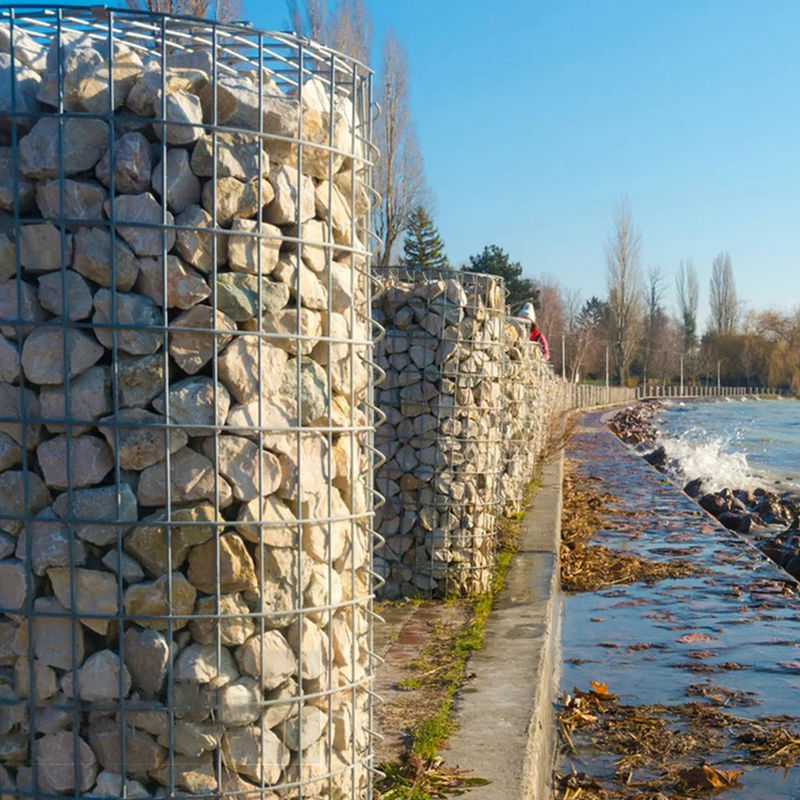

The welded Gabion Wall Baskets, welded Gabion Mesh Cage, and welded Gabion Fence System offered by kn are versatile products suitable for various applications. With the model number of welded gabion, these products are manufactured in China using high-quality materials and precise production techniques.
These welded gabion boxes are ideal for landscaping projects, erosion control, retaining walls, and architectural designs. The mesh openings of 50mm X 50mm and 80mm X 80mm provide flexibility in design and functionality. The mesh sizes available include 50x50mm, 75x75mm, and 100x100mm, catering to different project requirements.
The welded gabion basket details:
- Product Name: Welded Gabion Box
- Box Size: 1x1x1m, 2x1x1m, 3x1x1m
- Customise: Acceptable
- Process: Woven Mesh
- Colors: As Required
- Wire: 3.0mm-5.0
| Type of welded Gabion |
Wire Gauge Diameter |
Mesh Size |
Gabion Size |
| Galvanized |
3-5mm |
50X50,75X75,50X100 |
2*1*1, 1*1*1,1*1*0.5,etc |
| PVC Coated |
3.0/3.8mm |
50X50,75X75,50X100 |
2*1*1, 1*1*1,2*1*0.5,etc |
| 95% Zinc + 5% Al |
3-5mm |
50X100,75X75,100X100 |
1*1*0.5,2*1*1,1*1*0.3etc |
The welded gabion basket connection details
1. U -clips
2. C-ring
3. Lacing wire connection
4. Hook connection
The sprial wires & hooks or stiffeners is most popular as it's more strong for usage
Welded gabion basket advantage:
1. Economic. Just fill the stone into the gabions and seal it.
2. Simple installation. No special technology needed.
3. Weather proof under natural destroy, corrosion resistant.
4. Sludge in the stones is good for plant growing. Mixed to form a integrity with thenatural environment.
5. Good permeation can prevent the damage by hydrostatic.
6. Less transport freight. It can be folded together for transport and further installation.
7. No collapse even under big scope of deforming.
