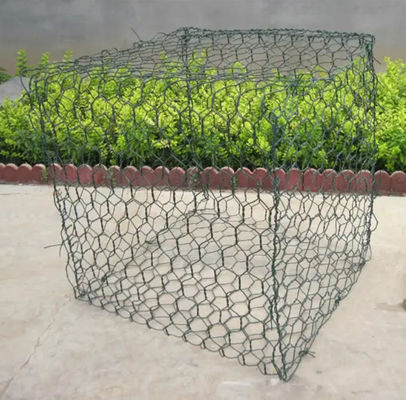

200x100x50 Gabion Box Walls Blocks Hexagonal Hole Gabion Garden Wall Stone Cage New Generation

200x100x50 Box Gabion Retaining Walls Blocks Hexagonal Hole Garden Gabion Basket Stone Cage New Generation Gabion Box

Constructed with double-twisted hexagonal steel mesh (3.2-4.0mm wire) and ISO 1461-compliant galvanization (≥275g/m²), our gabion walls are engineered for tidal barrage reinforcement and estuarine flood control. The 70×90mm mesh configuration integrates with anti-salinity geocomposites to stabilize brackish water zones and lockgate peripheries. Designed for curved installations in harbor basins and saltmarsh restoration projects, the system supports hybrid stone-concrete fills (200-400mm) for wave energy dissipation. Customizable in segmented modules (1-4m height) with sacrificial anode compatibility for extended service life in aggressive coastal environments.

Draining

Supply of drainage composite for use behind walls, between two different fills, alongside drains of road, below concrete lining of canals etc. Three dimensional composite with thermobonding a draining core having “W” configuration in extruded monofilaments of minimum thickness 6mm, with two filtering UV stabilized polypropylene nonwoven geotextile of minimum thickness of 0.75mm and tensile strength of 8.0 kN/m that will be working as separation or protecting layer, geocomposite having in plane flow capacity of 2 L / (m.s) at hydraulic gradient of 1.0 & 20 kPa pressure and tensile strength of 15 kN/m, with mass per unit area of 660 gsm, at easily accessible location including top and bottom, with all leads and lifts, manpower and machinery, materials, labour etc. complete and as directed.

Laying Gabions

Providing and laying Gabion of mechanically woven, double twisted, hexgonal shaped steel wire Mesh type 10x12 with minimum punch strength 19kN, Mesh wire dia 2.7/3.7mm(ID/OD), Galmac(Zn90%+Al10%)+PVC coated

Product Specifications:
Mesh Size: 3" x 3" (square opening) or 60x80mm, 80x100mm,100x120mm,

Dimensions:
Length: Customized according to project requirements.
Width: Customized according to project requirements.
Height: Customized according to project requirements.
Wire Diameter: 3mm, 4mm, 5mm.
Surface Treatment: Galvanizing, PVC coating.

Product Advantages:
Durability: Gabion retaining walls have a long service life and can withstand harsh environmental conditions. The wire mesh is usually galvanized or PVC-coated to prevent corrosion, ensuring the wall structure remains stable for many years.
Flexibility: Unlike rigid retaining walls, gabion retaining walls are flexible and can adapt to ground movement without cracking or failing. This makes them ideal for areas prone to soil erosion or seismic activity.
Permeability: The porous nature of gabion retaining walls allows water to pass through, reducing water pressure behind the wall and preventing water-related damage.
Environmental Friendliness: Gabion retaining walls use natural materials and can seamlessly blend with the environment. They can be constructed with locally sourced stones to minimize environmental impact.
Cost-effectiveness: Gabion retaining walls are relatively inexpensive to build and maintain. The materials are affordable, and the construction process is simple, requiring less labor and equipment.
Aesthetic Appeal: Gabion retaining walls have a natural, rustic appearance that can enhance the visual appeal of any landscape. They can be customized with different types and colors of stones to match the surrounding environment.

Application Fields:
Water Conservancy Projects: Used for embankments, riverbank protection, and waterway lining to effectively prevent scouring by water flow.
Environmental Protection: Play an important role in ecological restoration and soil conservation.
Road Protection: Protect road foundations, enhancing the stability and durability of roads.
Coastal Protection: Used in seawalls and port projects to resist wave erosion.
Architectural Decoration: Used as decorative elements on building exteriors, providing a unique visual effect.

Company Introduction:
We are one of the largest suppliers of gabion mesh in China, with rich industry experience and strong technical capabilities. Our products are exported to many countries and regions around the world, and we have successfully implemented gabion mesh projects in numerous countries. We not only offer standardized products but can also customize according to specific customer requirements.

Cooperation and Services:
Pre-sales Services:

Free samples available (freight to be paid by the customer); ample inventory for quick delivery; a variety of styles to choose from.
After-sales Services:

Customers can enjoy standardized and comprehensive services before, during, and after sales, with no worries.

We sincerely invite you to become our agent and explore the global market together. If you are interested in our products, please feel free to contact us by phone, fax, or email at any time.
