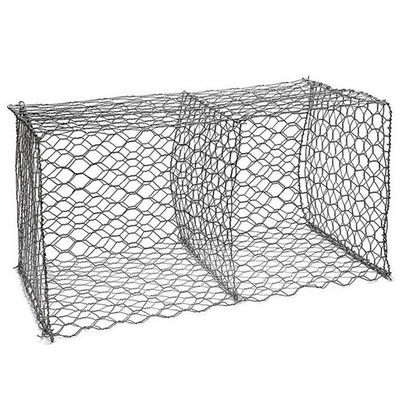

2.0*1.0*1.0 Size Wire Cages For Rocks Normal Twisted PVC Gabion Mesh Galvanized

2.0*1.0*1.0 Size Wire Cages For Rocks Normal Twisted PVC Gabion Mesh Galvanized

Large Image :  2.0*1.0*1.0 Size Wire Cages For Rocks Normal Twisted PVC Gabion Mesh Galvanized

Product Details:
Place of Origin: CHINA
Brand Name: KN
Certification: ISO CE
Model Number: 1X1X1
Payment & Shipping Terms:
Minimum Order Quantity: 100pc
Price: USD 17-20
Packaging Details: pallets
Delivery Time: 7-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000mw per day
Detailed Product Description
Surface Treatment: Hot-dipped Galvanized Zinc Coating: ≥ 270g/m²
Size: 2m X 1m X 1m Application: Erosion Control, Retaining Walls, Landscaping
Elongation: ≥ 10% Wire Diameter: 3.05mm
Product_Name: Gabion Cages Material: Galvanized Steel Wire
Durability: Long-lasting Tensile Strength: 350-500N/mm²
Mesh Size: 80mm X 100mm 100x120mm Installation: Easy And Quick
Connectors: Binding Lacing Wire Assembly Method: Binding Wire
Package: Pallet Or In Bulk
Highlight:

2.0*1.0*1.0 mesh cages for rocks

,

2.0*1.0*1.0 wire cages for rocks

,

galvanized mesh cages for rocks

2.0*1.0*1.0 Size Wire Gabion Cage Manufacturers Normal Twisted PVC Gabion Mesh Galvanized Gabion China Leadwalking



Gabion box, also known as gabion cages, is a new type of ecological grid structure that has been successfully applied in water
conservancy engineering, highway, railway engineering, and embankment protection projects. The organic combination of engineering
structure and ecological environment has been well achieved. Compared with some traditional rigid structures, it has its own
advantages and has become the preferred structural form for protecting riverbeds, controlling landslides, preventing mudslides,
preventing rockfalls, and environmental protection worldwide.



Feature 1: Economical, just put the stone into the cage and seal it;

Feature 2: Easy construction without the need for special techniques;
Feature 3: Strong ability to resist natural damage, erosion, and adverse weather conditions;
Feature 4: Can withstand large-scale deformation without collapsing;
Feature 5: The silt between the cracks of the cage stones is conducive to plant growth and can integrate with the surrounding natural environment;
Feature 6: It has good permeability and can prevent damage caused by hydrostatic pressure;
Feature 7: Save transportation costs. It can be folded up for transportation and assembled on the construction site;
Feature 8: Fast progress, conducive to rush work period: Multiple groups can be constructed simultaneously, in parallel, and in a streamlined manner.

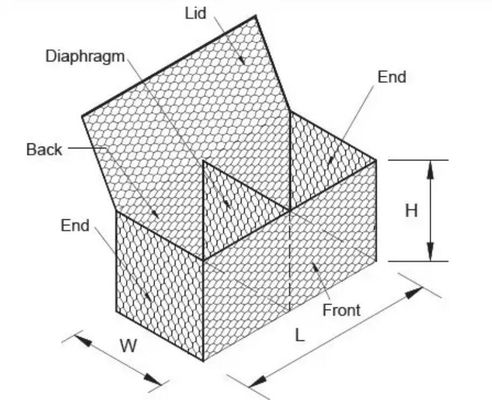

Product Paramenters
Size
Wire Diameter
Diaphragm
Length
Width
Heigth
Sqm
Color
Surface Treatn
60*80mm
80*100mm
80*110mm
100*120mm
120*150mm


2.0-4.0mm
2.2mm,2.7mm,3.0mm,3.05mm is common
1
2m
1m
0.5m
7.5㎡
Silver

Dark

Green

Gray

Black
Hot dip galvanized

PVC coated

PE coated

Galfan
1
2m
1m
1m
11㎡
2
3m
1m
0.5m
10.5㎡
2
3m
1m
1m
16㎡
3
4m
1m
0.5m
14.5㎡


3
4m
1m
1m
21㎡



A new material structure applied to transportation, water conservancy, municipal engineering, landscaping, soil and water conservation and other engineering projects. The product varieties are classified according to their engineering purposes, including gabion nets for roads, alloy mesh bags, landscape design, retaining walls, bridge protection, coastal defense, embankment and river protection.



To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
(1)30-100Sets make one Bundles,then wrapped by good quality Plastic Films outside
(2)Nude package
(3)Delivery by Wooden Tray.(one Tray loading about 1Tons)



Gabion Walls do help with water filtration, and this is one of their significant environmental benefits. Here’s how they contribute to water purification and management:

Water Filtration and Purification
Natural Filtration: The stones and rocks within the Gabion Wall act as a natural filter, trapping sediments, pollutants, and debris as water flows through. This helps in reducing the amount of pollutants entering water bodies.
Reducing Runoff: The permeable structure of Gabion Walls allows water to pass through, reducing surface runoff and promoting groundwater recharge,This helps in maintaining the natural water cycle and prevents flooding.
Supporting Vegetation: Over time, vegetation can grow between the stones in Gabion Walls. These plants can further filter water and absorb pollutants through their root systems

Additional Environmental Benefits
Erosion Control: Gabion Walls are highly effective in preventing soil erosion and stabilizing slopes, riverbanks, and shorelines, This helps in maintaining the integrity of the soil and preventing landslides.
Enhancing Biodiversity: The gaps between the stones in Gabion Walls provide habitats for small animals, insects, and plants, contributing to local biodiversity
Low Carbon Footprint: Gabion Walls are constructed using locally sourced natural stones or recycled materials, reducing transportation emissions and the overall carbon footprint

In summary, Gabion Walls play a crucial role in sustainable water management and environmental protection by facilitating natural water filtration, reducing runoff, and supporting biodiversity

2.0*1.0*1.0 Size Wire Cages For Rocks Normal Twisted PVC Gabion Mesh Galvanized 02.0*1.0*1.0 Size Wire Cages For Rocks Normal Twisted PVC Gabion Mesh Galvanized 12.0*1.0*1.0 Size Wire Cages For Rocks Normal Twisted PVC Gabion Mesh Galvanized 2

2.0*1.0*1.0 Size Wire Cages For Rocks Normal Twisted PVC Gabion Mesh Galvanized 3
