Woven Gabion Mesh for Hydraulic Engineering

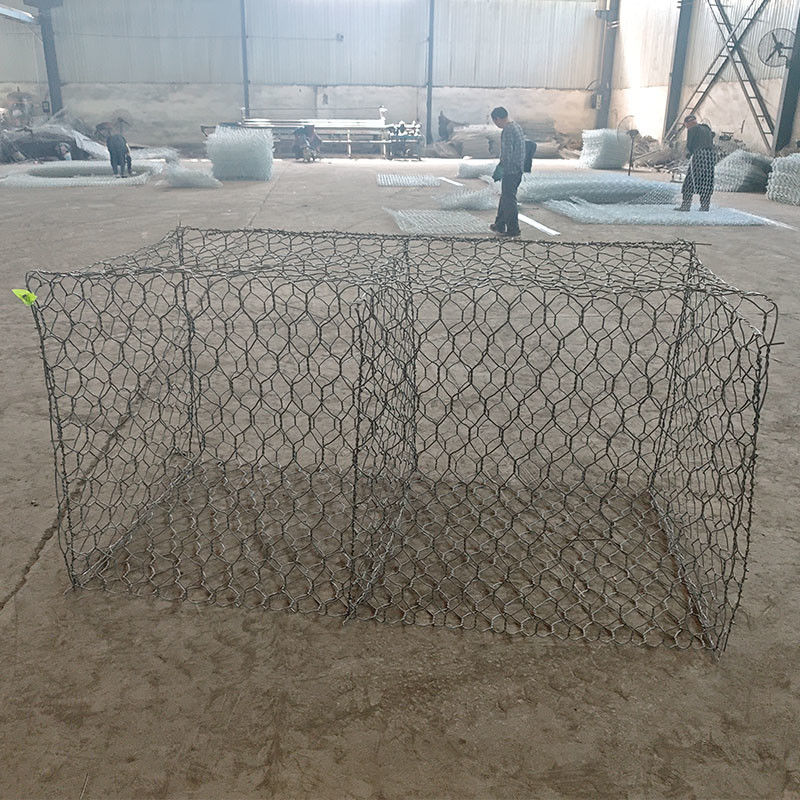

Woven Gabion, constructed with double-twisted hexagonal steel wire (galvanized or Galfan-coated), is tailored for hydraulic structures including canal linings, weir foundations, and tidal barrier systems. Its interlocking design withstands hydrostatic pressure and sediment loads in applications like riverbed protection, reservoir embankments, and stormwater drainage networks. Compliant with ISO 10380 and ASTM A975, standard dimensions (e.g., 3x1x1m, 4x2x0.5m) adapt to project-specific needs for rock-filled retention in high-flow environments. Used in coastal revetments and floodplain management, it ensures long-term stability for critical water infrastructure.

Key Features

• Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
• Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
• Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
• Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

• Civil Engineering: Riverbank stabilization, highway embankments
• Architecture: Retaining walls, sound barriers, decorative façades
• Disaster Prevention: Flood control barriers, landslide mitigation systems
• Mining: Tailings dam reinforcement, slope retention

Customization Services

• Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
• Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
• Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
