Woven Gabion Wall HDG Mesh For Hydraulic Riverbank Retaining Wall Construction

Woven Gabion HDG Mesh for Hydraulic Riverbank Retaining Wall Construction

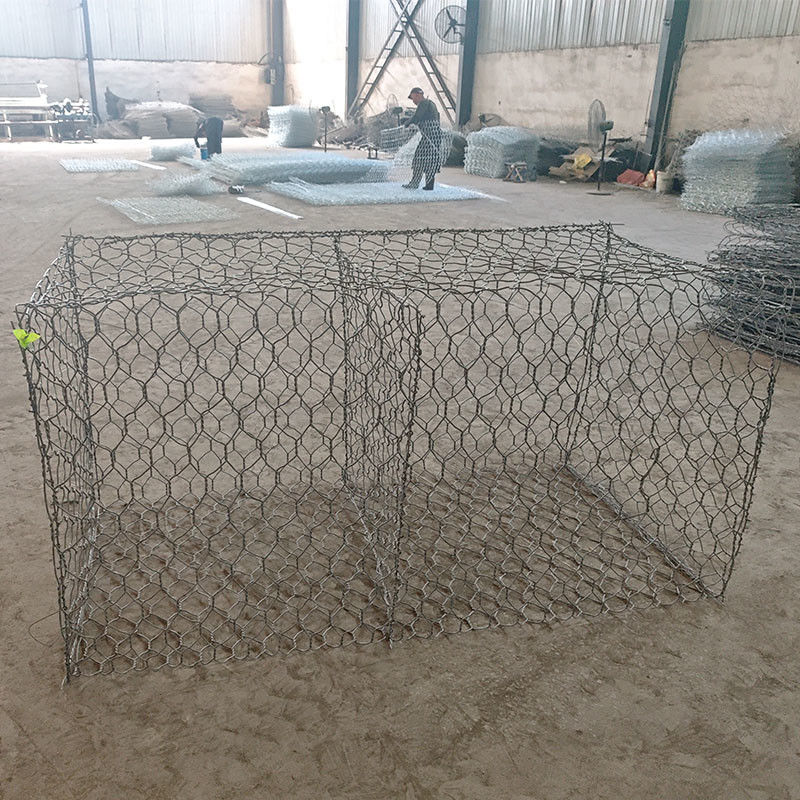

Woven Gabion Wall, formed with double-twisted hexagonal steel wire (Hot-Dip Galvanized/Galfan-coated), is utilized in hydraulic engineering for constructing weir foundations, harbor breakwaters, and drainage channel reinforcement. Its flexible mesh structure supports rock or concrete fill to dissipate hydraulic energy in tidal barrier systems, storm surge protection, and irrigation canal embankments. Compliant with EN 10223-3 specifications, modular units (1.5x1x0.5m to 3x2x1m) enable rapid deployment in sediment control basins, culvert headwalls, and river delta stabilization projects under dynamic aquatic conditions.

Key Features

• Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
• Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
• Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
• Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

• Civil Engineering: Riverbank stabilization, highway embankments
• Architecture: Retaining walls, sound barriers, decorative façades
• Disaster Prevention: Flood control barriers, landslide mitigation systems
• Mining: Tailings dam reinforcement, slope retention

Customization Services

• Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
• Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
• Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
