River Erosion Control Galvanized Rock Gabion Basket With 2*1*1m made by 2.7mm Wire 80*100mm Mesh Hole Hexagonal Gabion Wire Mesh
Gabions are very useful in civil engineering, military applications, road building, general landscaping elements, foundations, erosion control, and architectural elements. Some of the fastest growing applications of gabions include architectural fence and veneer construction and for stabilizing shorelines against erosion since they form flexible and permeable structures.
Gabions, from the Italian word for cage, are strong containers filled with inorganic materials like rock, concrete, sand and soil and in certain architectural applications glass rock. These cages are constructed of site specific material including galvanized steel, stainless steel, raw steel, PVC coated steel, and copolymer plastic. They are designed to withstand all kinds of weather and site conditions and are known for their incredible versatility.
ARCHITECTURAL GABION WALLS
Not only are gabions built for strength with minimal foundations needed, but their natural aesthetic is unrivaled. By using onsite material for filling, transportation costs get reduced significantly. In hot climates, these structures also have the potential to act as a shade screen providing passive cooling and ventilation. Lastly, these structures allow easy drainage to the surrounding environment. As a result, these structures comply with industry standards while also helping promote sustainability. Gabion walls are a versatile solution with multiple benefits, making them an ideal choice for many architectural projects.
Gabions offer a unique approach to both drainage solutions and environmentally friendly solutions. Gabions provide sound solutions to erosion and flooding but are also aesthetically pleasing solutions that can enhance the environment while reducing maintenance costs.
Custom Gabions
For many landscaping and decorating applications, a desired effect can usually be achieved using standard sized gabions. However, you may find that using standard sized gabions just doesn't seem to work for your project ... making it necessary to consider using custom units.
We can offer you a free standing gabion wall or fence, a gabion wall veneer in depths starting at 6" in 3" increments and heights from 12" to 8’. Various materials, mesh openings, wire diameters are available upon request.
Gabions can be used to create:
- erosion protection structures
- weirs
- soil retaining walls (gravity and MSE)
- culvert headwalls
Gabion Basket Technical Data as Followed:
| Technical Data List |
| Parameter |
Description |
Typical Value / Range |
| Material |
Base material used for constructing the mesh |
HDP/Galvanized Wire, PVC Wire |
| Coating |
Surface treatment for enhanced corrosion resistance |
Galvanized, HDP Galvanized, PVC Coated |
| Wire Diameter |
The thickness of the wires used in the mesh |
Mesh Wire: 2.0~3.05mm
Selvage Wire: 2.4~4.0mm
Tie Wire: 2.0~2.4mm
|
| Mesh Opening Size |
The size of the openings between wires, determining the size of stones that can be contained |
60*80mm, 80*100mm, 100*120mm,120*150mm
|
| Overall Dimensions |
Standard Gabion Roll and Gabion Basket Size |
Gabion Roll Width: 1~4m
Gabion Basket: 1*1*1m,2*1*1m,3*1*1m,4*1*1m,,5*1*1m,6*1*1m,
|
| Lifespan |
Expected service life under normal installation and maintenance conditions |
Generally 6~20 years, depends on environment.
|

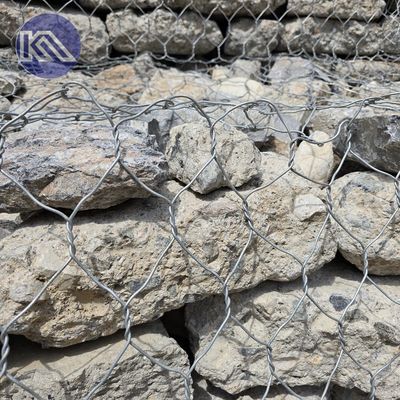

Different size picture of Gabion:
Gabions Workshop Show:

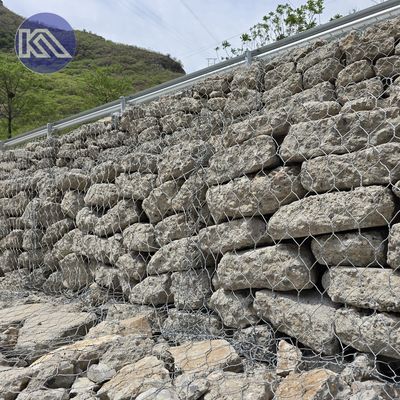

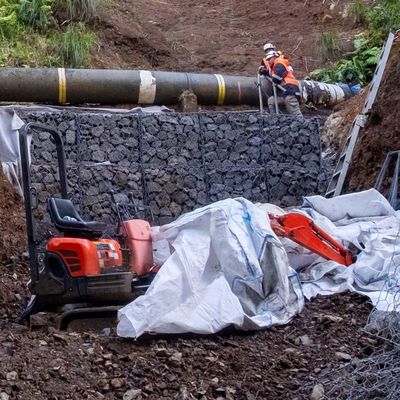

Proect Site Pictures:
