Stone Gabion Cages Basket With Gabion Bags Defensive Barriers For Protection

Stone Gabion Cages Basket With Gabion Bags Defensive Barriers For Protection
Stone Gabion Cages Basket With Gabion Bags Defensive Barriers For Protection
video play

Large Image :  Stone Gabion Cages Basket With Gabion Bags Defensive Barriers For Protection

Product Details:
Place of Origin: CN
Brand Name: KN
Certification: CE ISO SGS COC PVOC
Model Number: Gabion Basket
Payment & Shipping Terms:
Minimum Order Quantity: 100 pc
Price: USD 10-20
Packaging Details: pallet Gabion Basket
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 pc per day
Contact Now
Detailed Product Description
Product Name: 2.7mm Wire Diameter Plain Weave Gabion Basket For Riverbank Protection Key Words: Gabion Basket
Surface Treatment: Hot-dipped Galvanized Processing Service: Bending, Custom Sizes
Hole Shape: Hexagonal Size: 2x1x1m 3x1x1m 4x1x1m
Stock: Have Large Stock Material: Galvanized Steel Wire
Highlight:

Stone Gabion Cages basket

,

Protection Stone Gabion Cages basket

,

Defensive Barriers Stone Gabion Cages basket

Stone Gabion Cages basket with Gabion Bags Defensive Barriers for Protection





Product Overview

 Gabion Basket are Slope protection: To prevent landslides and falling rocks and ensure the safety of highway and railway subgrades.
Retaining wall: Replacing concrete structure, flexible design ADAPTS to foundation settlement and reduces costs.

Stone Gabion Cages Basket With Gabion Bags Defensive Barriers For Protection 0

Key Features

  • Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
  • Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
  • Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
  • Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

  • Gabion Basket Technical Data as Followed:

    Technical Data List
    Parameter Description Typical Value / Range
    Material Base material used for constructing the mesh HDP/Galvanized Wire, PVC Wire
    Coating Surface treatment for enhanced corrosion resistance Galvanized, HDP Galvanized, PVC Coated
    Wire Diameter The thickness of the wires used in the mesh

    Mesh Wire: 2.0~3.05mm

    Selvage Wire: 2.4~4.0mm

    Tie Wire: 2.0~2.4mm
    Mesh Opening Size The size of the openings between wires, determining the size of stones that can be contained 60*80mm, 80*100mm, 100*120mm,120*150mm
    Overall Dimensions Standard Gabion Roll and Gabion Basket Size

    Gabion Roll Width: 1~4m

    Gabion Basket: 1*1*1m,2*1*1m,3*1*1m,4*1*1m,,5*1*1m,6*1*1m,
    Lifespan Expected service life under normal installation and maintenance conditions Generally 6~20 years, depends on environment.
    Stone Gabion Cages Basket With Gabion Bags Defensive Barriers For Protection 1

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

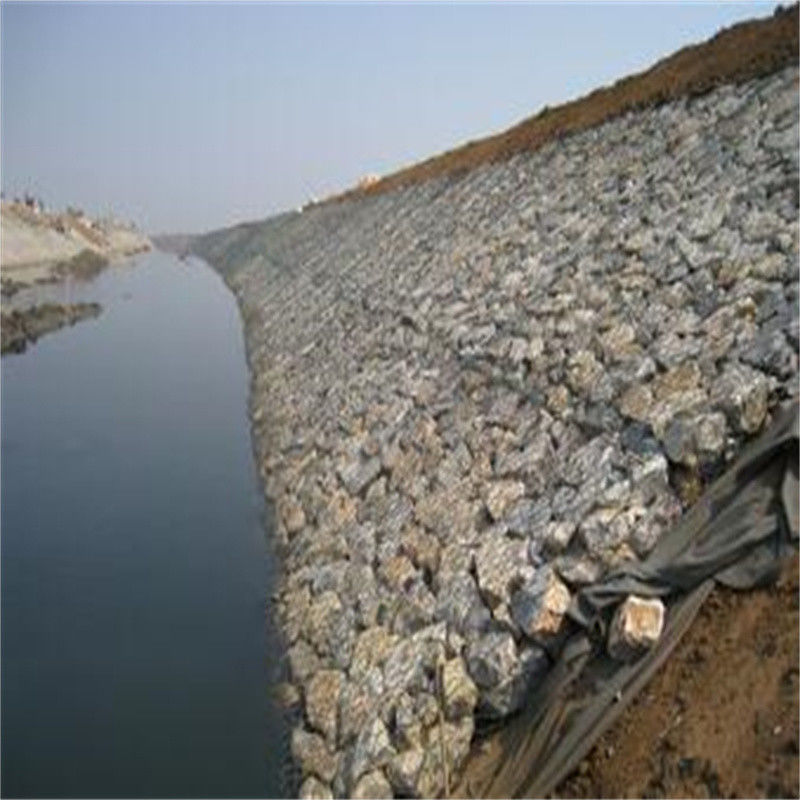

  • Civil Engineering: Riverbank stabilization, highway embankments
  • Architecture: Retaining walls, sound barriers, decorative façades
  • Disaster Prevention: Flood control barriers, landslide mitigation systems
  • Mining: Tailings dam reinforcement, slope retention

Customization Services

  • Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
  • Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
  • Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
gabion specifications Mesh hole modle
  8x10cm 6x8cm
Length(m) Width(m) Height(m) Galvanized or PVC coated Galvanized or PVC coated
  Mesh diameter Zinc Mesh diameter Zinc
2 1 1 2.7mm >245g/m² 2.0mm >215g/m²
3 1 1 Side wire diameter Zinc Side wire diameter Zinc
4 1 1 3.4mm >265g/² 2.7mm >245g/m²
6 1 1 Binding wire diameter of 2.7m Binding wire diameter of 2.0m


Stone Gabion Cages Basket With Gabion Bags Defensive Barriers For Protection 2

Usage
Flood Control Retaining Wall
Feature
Corrosion Resistance
Advantage
Easy-to-install
Characteristics
High Tensile Strength

Packaging and delivery

Selling Units:
Single item
Single package size:
100X100X5 cm
Single gross weight:
1.250 kg





Stone Gabion Cages Basket With Gabion Bags Defensive Barriers For Protection 3

Tag:

gabion wall baskets,

galvanised gabion baskets,

gabion wire baskets
