Rockfall Netting Protection Gabion Fence Sand Wall For Stone Cage Retaining Wall

     Rockfall Netting Protection gabion fence sand wall For Stone Cage Retaining Wall

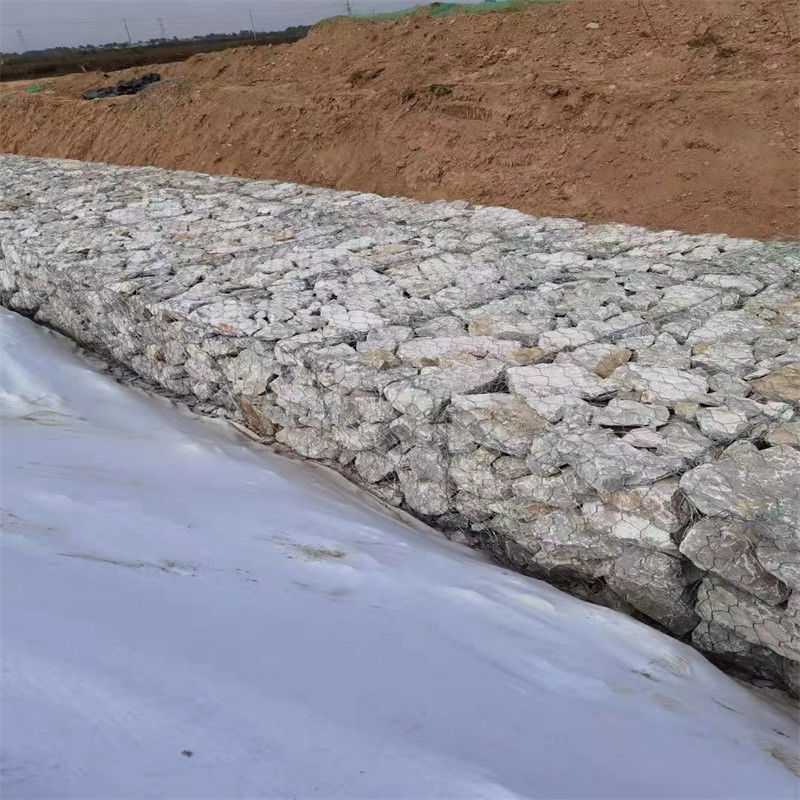

Woven Gabion Retaining Wall

Flexible:
Adaptable to terrain deformation and has good seismic resistance.

1. Product Specifications
Dimensions: 2m x 1m x 1m,4x1x1m (Length x Width x Height)
Material: 3.05mm Galvanized Steel Wire
Mesh Size: 80mm x 100mm
Coating: Hot-dip galvanized, zinc coating weight complies with DPWH standards.
Edge wire diameter: 3.80mm
Binding wire diameter: 2.20mm

 Installation Method

1.) Prepare all installation materials, including panels and binding wire.
2.) Erect each section and install the front, back, and partition panels.
3.) Connect and secure the panels with binding wire.
4.) Fill the gabion baskets with stones, either by hand or using a shovel.
5.) After filling, secure the lid with binding wire.
6. )Assemble the gabion baskets step by step according to the design requirements to complete the project.

Choose our Galvanized Philippine 3.05mm Gabion products to meet your engineering needs while adding unique aesthetic value to your projects. We look forward to collaborating with you to explore the Philippine market.
