Anti Rust Hot Dipped Galvanized Gabion Basket 1x1x1m 3x1x1m

Anti Rust Hot Dipped Galvanized Gabion Basket For Sale In Philippine Market

As leader manufacturer of weave gabion basket and welded gabion basket, anping shuxin wire mesh supplied high quality, fast delivery service.

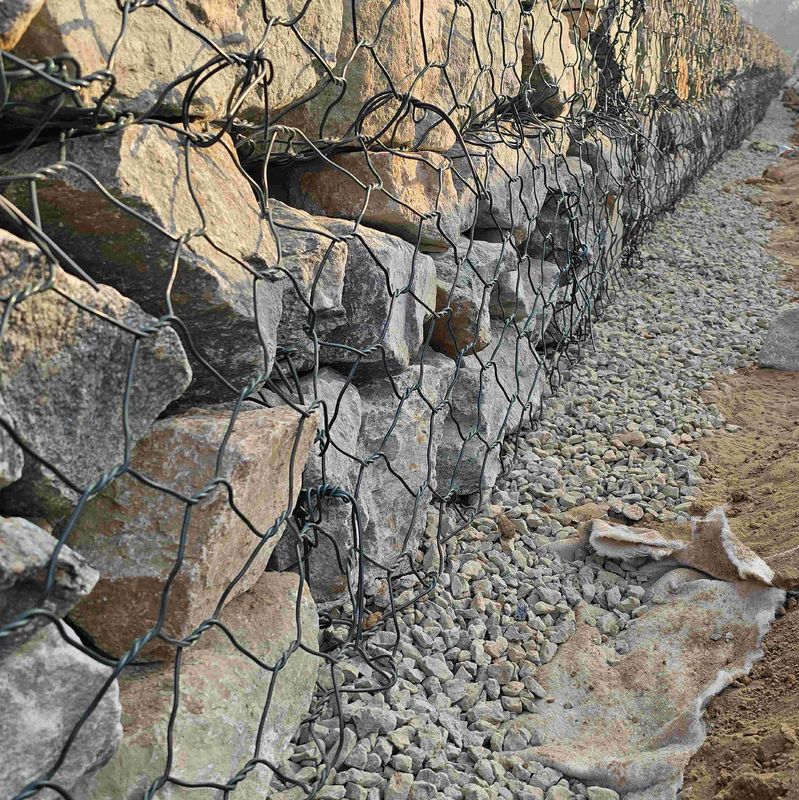

Weave gabion basket called gabion box, mesh gabion retaining wall, made by hot dipped galvanized wire double twisted in to hexagonal mesh hole, usually mesh hole size from 60*80mm, till 100*120mm, when filled with stone inside, it can become retaining wall, can used for flood control wall, river channel protection wall, and slope protection retaining wall.  welded gabion box had same usage with weave one, but has more thicker wire. mesh hole is wedled into rectangle or square shape, use sprial wire connected together.

WEAVE TYPE GABION BASKET SPECIFICATION:

Here are some usage scenarios for welded mesh gabions:

1. Retaining Walls: mesh gabions boc are widely used in the construction of retaining walls for stabilizing slopes, preventing soil erosion, and supporting embankments in both residential and commercial projects.

2. Erosion Control: These gabions are effective in controlling soil erosion along riverbanks, coastlines, and steep slopes by providing a stable, permeable structure that allows water flow while holding back soil.

3. Flood Protection: Welded mesh gabions can be deployed to create flood barriers or levees, protecting vulnerable areas from floodwaters and reducing damage from excessive rainfall or rising rivers.

Technical Specification

• Fabric Type: Hot Dipped Galvanized double twisted wire mesh

• Tensile Strength (wire): 540 to 770 N/mm²

• Available wire thicknesses – 2.0mm, 2.5mm, 2.7mm, 3.05mm

• Mesh Aperture – 60x80mm, 80x100mm, 100x120mm, 110x130mm

• Standard basket lengths – 1000mm, 2000mm or 3000mm, 5000mm etc

• Standard basket widths – 1000mm, 2000mm

• Standard basket heights – 300mm, 500mm, 1000mm

•  Bespoke Sizes Available

Link Accessorier:

Workshop:

Package and Loading:
