WHAT ARE GABIONS?
A gabion cage is a rectangular wire mesh container that is filled with stones, rocks, or other materials. These containers are typically used for construction projects such as retaining walls, erosion control, and landscaping. Gabions can also be used for architectural and decorative purposes.
Gabions are highly durable and versatile, making them a popular choice for a variety of applications. They are designed to withstand harsh environmental conditions, such as heavy rain, strong winds, and freezing temperatures. Additionally, the permeable nature of gabions allows water to flow through the structure, which helps prevent erosion and soil displacement.
Overall, gabions offer an attractive and effective solution for a range of construction and landscaping needs, and are an excellent choice for those seeking a long-lasting and environmentally-friendly solution.
As leader manufacturer of weave gabion basket and welded gabion basket, anping shuxin wire mesh supplied high quality, fast delivery service.

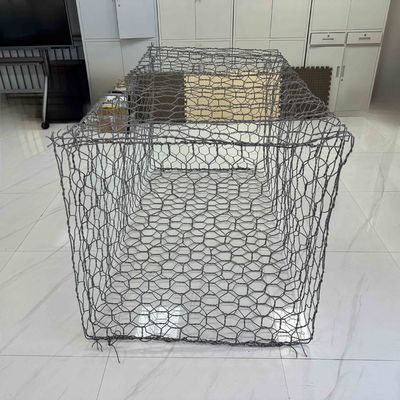

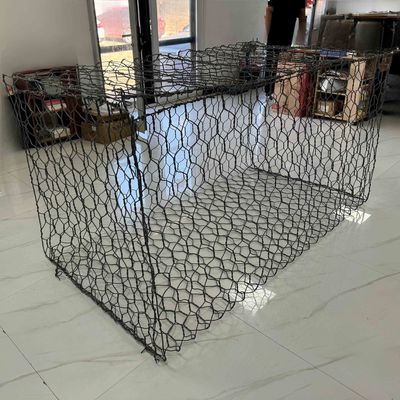

Weave gabion basket called gabion box, mesh gabion retaining wall, made by hot dipped galvanized wire double twisted in to hexagonal mesh hole, usually mesh hole size from 60*80mm, till 100*120mm, when filled with stone inside, it can become retaining wall, can used for flood control wall, river channel protection wall, and slope protection retaining wall. welded gabion box had same usage with weave one, but has more thicker wire. mesh hole is wedled into rectangle or square shape, use sprial wire connected together.
WEAVE TYPE GABION BASKET SPECIFICATION:
| Material |
Galvanized Steel Wire, Galfan Steel Wire/Zinc-5%Aluminum Wire |
| Wire Diameter |
2.0mm to 3.05mm |
| Aperture |
60*80cm, 80*100cm, 100*120cm |
| Gabion Box Size |
100*100*100 cm, 200*100*100 cm, 300*100*100 cm, 600*200*30 cm etc. |
| Finish |
Hot Dipped Galvanized; Heavy Zinc Coating;Galfan Coating;PVC Coated. |
| Normal Box Size(cm) |
Diaphragms |
Capacity (m3) |
Mesh Size(mm) |
| 200x100x100 |
1 |
2 |
60×80 or 18×100 |
| 300x100x100 |
2 |
3 |
| 400x100x100 |
3 |
4 |
| 500x100x100 |
4 |
5 |
| 600x100x100 |
5 |
6 |
| 600x200x30 |
5 |
3.6 |
| 200x100x50 |
1 |
1 |
| 300x100x50 |
2 |
1.5 |
| Other sizes can be customized. |
Here are some usage scenarios for welded mesh gabions:
-
Retaining Walls: mesh gabions boc are widely used in the construction of retaining walls for stabilizing slopes, preventing soil erosion, and supporting embankments in both residential and commercial projects.
-
Erosion Control: These gabions are effective in controlling soil erosion along riverbanks, coastlines, and steep slopes by providing a stable, permeable structure that allows water flow while holding back soil.
-
Flood Protection: Welded mesh gabions can be deployed to create flood barriers or levees, protecting vulnerable areas from floodwaters and reducing damage from excessive rainfall or rising rivers.
Technical Specification
-
Fabric Type: Hot Dipped Galvanized double twisted wire mesh
-
Tensile Strength (wire): 540 to 770 N/mm²
-
Available wire thicknesses – 2.0mm, 2.5mm, 2.7mm, 3.05mm
-
Mesh Aperture – 60x80mm, 80x100mm, 100x120mm, 110x130mm
-
Standard basket lengths – 1000mm, 2000mm or 3000mm, 5000mm etc
-
Standard basket widths – 1000mm, 2000mm
-
Standard basket heights – 300mm, 500mm, 1000mm
-
Bespoke Sizes Available
