Galvanized Gabion Wall Retaining Wall For River Protection Project On-site

galvanized gabion retaining wall fence for gabion basket river protection project on-site

A gabion retaining wall is a structure made of wire baskets filled with stones, used to support soil and prevent erosion. They are a type of gravity retaining wall, relying on their weight and the interlocking of stones for stability. Gabion walls are known for their permeability, allowing water to drain through, and their flexibility, which can be beneficial in areas with shifting ground.

Here's a more detailed look at gabion retaining walls:

Key Features:

# Construction:
Gabion walls are built by stacking wire mesh baskets (gabions) filled with rocks or other durable materials like broken concrete.

# Drainage:
Their porous nature allows for excellent drainage, preventing water buildup and reducing hydrostatic pressure behind the wall.

# Flexibility:
Gabions can adapt to ground movement and settlement, making them suitable for areas with unstable soil or seismic activity.

# Aesthetics:
The natural look of stone can be aesthetically pleasing, and gabions can be customized with different stone types and sizes.

# Erosion Control:
They are effective at preventing soil erosion on slopes and along waterways.

# Cost-effectiveness:
Gabions are often more cost-effective than traditional retaining wall materials like concrete, especially in areas with readily available stone.

Benefits:

# Durability:
Gabion walls are designed to be long-lasting, with a lifespan that can range from 10 to 75 years depending on the environment.

# Environmental Friendliness:
They can be filled with locally sourced materials, minimizing transportation costs and reducing the carbon footprint.

# Versatility:
Gabions can be used for various applications, including retaining walls, erosion control, landscaping features, and even as supports for bridges.
Considerations:

# Installation:
While relatively easy to construct, gabion walls may require specialized equipment for larger projects.

# Load Capacity:
It's important to consider the load the wall will need to support, especially if it's near buildings or roads.

# Foundation:
In some cases, a concrete foundation may be needed, especially for taller walls or unstable soil conditions.

# Aesthetics:
While natural in appearance, gabions may not be suitable for all architectural styles.

# Overall:
Gabion retaining walls are a practical, cost-effective, and environmentally friendly solution for a variety of retaining and erosion control needs. They are particularly well-suited for areas where drainage and flexibility are important.

Common Gaboin Basket Size :

Product Usage:

• Erosion Control: Woven gabion mesh is frequently used to stabilize slopes and riverbanks, effectively preventing soil erosion by holding back loose earth and allowing for proper water drainage.

• Retaining Walls: This mesh is ideal for constructing retaining walls that not only secure hillside soil but also add an aesthetic, natural look to landscapes, making it popular in both residential and commercial projects.

• Flood Protection: In areas prone to heavy rainfall or flooding, woven gabion mesh forms durable barriers that can divert water flow, thereby reducing the risk of flood damage and protecting nearby infrastructure.

• Coastal Defense: The mesh is used along shorelines to stabilize sandy beaches and cliffs, mitigating the effects of wave action and protecting coastal properties from erosion.

• Road and Highway Embankments: Woven gabion mesh can reinforce road embankments by retaining soil and reducing the likelihood of landslides, ensuring the long-term stability of transportation routes.

• Bridge Abutments and Foundations: In bridge construction, the mesh is applied to strengthen abutments and support foundations, offering a cost-effective solution for reinforcing structural integrity.

Gabion Basket Technical Data as Followed:

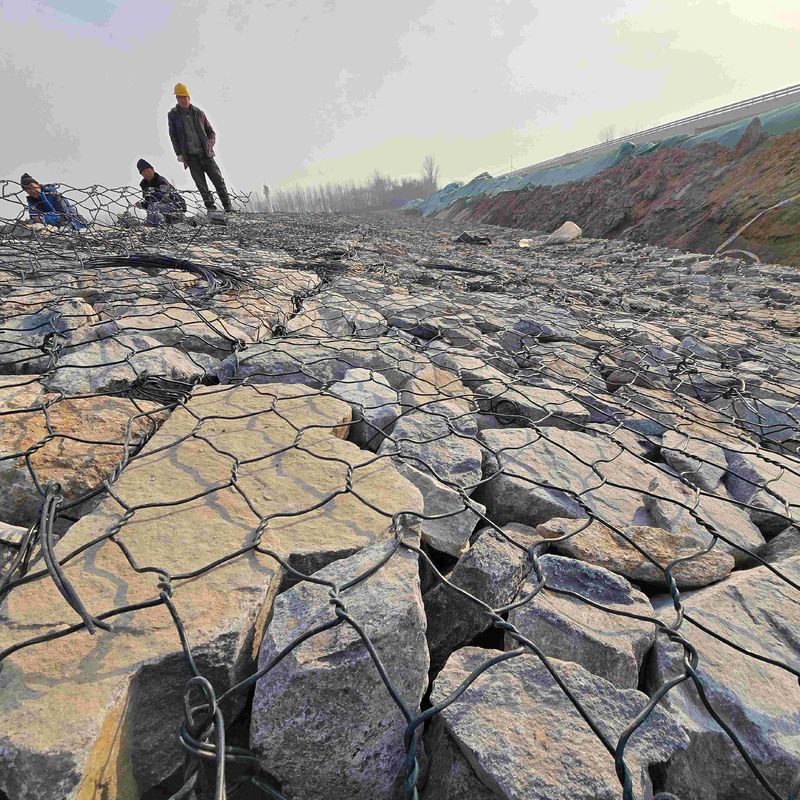

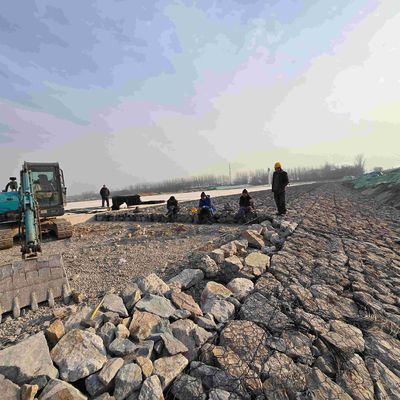

Project Site Picture Show:

Factory overall display:

package & loading:
