Customized Flexible Gabion Retaining Wall Corrosion Resistant

Welded Gabion Retaining Wall Product Summary

 Product Overview

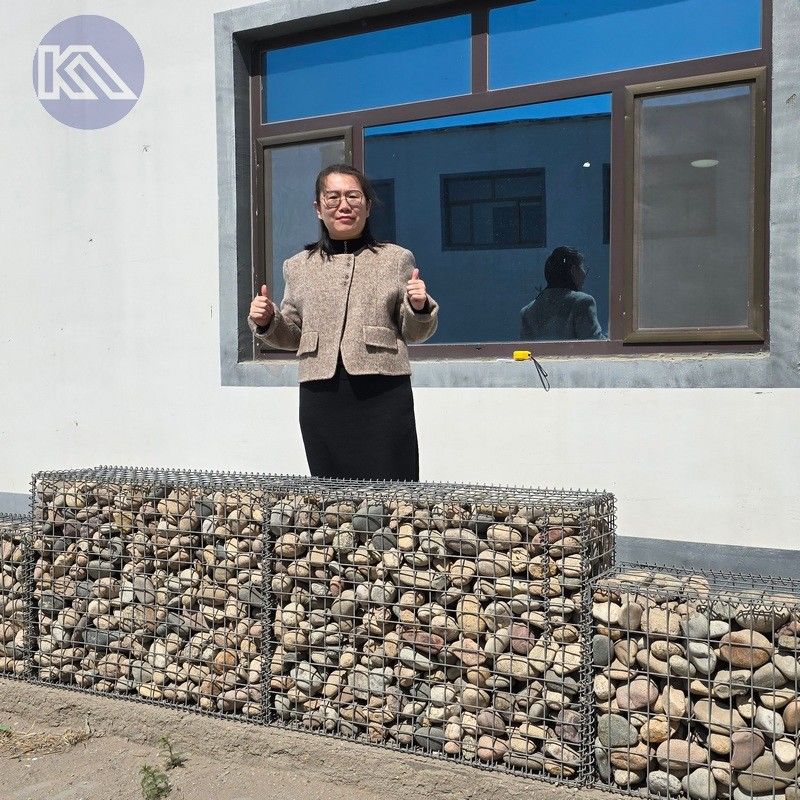

A welded gabion retaining wall is a robust and versatile solution for slope stabilization, erosion control, and landscape enhancement. It consists of welded wire mesh baskets filled with stones or other suitable materials, forming a flexible and permeable structure.

Key Features
-Durability: Constructed from high-quality welded wire mesh, often galvanized or PVC-coated, to resist corrosion and ensure long-term structural integrity.
- Flexibility: The flexible nature of the gabion allows it to accommodate ground movements without cracking or failing, making it suitable for areas prone to soil erosion or seismic activity.
- Permeability: The porous design enables water to drain through, reducing hydrostatic pressure and preventing water-related damage.
- Cost-Effectiveness: Relatively inexpensive to construct and maintain, with affordable materials and a straightforward installation process.
- Aesthetic Appeal: Offers a natural and rugged appearance that can be customized with various stone types and colors to match the surrounding environment.

Construction and Assembly
- Pre-Fabricated and Easy to Assemble: The gabion baskets are shipped flat and partially assembled. They can be quickly unfolded, stood up, and fastened with spiral binders.
- Filling Process**: Typically filled with stones on-site, with a common size range of 3"x3" mesh openings. The filling process is efficient and can be done using machinery.
- Structural Reinforcement: Internal diaphragms and wire stiffeners are used to enhance the rigidity and strength of the gabion, preventing bulging and maintaining shape.

Applications
- Retaining Walls: Ideal for creating gravity walls that use their own weight to resist lateral earth pressures.
- Erosion Control: Effective in preventing soil erosion along riverbanks, slopes, and other vulnerable areas.
- Landscape Design**: Used for decorative purposes, such as architectural wall cladding, providing an aesthetically pleasing and functional solution.

Technical Specifications
- Mesh Size: Commonly available in 3"x3" square mesh openings.
- Wire Diameter: Typically ranges from 3mm to 5mm, depending on the application.
- Basket Sizes: Available in various dimensions, with standard sizes including 3'x3'x3', 6'x3'x3', and larger custom sizes.Environmental and Maintenance Benefits
- Eco-Friendly: Uses natural materials and can be constructed with locally sourced stones, minimizing environmental impact.
- Low Maintenance Virtually maintenance-free, with no need for forms, reinforcements, or curing time.

In summary, welded gabion retaining walls offer a durable, flexible, and cost-effective solution for a variety of applications, combining structural integrity with aesthetic appeal.
