Galvanized Hexagonal Gabion Cages for Seawall Protection (2x1x1m)

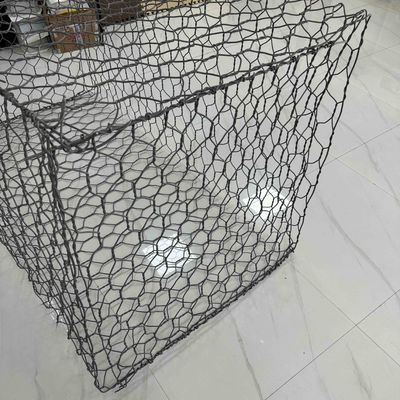

Large Image : Galvanized Hexagonal Gabion Cages for Seawall Protection (2x1x1m)

Product Details:

Place of Origin:	CN
Brand Name:	KN
Certification:	CE ISO SGS COC PVOC
Model Number:	KN-gabion cages

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pc
Price:	USD 35-49
Packaging Details:	pallet
Delivery Time:	15 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 pc per day

Contact Now

Detailed Product Description

Product Name:	Galvanized Seawall Protection Used Hexagonal Gabion Wall/ Gabion Cages	Key Word:	Gabion Basket
Mesh Size:	60mmx80mm, 80mmx100mm, 100mmx120mm	Wicth:	1m 1.2m 1.5m 1.8m 2m Etc
Zinc Coating:	240-275g/m2	Process:	Woven Mesh
Assembly:	Easily Assembled	Edge Wire Diameter:	3.0-4.0mm
Feature:	Corrosion Resistance	Customization:	Available Upon Request
Apertuar:	60x80,80x100,100x120	Finish:	Hot Dipped Galvanized, Or Galfan Coated
Highlight:	Galvanized gabion cages , Hexagonal seawall gabions , 2x1x1m gabion cages

Galvanized Hexagonal Gabion Cages for Seawall Protection (2x1x1m)

Product Specifications

Attribute	Value
Product Name	Galvanized Seawall Protection Used Hexagonal Gabion Wall/ Gabion Cages
Key Word	gabion basket
Mesh Size	60mmx80mm, 80mmx100mm, 100mmx120mm
Width	1m, 1.2m, 1.5m, 1.8m, 2m, etc.
Zinc Coating	240-275g/m²
Process	Woven Mesh
Assembly	Easily Assembled
Edge Wire Diameter	3.0-4.0mm
Feature	Corrosion Resistance
Customization	Available upon request
Aperture	60x80, 80x100, 100x120
Finish	Hot dipped galvanized, or Galfan coated

Product Description

Galvanized seawall protection in the form of hexagonal gabion walls and gabion cages is a highly effective and sustainable solution for coastal defense and erosion control. These structures are crafted from durable, corrosion-resistant wire mesh and filled with locally sourced stones or other aggregates, creating a robust and flexible barrier that can withstand the forces of nature.

The hexagonal shape of the gabion walls and cages provides added strength and stability, allowing them to adapt to various terrain conditions and weather patterns. This versatility makes them ideal for use in a wide range of applications, from protecting shorelines and riverbanks to reinforcing retaining walls and stabilizing slopes.

Key Features

Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Product Advantages

Superior Strength - Heavy-duty double-twisted steel mesh withstands hydraulic pressure

Excellent Flexibility - Adapts to ground settlement without structural damage

High Permeability - 95% water flow reduces hydrostatic pressure

Long Service Life - Corrosion-resistant coating ensures 30+ year durability

Applications

Civil Engineering: Riverbank stabilization, highway embankments
Architecture: Retaining walls, sound barriers, decorative façades
Disaster Prevention: Flood control barriers, landslide mitigation systems
Mining: Tailings dam reinforcement, slope retention

Customization Services

Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
Wire Diameters: 2.2mm - 4.0mm (3.0mm recommended for high-load zones)
Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)

Technical Specifications

Dimensions (LxWxH)	8x10cm Mesh		6x8cm Mesh
Dimensions (LxWxH)	Galvanized or PVC coated	Zinc	Galvanized or PVC coated	Zinc
2x1x1m	2.7mm	>245g/m²	2.0mm	>215g/m²
3x1x1m	3.4mm	>265g/m²	2.7mm	>245g/m²
4x1x1m	Binding wire diameter of 2.7mm		Binding wire diameter of 2.0mm
