Hexagonal Gabion Wall Cages - Hot-Dip Galvanized Steel for Riverbank Protection

Large Image : Hexagonal Gabion Wall Cages - Hot-Dip Galvanized Steel for Riverbank Protection

Product Details:

Place of Origin:	CHINA
Brand Name:	KN
Certification:	ISO CE
Model Number:	4X1X1 2x1x1

Payment & Shipping Terms:

Minimum Order Quantity:	100pc
Price:	USD 17-20
Packaging Details:	pallets
Delivery Time:	7-8 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	5000mw per day

Contact Now

Detailed Product Description

Surface Treatment:	Hot-dipped Galvanized, Pvc Coated	Zinc Coating:	≥ 270g/m²
Size:	2m X 1m X 1m	Application:	Erosion Control, Retaining Walls, Landscaping
Elongation:	≥ 10%	Wire Diameter:	3.0mm
Product_Name:	Gabion Cages	Material:	Galvanized Steel Wire
Durability:	Long-lasting	Tensile Strength:	350-500N/mm²
Mesh Size:	50mm X 50mm	Installation:	Easy And Quick
Connectors:	C Rings	Assembly Method:	Spiral Binding
Package:	Pallet Or In Bundle
Highlight:	Hexagonal Gabion Wall Cages , Hot-Dip Galvanized Gabion Cages , Gabion Cages for Riverbank Protection

Hexagonal Gabion Wall Cages - Hot-Dip Galvanized Steel for Riverbank Protection

Product Overview

Our Hexagonal Gabion Wall System offers engineers, architects, and contractors a resilient, visually striking solution that merges function with form. Ideal for commercial developments, infrastructure embankments, and architectural landscaping, these cages provide exceptional structural integrity and contemporary aesthetics.

Key Specifications

Attribute	Value
Surface Treatment	Hot-dipped galvanized, PVC coated
Zinc Coating	≥ 270g/m²
Size	2m x 1m x 1m
Application	Erosion control, retaining walls, landscaping
Wire Diameter	3.0mm
Mesh Size	50mm x 50mm
Tensile Strength	350-500N/mm²
Connectors	C rings
Assembly Method	Spiral binding
Package	Pallet or in bundle

Key Features

Economical installation - simply fill with stone and seal
Easy construction requiring no special techniques
Exceptional resistance to natural damage, erosion, and adverse weather
Withstands large-scale deformation without collapsing
Promotes plant growth between stones for natural integration
Excellent permeability prevents hydrostatic pressure damage
Space-saving transport - folds flat for shipping
Enables rapid parallel construction for tight deadlines

Technical Parameters

Size	Wire Diameter	Diaphragm	Length	Width	Height	Surface Treatment
6080mm 80100mm 100*120mm	2.0-4.0mm (2.2mm, 2.7mm, 3.0mm common)	1	2m	1m	0.5m	Hot dip galvanized, PVC coated, PE coated, Galfan
		1	2m	1m	1m
		2	3m	1m	0.5m

Applications

Our gabion wall system is widely used in transportation, water conservancy, municipal engineering, landscaping, soil and water conservation projects. Specific applications include road protection, alloy mesh bags, landscape design, retaining walls, bridge protection, coastal defense, embankment and river protection.

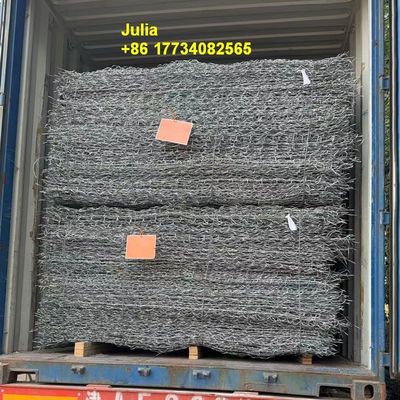

Packaging Options

30-100 sets per bundle, wrapped in quality plastic film
Nude package option available
Wooden tray delivery (approximately 1 ton per tray)

Environmental Benefits

Use of Natural and Recycled Materials

Utilizes locally sourced natural stones with minimal processing and can incorporate recycled construction materials, reducing waste and carbon footprint.

Erosion Control and Soil Stabilization

Effectively stabilizes slopes and shorelines while allowing water permeability to reduce runoff and promote groundwater recharge.

Low Carbon Footprint

Local material sourcing minimizes transportation emissions while energy-efficient installation reduces overall environmental impact.

Biodiversity Enhancement

Creates habitats for small animals and plants while blending naturally with surrounding landscapes.

Durability and Longevity

25+ year lifespan with minimal maintenance requirements, even in harsh coastal or chemically aggressive environments.
