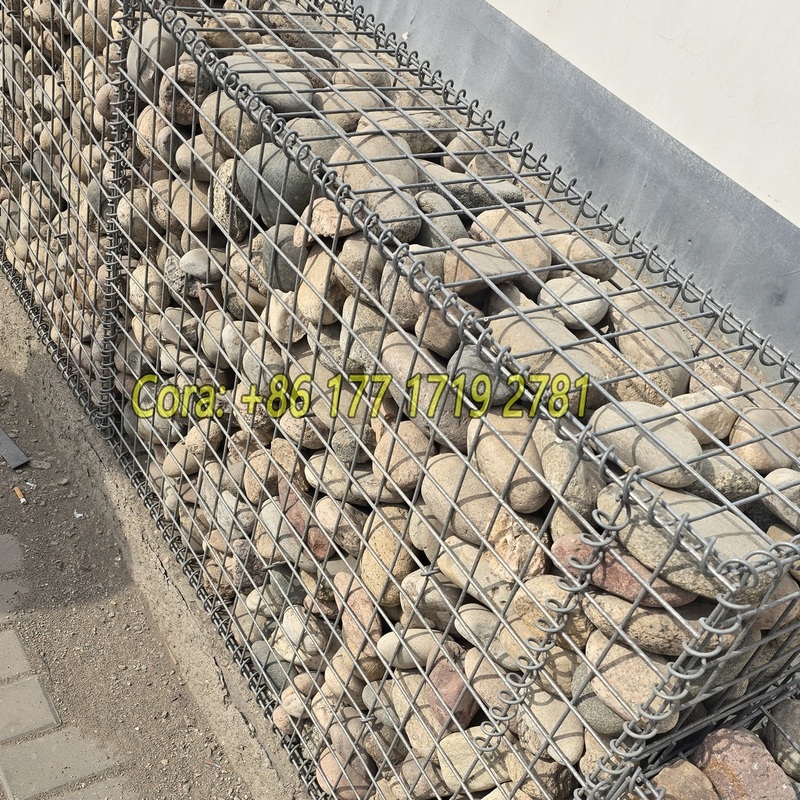

Low Cost Anti Rust River Protection Retaining Wall Use Welded Gabion Wall Baskets

Low Cost Anti Rust River Protection Retaining Wall Use Welded Gabion Wall Baskets

Produced using square mesh hole panel, welded mesh gabions usually have an opening dimension of 75.0mm × 75.0mm; the longitudinal and cross wires are welded together right at their intersection points.

Welded Gabion produces a dimensionally stable mesh. The mesh is produced in standard sheets which are then cut into the required panel sizes (and partially factory-connected) to form the flat pack unit.

Gabion Sizes
It should be noted that it is industry standard for gabions to be quoted as overall nominal sizes. The actual gabion sizing is dependant upon the physical mesh configuration.
Clarification should always be sought from the manufacturer in relation to gabion sizing.
Designation of sizes length x width x height
Gabion standard unit lengths: 975mm or 2025mm
Gabion standard unit widths: 450mm, 675mm, 975mm, 1350mm, 1500mm or 1650mm
Gabion standard unit heights: 450mm and 975mm
Non-standard sizes available in multiples of 75mm on request.

Here are some usage scenarios for welded mesh gabions:

1. Retaining Walls: Welded mesh gabions are widely used in the construction of retaining walls for stabilizing slopes, preventing soil erosion, and supporting embankments in both residential and commercial projects.

2. Erosion Control: These gabions are effective in controlling soil erosion along riverbanks, coastlines, and steep slopes by providing a stable, permeable structure that allows water flow while holding back soil.

3. Flood Protection: Welded mesh gabions can be deployed to create flood barriers or levees, protecting vulnerable areas from floodwaters and reducing damage from excessive rainfall or rising rivers.

4. Landscaping Features: Gabions are also used in landscaping to create decorative features such as garden walls, seating areas, and planters, combining functionality with aesthetic appeal.

Technical Specification

• Fabric Type: Galvanized welded mesh

• Tensile Strength (wire): Welded: 540 to 770 N/mm²

• Weld Strength: 75% of the minimum ultimate tensile strength of the wire

• Available wire thicknesses – 3.0mm, 4.0mm, 5.0mm

• Mesh Aperture – 75x75mm, 50x50mm, 50x100mm, 50x200mm

• Standard basket lengths – 1000mm, 1500mm or 2000mm, 500mm etc

• Standard basket widths – 450mm, 500mm, 300mm, 200mm, 1000mm, 1500mm

• Standard basket heights – 500mm, 1000mm

•  Bespoke Sizes Available
