Metal Gabion Box Retaining Wall River Stone Mesh Pvc Coated Hexagonal Gabion Basket

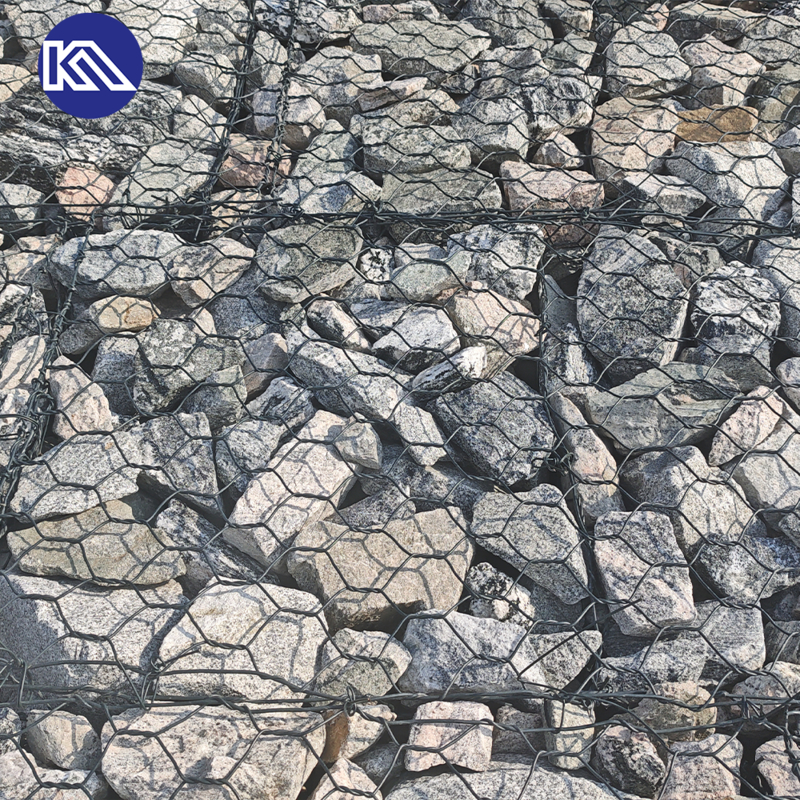

Large Image : Metal Gabion Box Retaining Wall River Stone Mesh Pvc Coated Hexagonal Gabion Basket

Product Details:

Place of Origin:	CN
Brand Name:	KN
Certification:	CE ISO SGS COC PVOC
Model Number:	KN-gabion

Payment & Shipping Terms:

Minimum Order Quantity:	100 pc
Price:	USD 13-20
Packaging Details:	pallet
Delivery Time:	15 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 pc per day

Contact Now

Detailed Product Description

Product Name:	Metal Gabion Box Retaining Wall River Stone Mesh Pvc Coated Hexagonal Gabion Basket	Key Words:	Gabion
Length:	2m-6m	Edge Wire Diameter:	3.0-4.0mm
Zinc Coated:	220-290g/m2	Hole Shape:	Hexagonal
Geotextile Color:	Sand Or Green	Surface Treatment:	Hot-dipped Galvanized, PVC Coated
Highlight:	PVC coated gabion basket , metal gabion retaining wall , hexagonal stone mesh basket

Metal Gabion Box Retaining Wall River Stone Mesh Pvc Coated Hexagonal Gabion Basket

Gabion Baskets (also known as Gabion Boxes or Cages) are durable containers made from double-twisted steel wire mesh. They are engineered for superior performance in harsh marine environments, primarily for constructing stable retaining walls and revetments to combat coastal erosion.

Key Features:

Superior Corrosion Protection: Available in Hot-dip Galvanized, PVC Coated, and Galfan (Zinc-Aluminum Alloy) coatings. These treatments provide exceptional resistance to saltwater, ensuring long service life.
Flexible & Permeable Structure: The flexible design adapts to ground settlement without failure. Their permeable nature reduces hydrostatic pressure and effectively dissipates wave energy.
Standard Specifications: Common mesh sizes include 6x8cm, 8x10cm, and 10x12cm. Standard unit dimensions are 2x1x1m, 1x1x1m, and 3x1x1m.

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

Civil Engineering: Riverbank stabilization, highway embankments
Architecture: Retaining walls, sound barriers, decorative façades
Disaster Prevention: Flood control barriers, landslide mitigation systems
Mining: Tailings dam reinforcement, slope retention

Customization Services

Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)

gabion specifications			Mesh hole modle
			8x10cm		6x8cm
Length(m)	Width(m)	Height(m)	Galvanized or PVC coated		Galvanized or PVC coated
			Mesh diameter	Zinc	Mesh diameter	Zinc
2	1	1	2.7mm	>245g/m²	2.0mm	>215g/m²
3	1	1	Side wire diameter	Zinc	Side wire diameter	Zinc
4	1	1	3.4mm	>265g/²	2.7mm	>245g/m²
6	1	1	Binding wire diameter of 2.7m		Binding wire diameter of 2.0m

Metal Gabion Box Retaining Wall River Stone Mesh Pvc Coated Hexagonal Gabion Basket 0
