Double Twist Gabion Basket 2m X 1m X 1m with 60x80mm Aperture and Ten Years Warranty for Retaining Walls

Large Image : Double Twist Gabion Basket 2m X 1m X 1m with 60x80mm Aperture and Ten Years Warranty for Retaining Walls

Product Details:

Place of Origin:	Hebei ,China
Brand Name:	KN
Certification:	ISO CE
Model Number:	KN-G06

Payment & Shipping Terms:

Minimum Order Quantity:	100 sqm
Price:	USD 0.98-2.69
Packaging Details:	Bulk
Delivery Time:	7-12 days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	30000sqm/week

Contact Now

Detailed Product Description

Spiral Wire:	2.2mm	Application:	Retaining Walls, Erosion Control, Landscaping, Flood Control
Packing:	Packed In Bundles Or On Pallets	Geotextile Color:	Sand Or Green
Key Word:	Gabion Mesh	Mesh Type:	Hexagonal
Height:	0.5m, 1m, 1.5m, 2m	Mesh Size:	60x80,80x100,100x120
Aperture:	60x80mm, 80x100mm, 100x120mm	Warranty:	Ten Years
Hole:	80*100mm	Edge Diameter:	3.0-4.0mm
Weave:	Weave	Mesh Hole:	68cm Or 810cm And So On
Finish:	Galvanized Or PVC Coated
Highlight:	2m X 1m X 1m Gabion Basket , Ten Years Warranty Gabion Basket , 60x80mm Aperture Gabion Basket

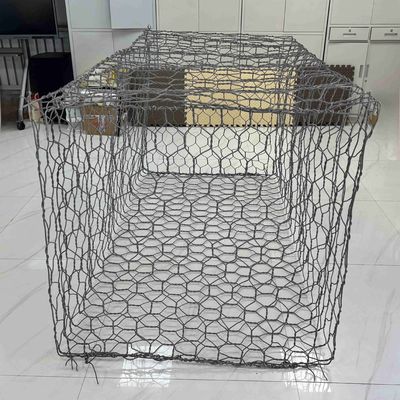

Double Twist Gabion Basket 2m × 1m × 1m - Galvanized PVC Coated Wire Stone Cage

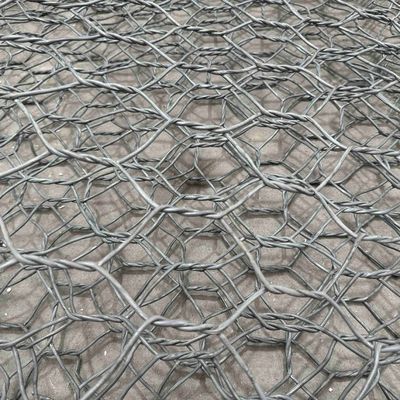

Hexagonal gabion baskets are durable containers constructed from woven wire mesh in a hexagonal pattern. These versatile structures offer exceptional deformation capability, allowing for easy on-site adjustments to meet project specifications. Primarily used for soil and water conservation in river and dam protection applications, their twisted wire construction provides superior tensile strength for heavy-duty use.

Product Specifications

Gabion Box	Wire Diameter	Mesh Hole	Surface Treatment	Tensile Strength	Hot Dip Galvanized
1×1×1m 2×1×1m 3×1×1m 4×1×1m 5×1×1m	2.0mm - 4.0mm	60×80mm 80×100mm 100×120mm	Hot dip galvanized Galfan coated PVC coated	350-550Mpa	40-60g/m² 220-300g/m² (heavy galvanized)
6×2×0.3m					40-60g/m² 220-300g/m² (heavy galvanized)
2×1×0.5m 3×1×0.5m 4×1×0.5m 5×1×0.5m
3×2×0.3m

Primary Applications

Water flow control and flood guidance systems
Flood bank and guiding bank construction
Rockfall prevention barriers
Soil and water conservation projects
Bridge protection structures
Soil reinforcement systems
Coastal protection engineering

Product Advantages

Our gabion solutions deliver reliable performance for demanding applications:

Superior river protection and bank reinforcement
Effective slope restoration capabilities
Environmentally compatible landscape construction
Heavy-duty civil engineering applications

We maintain strict quality control and professional engineering standards to deliver durable, sustainable solutions for projects of all scales.

Warehouse Capacity

With over 30,000 m² of inventory space, we ensure prompt delivery to meet your project timelines and requirements.

Contact our team today for customized gabion solutions and professional project support.
