Galvanized Wire Mesh Retaining Wall Using gabion stone wall 2.7mm River Protection
Introduction of gabion stone wall:

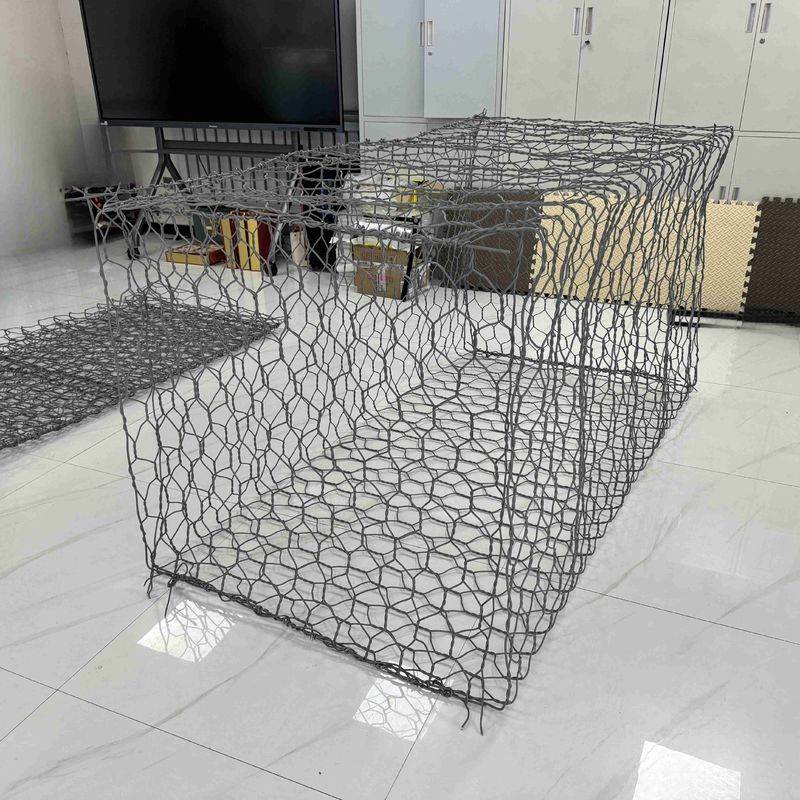

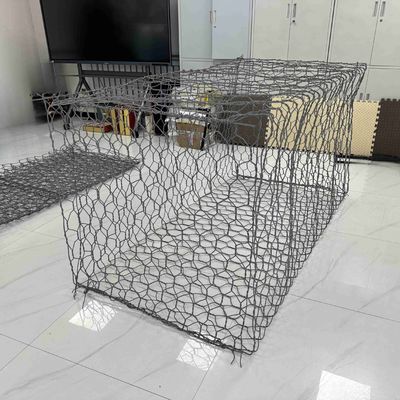

Gabion basket is woven from low-carbon steel wire treated with anti-corrosion technology. The mesh is shaped like a hexagon. The cage has a spacer per meter and is divided into independent units.
Gabion basket is an ecological grid structure. The stone cage net is mechanically woven from low-carbon steel wire with high corrosion resistance, high strength and ductility or PVC-coated steel wire. The box-shaped structure made by the net is the stone cage. The diameter of the low carbon steel wire used varies according to engineering design requirements. Generally between 2.0-4.0mm, the tensile strength of the steel wire is not less than 38kg/m2, and the metal coating weight is generally higher than 245g/m2. The diameter of the edge wire of the gabion mesh is generally larger than the diameter of the wire. The length of the twisted part of the double wire shall not be less than 50mm. To ensure that the metal coating and PVC coating of the twisted part of the steel wire are not damaged.
| Material |
Galvanized low carbon steel wire |
| Weave Type |
Three-twist weave |
| Wire diameter |
Mesh wire:2.0mm-4.0mm |
| Selvedge wire:3.4mm, 3.8mm |
| Lacing wire:2.2mm, 2.5mm |
| Mesh size |
60*80mm, 80*100mm, 90*110mm, 100*120mm |
| Hole Shape |
Hexagonal |
| Gabion size |
1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m, 6*2*0.3m |
| Surface treatment |
HD galvanized, PVC coated |
| Color |
Green,Sliver |
| Characteristics |
Easy to install, rust prevention, corrosion prevention, low cost, high safety and less goods to be transported. |
| Usage |
Water or flood control and guidance, prevention of rock breakage, coastal area protection projects, road protection.river gabion protection project |
| Packaging |
Packed in bundles or pallets or according to customer's requirements. |
Application of gabion stone wall:
Retaining wall
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area
●Control and guide rivers and floods
The most serious disaster of rivers is the destruction of river banks by water, which caused flooding, resulting in massive losses of lives and properties and massive soil erosion. The application of the ecological gabion net structure can permanently protect the river bed and bank.
●Channel canal bed
The construction of the channel involves the stability of the slope and river bed. It can effectively and permanently protect the river bank or riverbed, control the flow of water, prevent water loss, and has excellent effects in environmental protection and water quality maintenance.
●Slope protection
The application of ecological grid structure to river bank protection and slope toe protection is a very successful example. It gives full play to the advantages of ecological grid and achieves the ideal effect that other methods cannot achieve.
Characteristics of gabion stone wall:
(1) Economic. Just fill the stone into the gabion and seal it.
(2) Simple installation. No special technology needed.
(3) Weather proof under natural destroy, corrosion resistant.
(4) No collapse even under big scope of deforming.
(5) Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
(6) Good permeation can prevent the damage by hydrostatics.
(7) Less transport freight. It can be folded together for transport and further installation.
