PVC Coated 1x1x1 1x1x2 Stone Gabion Wire Mesh For Gabion Basket Retaining Wall

Large Image : PVC Coated 1x1x1 1x1x2 Stone Gabion Wire Mesh For Gabion Basket Retaining Wall

Product Details:

Place of Origin:	China
Brand Name:	KN
Certification:	ISO CE
Model Number:	KN-G08

Payment & Shipping Terms:

Minimum Order Quantity:	100 boxes
Price:	USD 2.69-3..88
Packaging Details:	Bulk
Delivery Time:	7-12 days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	300000㎡/month

Contact Now

Detailed Product Description

Features:	Simple Construction,good Permeability,etc.,corrosion Resistance,easy Transportation	Type:	Welded Mesh,Electric Wire Mesh,Wire Cloth,galvanized Gabion Mesh,Chain Link Mesh
Material:	Galvanized Iron Wire,Low-Carbon Iron Wire,pvc Wire,Low Carbon Steel,Galfan Wire	Hole Shape:	Square,Hexagonal,Square Or Hexagonal,rectangle
Wire Gauge:	2.0-4.0mm,0.50mm-4.00mm,0.1~5mm,3/4",2"	Application:	Gabions,Retaining Wall,Shore Protection,Construction Wire Mesh,Garden
Aperture:	50x100mm,60x80mm,100x120mm,75x75mm,1/2"	Surface Treatment:	Hot Dipped Galvanized,Galvanized,Galfan,PVC Coated,hot Dipped Zink Coated
Product Name:	Welded Gabion Basket,1 * 1 * 1m Welded Gabion Retaining Wall,stainless Steel Gabion Basket/welded Gabion Mesh/sale Gabion,Decorative Galvanized Gabion Basket Garden Retaining Wall Water,Gabion Box	Feature:	Easily Assembled,Hot Dipped Galvanized Wire,Strong,electric Galvanized Wire And Galfan Wire,Corrosion Resistance
Color:	Silver,green,white,gray,Dark Green Etc.	Usage:	Protection,garden And So On,family,farm,Island
Packing:	Pallet	Length:	1/0.5M,10m-200m,1-2m,0.1-100m,3-6m
Wire Diameter:	4mm,1.8mm-4.0mm,6mm,2-8mm,2.4-3.5mm	Width:	0.1-2.5m/sheet,0.5-1m,2-3m,as Request
Sample:	Available,welded Gabion Wall Avalaible,Free Sample	Size:	1x0.5x0.5m,Accept Custom,211m 311m 210.5m Or Customized As Client Requirements,Customized,1x1x1m
Package:	As Request,or As Required,or As Per Requirement,with Pallet,Export Worthy
Highlight:	PVC coated gabion wire mesh , 1x1x1 gabion basket retaining wall , stone gabion wire mesh for walls

PVC Coated 1x1x1 1x1x2 Stone Gabion Wire Mesh For Gabion Basket Retaining Wall

Product Description

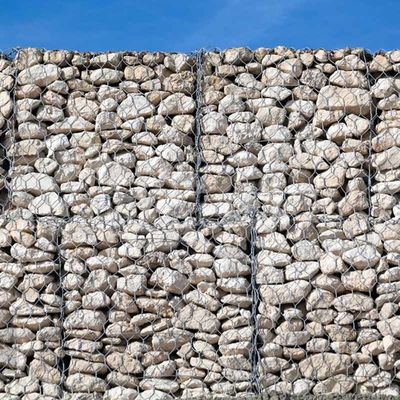

Gabion basket and gabion mattress are stone containers, uniformly partitioned into intemnalcells, interconnected with other containers and filled with stone at site to form flexible.pemmeable, monolithic structures to control and quide water or flood,protect dam or seawall.or used as retaining walls, channel lining and other applications.

PVC Coated 1x1x1 1x1x2 Stone Gabion Wire Mesh For Gabion Basket Retaining Wall 0

Product Specifications

Mesh Size	Wire Thickness	Standard Box Dimensions (L×W×H)	Surface Treatment
60×80mm	Ø2.7mm mesh wire Ø3.4mm selvage wire Ø2.0mm tie wire	1×1×1m, 1.5×1×1m, 2×1×0.5m, 2×1×1m, 3×1×0.5m, 3×1×1m, 4×1×0.5m, 4×1×1m, 4×1.5×1m, 4×2×1m	Hot-dip galvanized Galfan PVC coated
80×100mm	Ø3.0mm mesh wire Ø3.9mm selvage wire Ø2.0mm tie wire	Custom sizes available	Hot-dip galvanized Galfan PVC coated
100×120mm	Ø2.7/3.7mm mesh wire Ø3.4/4.4mm selvage wire Ø2.2/3.2mm tie wire	Custom sizes available	Hot-dip galvanized Galfan PVC coated

The length of the double-wire twisted part shall not be less than 50mm to ensure that the metal coating and PVC coating of the twisted part of the steel wire are not damaged.

PVC Coated 1x1x1 1x1x2 Stone Gabion Wire Mesh For Gabion Basket Retaining Wall 1

PVC Coated 1x1x1 1x1x2 Stone Gabion Wire Mesh For Gabion Basket Retaining Wall 2

Shipping Information

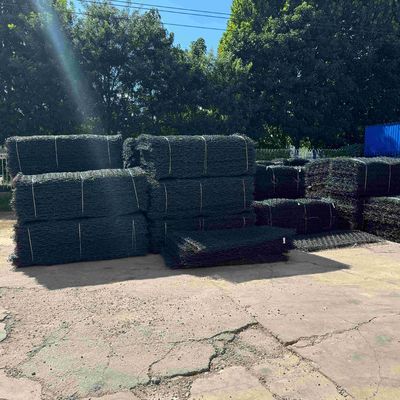

Gabion baskets can be shipped by FCL (Full Container Loading) in bundles
For smaller quantities (LCL - Less than Container Loading), gabion cages are packed in wooden pallets

About Our Company

Hebei KN Wire Mesh Co., Ltd. is located in Anping County, Hebei Province, known as "the hometown of Wire Mesh" and "the Production and Distribution Base of Wire Mesh". Founded in 2005, we have passed ISO9001:2000 international quality system certification.

With strong technical development capability and constant innovation, we research, design, and produce wire mesh products, with 90% of our products exported. Our main products include:

Welded Gabion Box lined with Geotextile
Welded Gabion Box
Weave Gabion Basket
Metal Wire Mesh Pallet Container
Nestainer Storage Racks
Metal Edge Protection Fence
Layer Chicken Cage
Poultry Equipment
Steel Mesh

Our company covers 20,000 square meters with 280 sets of equipment and a staff of 136 people including 28 technicians. We have advanced production technology and rich experience in wire mesh products.
