Heavy Galvanized Gabion Cages with Double-Twist Hexagonal Mesh for River Bank Protection

Large Image : Heavy Galvanized Gabion Cages with Double-Twist Hexagonal Mesh for River Bank Protection

Product Details:

Place of Origin:	CN
Brand Name:	KN
Certification:	CE ISO SGS COC PVOC
Model Number:	KN-Metal Gabions

Payment & Shipping Terms:

Minimum Order Quantity:	100 pc
Price:	USD 10-14
Packaging Details:	pallet
Delivery Time:	15 work days
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	1000 pc per day Metal Gabions

Contact Now

Detailed Product Description

Optional:	PVC (Polyvinyl Chloride) Coated Over Galvanized Wire For Added Protection And Color (green, Black, Grey, Etc.)	Hole Shape:	Hexagonal
Standard Coating:	Heavy Galvanized (zinc Coating ≥ 220 G/m²)	Cage Size:	111M, 112M,113M
Premium Coating:	: Galfan (Zn-5%Al-Mischmetal) Alloy Coating. Offers 2-3 Times Longer Corrosion Resistance Than Standard Galvanization, Ideal For Harsh Environments	Product Wire Material:	Wire Metal Gabions
Wire Diameter:	2.7mm	Aperture:	1mm-100mm
Gabion Box Size:	2x1x0.5m, 2x1x1m, 3x1x0.5m, 4x1x0.2	Wire Diamater:	3mm~6mm Or Custom
Product Name:	Woven Gabion Box River Bank Erosion Control Heavy Duty Galvanized Flood Barrier	Key Words:	Gabion Wall Fence
Highlight:	Heavy Galvanized Gabion Cages , Double-Twist Hexagonal Mesh Gabion Box , River Bank Protection Gabion Wall Fence

Build Modern & Natural Structures With Modular Gabion Cages

Speed up construction and cut costs with our easy-to-assemble gabion systems. Fill with local stone for a durable, sustainable, and visually striking finish in walls, benches, and facades. Free design support included.

Product Overview

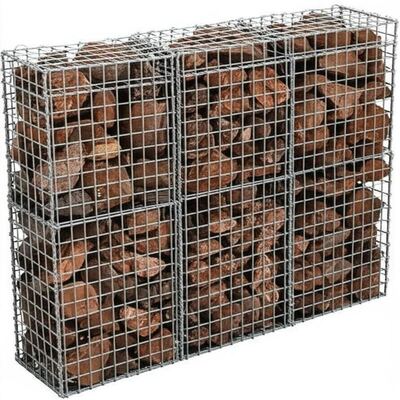

Our gabion cages are engineered wire mesh containers, designed to be filled with stone on-site to create flexible, permeable, and monolithic structures. They are the optimal solution for slope protection, channel lining, retaining walls, and landscape architecture. Manufactured to international standards, they offer unparalleled durability, environmental benefits, and cost-effectiveness for civil and architectural projects.

Technical Specifications

Feature	Specification / Description
Material & Coating	High-Quality Steel Wire: Primarily low-carbon steel wire. • Standard Coating: Heavy galvanized (zinc coating ≥ 220 g/m²) for general use. • Premium Coating: Galfan (Zn-5%Al-Mischmetal) alloy coating. Offers 2-3 times longer corrosion resistance than standard galvanization, ideal for harsh environments. • Optional: PVC coated over galvanized wire for added protection and color (green, black, grey, etc.).
Mesh Type	Double-Twist Hexagonal Mesh: This self-healing mesh will not unravel even if a wire is cut, ensuring structural integrity. Standard hexagonal openings.
Common Sizes (Gabion Box)	Customizable. Common dimensions (L x W x H): • 2.0m x 1.0m x 1.0m • 3.0m x 1.0m x 1.0m • 4.0m x 1.0m x 0.5m • 2.0m x 1.0m x 0.5m (Other sizes available upon request)
Common Sizes (Gabion Mattress)	Thinner units for channel lining and slope paving: • 3.0m x 2.0m x 0.3m • 4.0m x 2.0m x 0.3m • 6.0m x 2.0m x 0.3m
Mesh Opening	Common sizes: 60mm x 80mm, 80mm x 100mm, 100mm x 120mm. Sized to prevent stone fill from protruding.
Wire Diameter	Varies based on design requirements: • Mesh Wire: Typically 2.0mm to 3.0mm. • Selvedge Wire: Thicker by 0.5mm-1.0mm for strength. • Lacing/Bracing Wire: Supplied for assembly.
Standards Compliance	Manufactured in accordance with or equivalent to: • European Standard: EN 10223-8:2013 • ASTM Standards: A975-97 (Reapproved) • Other International Specifications

Advantages of Metal Gabion Structures

Superior Durability: Galfan or heavy galvanized coating provides excellent corrosion resistance, ensuring a long service life even in saline or acidic environments.
Flexibility & Strength: The double-twist mesh design allows the structure to settle and adapt to ground movement without failure, offering superior crack resistance compared to rigid concrete.
Permeability & Drainage: Excellent natural drainage eliminates hydrostatic pressure buildup behind the structure, crucial for slope and retaining wall stability.
Eco-Friendliness: Promotes natural vegetation growth within the fill, blending with the environment and improving ecological value.

Metal Gabions Installation Process

Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh
Secure panels by screwing spiral binders through the mesh openings in adjacent panels
Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped
Box gabion filled with graded stone by hand or with a shovel
After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back
When stacking tiers of the welded gabion, the lid of the lower tier may serve as base of the upper tier. Secure with spiral binders and add pre-formed stiffeners to exterior cells before filling with graded stones

Ordering & Delivery Information

Packing: Gabions are supplied knocked down (KD) as flat panels bundled together with lacing wire, shrink-wrapped on pallets for efficient shipping
Delivery Time: Typically 15-30 days after order confirmation, depending on order quantity and specifications
Minimum Order Quantity (MOQ): Usually 1x 20ft container, or negotiable for sample orders
