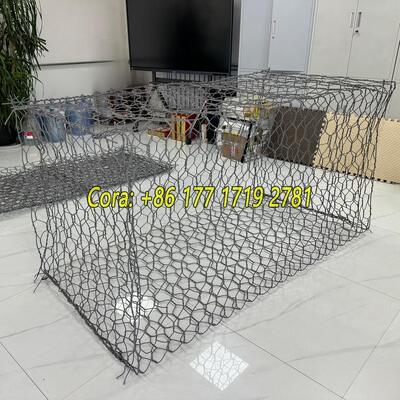

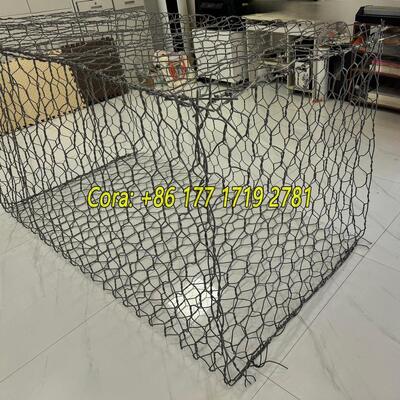

Durable High-Performance Hexagonal Gabion Wire Mesh 3*2*1m Gabion Cage For Retaining Wall
Our 3*2*1m Gabion Cage, featuring high-performance hexagonal double-twisted wire mesh, is a specialized structural solution engineered for retaining wall construction in civil engineering projects. Crafted from premium low-carbon steel wire and reinforced with Zn95% Al5% Galfan coating, this gabion cage delivers exceptional durability, load-bearing capacity, and corrosion resistance. It is designed to stabilize soil, prevent lateral displacement, and form robust retaining structures that blend with the natural environment, making it ideal for residential, municipal, and industrial retaining wall applications.
What are the environmental benefits of using Gabion Mesh Walls?
1. Carbon-Light Construction
• Wire and stone only—no cement, so embodied CO₂ is a fraction of a concrete wall.
• Local stone fill slashes transport emissions; often the material is already on-site from excavation.
2. Instant Habitat Creation
• Free-draining rock face becomes a vertical reef: mosses, lichens, grasses and shrubs colonise within months.
• Cavities between stones shelter insects, lizards and small mammals; birds use the ledges for nesting.
3. Water-Smart Engineering
• Permeable structure eliminates hydrostatic pressure and surface runoff, recharging groundwater instead of dumping it into storm drains.
• Filters sediments and slows peak flows, reducing downstream erosion and flood risk.
4. Soil & Slope Healing
• Root systems from colonising plants knit rock and soil together, increasing shear strength year after year.
• Terraced gabions turn eroding slopes into productive micro-gardens or pollinator strips.
5. 100 % Recyclable at End-of-Life
• Galvanised-PVC wire is steel—fully recyclable.
• Stone fill can be reused on-site or returned to nature; no landfill waste.
6. Chemical-Free Longevity
• Triple-sealed zinc + UV-proof PVC skin prevents rust without paints or solvents, avoiding leachates into soil and waterways.
Product Specification:
| Regular Size |
Mesh Size |
|
Length
(m)
|
Width
(m)
|
Height
(m)
|
8cm * 10cm |
6cm * 8cm |
| Galvanized or PVC Coated |
Galvanized or PVC Coated |
| Mesh Wire |
Zinc Wire |
Mesh Wire |
Zinc Wire |
| 2 |
1 |
1 |
2.7mm |
＞245g |
2.0mm |
＞215g |
| GABION BOX |
| 3 |
1 |
1 |
Edge Wire |
Zinc Weight |
Edge Wire |
Zinc Weight |
| 4 |
1 |
1 |
3.4mm |
＞265g |
2.7mm |
＞245g |
| 6 |
1 |
1 |
Lance Wire: 2.2mm |
Lance Wire: 2.0mm |
Product Usage:
-
Erosion Control: Woven gabion mesh is frequently used to stabilize slopes and riverbanks, effectively preventing soil erosion by holding back loose earth and allowing for proper water drainage.
-
Retaining Walls: This mesh is ideal for constructing retaining walls that not only secure hillside soil but also add an aesthetic, natural look to landscapes, making it popular in both residential and commercial projects
-
Flood Protection: In areas prone to heavy rainfall or flooding, woven gabion mesh forms durable barriers that can divert water flow, thereby reducing the risk of flood damage and protecting nearby infrastructure.
-
Coastal Defense: The mesh is used along shorelines to stabilize sandy beaches and cliffs, mitigating the effects of wave action and protecting coastal properties from erosion.
-
Road and Highway Embankments: Woven gabion mesh can reinforce road embankments by retaining soil and reducing the likelihood of landslides, ensuring the long-term stability of transportation routes.
-
Bridge Abutments and Foundations: In bridge construction, the mesh is applied to strengthen abutments and support foundations, offering a cost-effective solution for reinforcing structural integrity.
Gabion Basket Technical Data as Followed:
| Technical Data List |
| Parameter |
Description |
Typical Value / Range |
| Material |
Base material used for constructing the mesh |
HDP/Galvanized Wire, PVC Wire |
| Coating |
Surface treatment for enhanced corrosion resistance |
Galvanized, HDP Galvanized, PVC Coated |
| Wire Diameter |
The thickness of the wires used in the mesh |
Mesh Wire: 2.0~3.05mm
Selvage Wire: 2.4~4.0mm
Tie Wire: 2.0~2.4mm
|
| Mesh Opening Size |
The size of the openings between wires, determining the size of stones that can be contained |
60*80mm, 80*100mm, 100*120mm,120*150mm
|
| Overall Dimensions |
Standard Gabion Roll and Gabion Basket Size |
Gabion Roll Width: 1~4m
Gabion Basket: 1*1*1m,2*1*1m,3*1*1m,4*1*1m,,5*1*1m,6*1*1m,
|
| Lifespan |
Expected service life under normal installation and maintenance conditions |
Generally 6~20 years, depends on environment.
|
Option Metal Choice:
1) Galvanized Wire: zinc weight can be from 40g to 280g per square meter
2) Aluminum-Zinc Coated Wire(Alu 5% or Al 10%):zinc weight can be from 200g to 500g per square meters.
