Gabion Basket And Heavy Hexagonal Gabion Wire Netting Retaining Wall

Large Image : Gabion Basket And Heavy Hexagonal Gabion Wire Netting Retaining Wall

Product Details:

Place of Origin:	CN
Brand Name:	KN
Certification:	CE ISO SGS COC PVOC
Model Number:	KN-gabion

Payment & Shipping Terms:

Minimum Order Quantity:	100 pc
Price:	USD 13-20
Packaging Details:	pallet
Delivery Time:	15 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 pc per day

Contact Now

Detailed Product Description

Product Name:	Gabion Basket And Heavy Hexagonal Gabion Wire Netting Retaining Wall	Key Words:	Gabion
Length:	2m-6m	Edge Wire Diameter:	3.0-4.0mm
Zinc Coated:	220-290g/m2	Hole Shape:	Hexagonal
Surface Treatment:	Galvanized Or PVC Coated	Mesh Hole:	7575mm Or 76.2mm76.2mm
Consist:	Sprial Wire
Highlight:	heavy hexagonal gabion wire netting , gabion basket retaining wall , galvanized gabion wire mesh

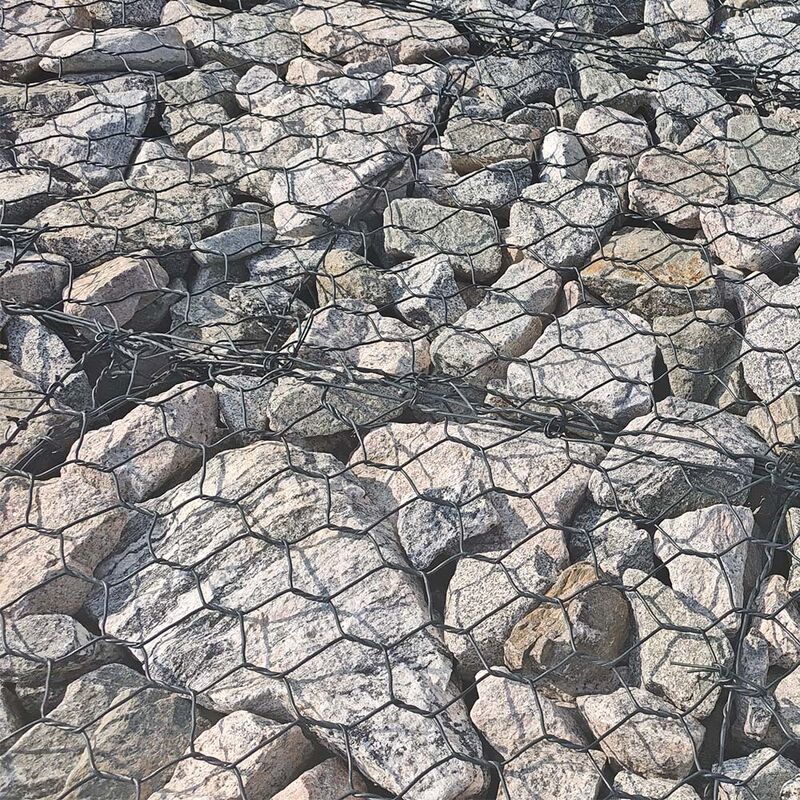

Gabion Basket And Heavy Hexagonal Gabion Wire Netting Retaining Wall

Woven gabions are flexible mesh containers made from steel wire woven into hexagonal patterns. They are primarily used for erosion control, slope protection, and retaining structures in civil engineering projects. The double-twist construction provides durability while allowing natural drainage and vegetation growth. Compared to welded gabions, woven types offer better flexibility and adaptability to ground movement. Key applications include riverbank stabilization, road embankments, and coastal protection works. Their cost-effectiveness and ease of installation make them popular for large-scale environmental engineering projects.

Product Advantages:

Flexibility: Adapts to ground movement without cracking; handles settlement and temperature changes effectively.
Permeability: Natural drainage reduces hydrostatic pressure; prevents water accumulation behind structures.
Eco-friendly: Stone voids allow vegetation growth; supports biodiversity and erosion control.
Durability: Corrosion-resistant coatings provide longevity; withstands harsh environmental conditions.
Cost-effective: Quick installation with local materials; minimal maintenance over decades of service.

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

Civil Engineering: Riverbank stabilization, highway embankments
Architecture: Retaining walls, sound barriers, decorative façades
Disaster Prevention: Flood control barriers, landslide mitigation systems
Mining: Tailings dam reinforcement, slope retention

Customization Services

Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)

gabion specifications			Mesh hole modle
			8x10cm		6x8cm
Length(m)	Width(m)	Height(m)	Galvanized or PVC coated		Galvanized or PVC coated
			Mesh diameter	Zinc	Mesh diameter	Zinc
2	1	1	2.7mm	>245g/m²	2.0mm	>215g/m²
3	1	1	Side wire diameter	Zinc	Side wire diameter	Zinc
4	1	1	3.4mm	>265g/²	2.7mm	>245g/m²
6	1	1	Binding wire diameter of 2.7m		Binding wire diameter of 2.0m

Gabion Basket And Heavy Hexagonal Gabion Wire Netting Retaining Wall 0
