Flexible And Durable Pvc Coated Gabion Retaining Wall Baskets For Water Conservancy

Flexible Pvc Coated Gabion Basket for Water Conservancy and Eco-Projects Hexagonal Wire Mesh for Scour and Corrosion Resistance

• Free samples available (freight to be paid by the customer).
• Ample inventory for quick delivery.
• A variety of styles to choose from.

• We welcome customers' suggestions on prices and products.
• If you have any questions, feel free to contact us via email or phone at any time.

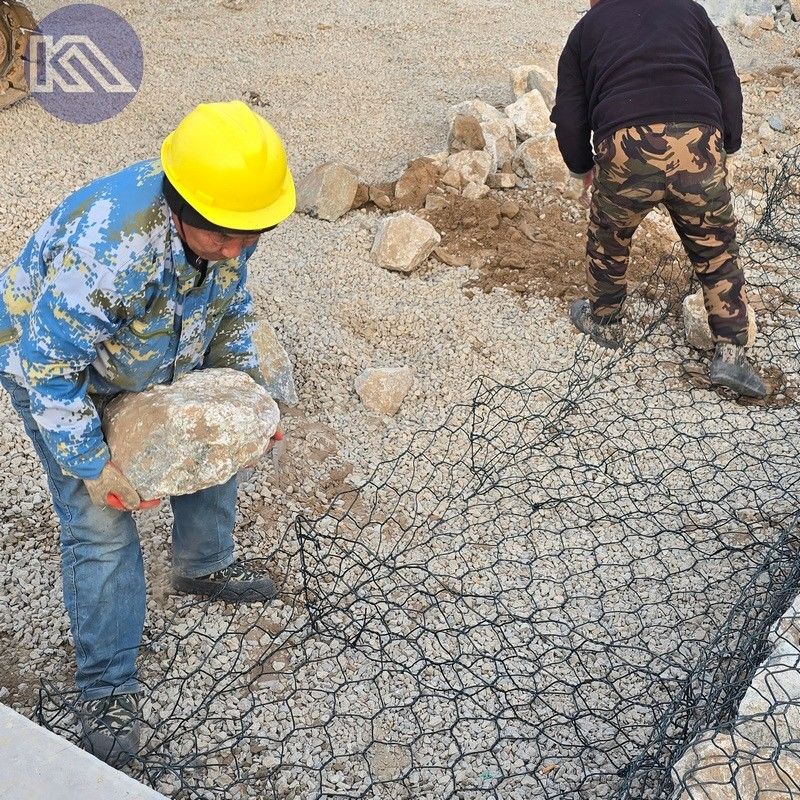

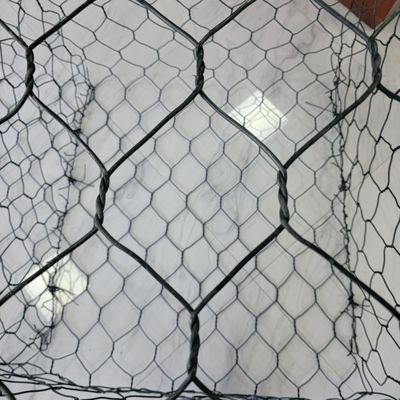

Gabion baskets are containers made of hexagonal double-twisted steel wire mesh. They are typically filled with stones on-site to form a flexible, permeable single structure and are widely used in water conservancy projects and environmental protection fields. They feature modular and stackable designs, allowing them to adapt to different shapes and terrains. Moreover, gabion baskets are known for their scour resistance, deformation resistance, and corrosion resistance.

• Mesh Size: 60×80 mm, 80×100 mm, 100×120 mm, or custom sizes available.
• Dimensions:
  • Length: 1-6 meters
  • Width: 0.23-2 meters
  • Height: 0.3-1 meter
• Wire Diameter: 2.0-4.0 mm.
• Surface Treatment: Galvanizing, hot-dip galvanizing, PVC coating, Galfan coating.

• Mesh Sizes (mm)	Gabion basket dimensions and volumes					Wire diameter
  	L(M)	W(M)	D(M)	Capacity(m³)	Number of diaphragm
  60*80 80*100 100*120	4	2	0.3	2.4	3	Mesh Wire: 2.0mm,2.2mm 2.5mm, 2.7mm,3.05mm. 2.0/3.0mm,2.2/3.2mm 2.5/3.5mm,2.7/3.7mm. selvedge wire: 2.5mm,2.7mm 3.2mm,3.4mm,3.8mm 2.5/3.5mm,2.7/3.7mm 3.2/4.2mm,3.4/4.4mm lacing wire: 2.0mm,2.2mm 2.0/3.0mm,2.2/3.2mm
  	6	2	0.3	3.6	5
  	4	2	0.23	1.84	3
  	6	2	0.23	2.76	5
  	2	1	0.5	1	1
  	3	1	0.5	1.5	2
  	4	1	0.5	2	3
  	2	1	1	2	1
  	3	1	1	3	2
  	4	1	1	4	3
  Other specifications can also be customized processing.

• Cost-effective: Simply fill with stones and seal for use.
• Easy Installation: No special skills required.
• Weather-resistant: Good corrosion resistance in natural environments.
• Eco-friendly: The gaps between stones allow silt to accumulate, which is conducive to plant growth and can blend with the natural environment.
• Low Transportation Costs: Foldable for transportation and then unfolded on-site.

Application Fields

• Water Conservancy Projects: Used for embankments, riverbank protection, and waterway lining to effectively prevent scouring by water flow.
• Environmental Protection: Plays an important role in ecological restoration and soil conservation.
• Road Protection: Protects road foundations, enhancing the stability and durability of roads.
• Coastal Protection: Used in seawalls and port projects to resist wave erosion.
