Erosion Protection Welded Gabion Retaining Walls 200x100x50 Gabion Basket Stone Cage

Erosion Protection Welded Gabion Retaining Walls 200x100x50 Gabion Basket Stone Cage for Garden Fence

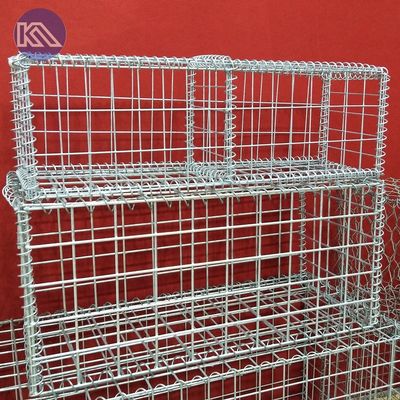

Welded Gabion Wall
Constructed from 4mm diameter galvanized steel wire with PVC coating (0.5mm thickness), this welded mesh system forms modular panels (1.8m x1m x0.3m) for garden boundary walls. The 50x50mm square apertures maintain structural rigidity while accommodating decorative stone infill (20-40mm diameter). Panels interlock via stainless steel clips (304 grade) and include integrated vertical posts (40x40mm hollow sections) every 2 meters for load distribution. A polyester powder-coated finish (RAL 7016 anthracite) provides UV resistance, and the open-grid design enables vertical plant growth integration. Complies with EN 10244-2 for corrosion protection, with optional internal geotextile liners for soil retention in sloped garden terraces.

Technical Specification

• Fabric Type: Galvanized welded mesh

• Tensile Strength (wire): Welded: 540 to 770 N/mm²

• Weld Strength: 75% of the minimum ultimate tensile strength of the wire

• Available wire thicknesses – 3.0mm, 4.0mm, 5.0mm

• Mesh Aperture – 75x75mm, 50x50mm, 50x100mm, 50x200mm

• Standard basket lengths – 1000mm, 1500mm or 2000mm, 500mm etc

• Standard basket widths – 450mm, 500mm, 300mm, 200mm, 1000mm, 1500mm

• Standard basket heights – 500mm, 1000mm

•  Bespoke Sizes Available

Welded Gabion Box is easy-to-install design allows for quick deployment on construction sites, and the modular nature of the gabion boxes makes them highly versatile. Whether used in private, commercial, or public infrastructure projects, the welded gabion boxes provide an effective and sustainable method to control floodwaters, prevent soil erosion, and enhance the landscape's overall stability and security.

Here are some usage scenarios for welded mesh gabions:

1. Retaining Walls: Welded mesh gabions are widely used in the construction of retaining walls for stabilizing slopes, preventing soil erosion, and supporting embankments in both residential and commercial projects.

2. Erosion Control: These gabions are effective in controlling soil erosion along riverbanks, coastlines, and steep slopes by providing a stable, permeable structure that allows water flow while holding back soil.

3. Flood Protection: Welded mesh gabions can be deployed to create flood barriers or levees, protecting vulnerable areas from floodwaters and reducing damage from excessive rainfall or rising rivers.

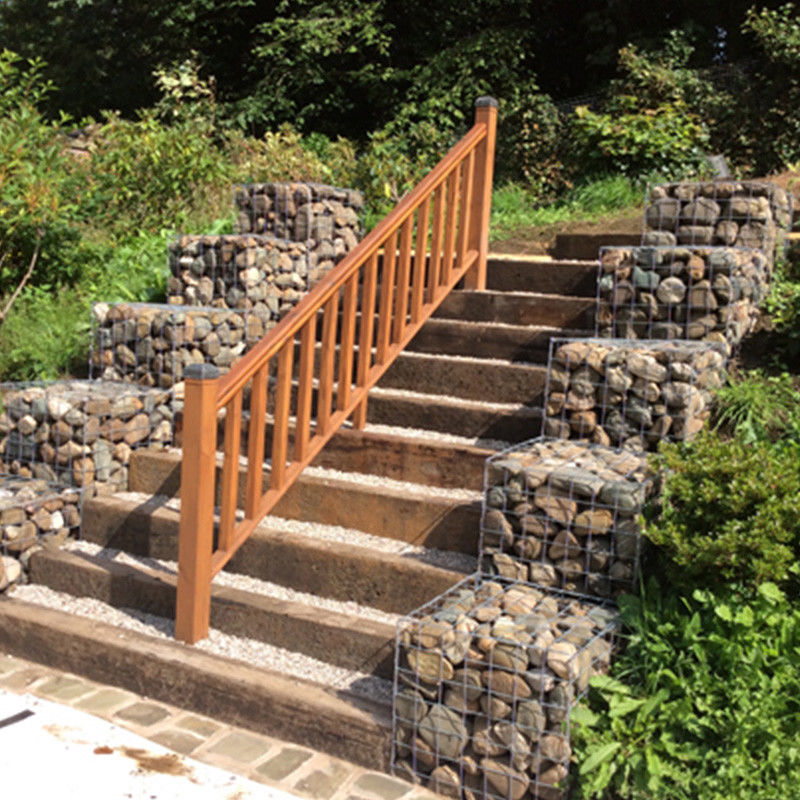

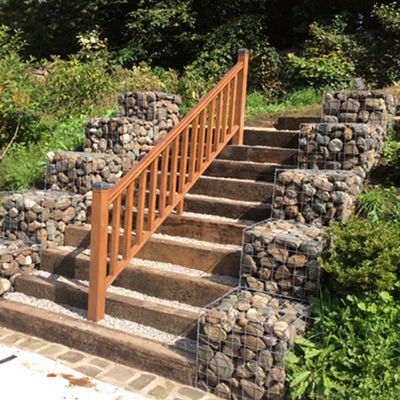

4. Landscaping Features: Gabions are also used in landscaping to create decorative features such as garden walls, seating areas, and planters, combining functionality with aesthetic appeal.
